Key Features
- 7 inch 800 x 480 LCD, 1000 cd/m², 1000:1 contrast, 16:9
- 10-point PCAP touch screen optional
- 1x HDMI, 1x VGA, 1x Composite, versatile inputs
- 3.5 mm ear jack (2ch 48kHz 24-bit); built-in speaker; I/O control
- DC 7 to 24V, ≤4.5 W; -20°C to 60°C operating
- 185 x 118.5 x 29.5 mm; 415 g; VESA 75 mm mount
Product Enquiry
Request a quote or ask a question about the 779. Our UK team will respond promptly.
Technical Data
Display
- Screen size
- 7 inch
- Aspect ratio
- 16:9
- Native resolution
- 800 x 480
- Panel type
- LCD
- Brightness
- 1000 cd/m²
- Contrast
- 1000:1
- Viewing angle
- 120°/140° (H/V)
- Touch screen
- 10-point PCAP (optional)

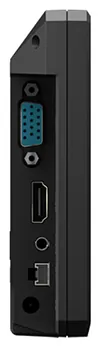

Connections
- Video inputs
- 1x HDMI, 1x VGA, 1x Composite
- Audio
- 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit)
- Additional connections
- 1x Mini USB (touch) (optional)
Video Standards
- HDMI
- 1080p 50/60, 1080i 50/60, 720p 50/60
Operational Features
- Sensors
- Ambient light auto-dimming (optional)
- Image mirroring
- Vertical flip, Horizontal flip
Power
- Input voltage
- DC 7 to 24V
- Power consumption
- ≤4.5 W
Environmental
- Operating temperature
- -20°C to 60°C
- Storage temperature
- -30°C to 70°C

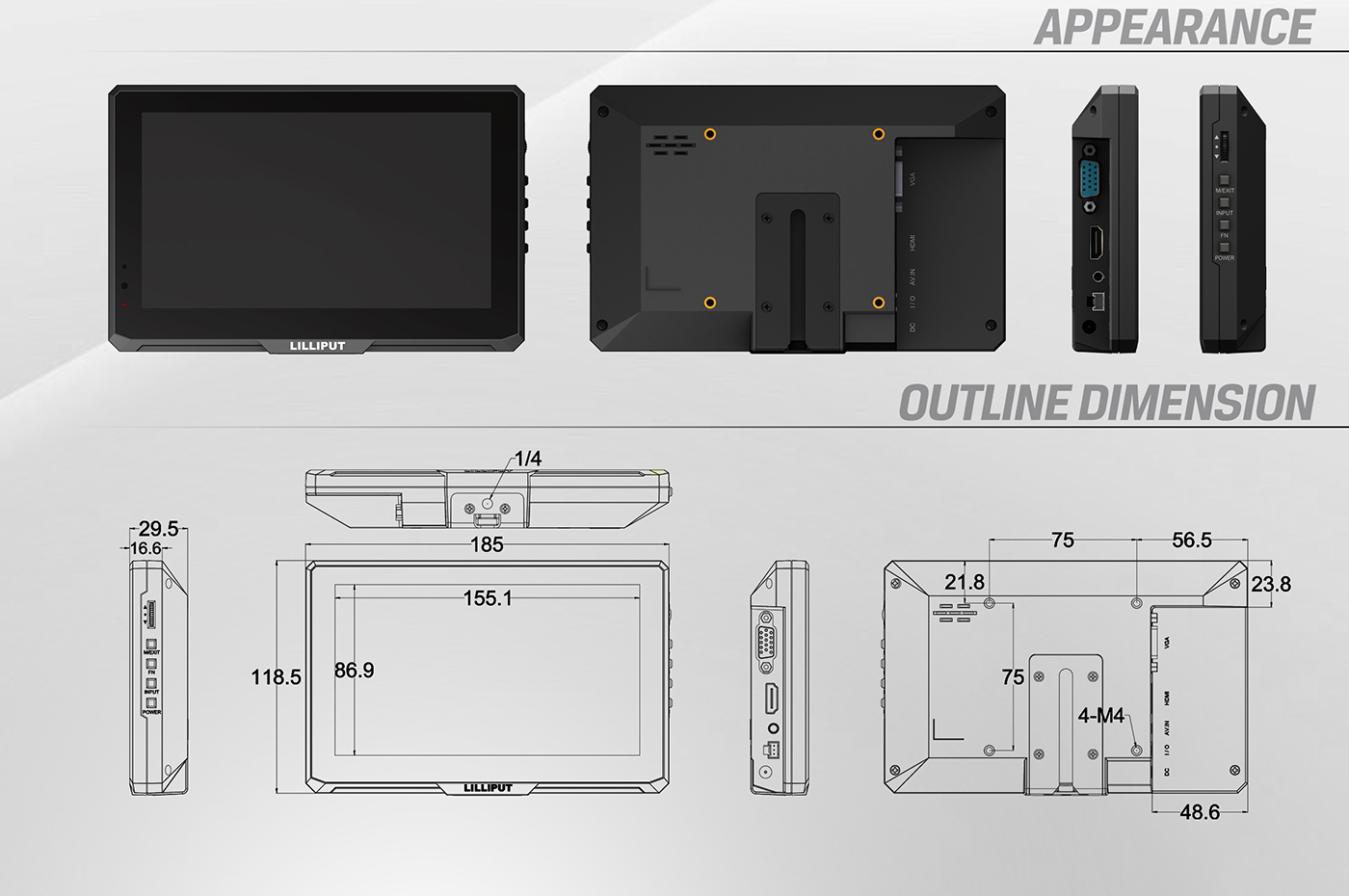

Mechanical
- Dimensions
- 185 x 118.5 x 29.5 mm
- Weight
- 415 g

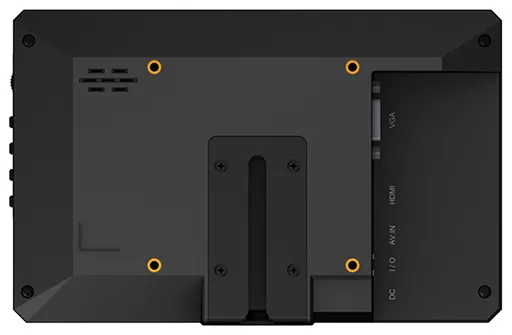

Mounting
- VESA mount
- 75 x 75 mm
Control
- I/O
- 1
Accessories
Included
- 12V DC Adapter
- 589 Bracket
- Remote Control
- HDMI A-A Cable
- VGA Cable
- Composite Cable
- I/O Control Line
- Car Power Adapter
- Manual
Optional
- HDMI to DVI Cable (with touch)
- VESA Folding Bracket
- VESA Battery Plate
Included (with Touch Screen)
- HDMI A-A Cable (with touch)
- VGA Cable (with touch)
Product Downloads
Similar Products
Compare key technical data across similar Lilliput products.
| Technical Data | 779 | 719 | TK701 |
|---|---|---|---|
| Display | |||
| Screen size | 7 inch | 7 inch | 7 inch |
| Aspect ratio | 16:9 | 16:10 | 16:10 |
| Native resolution | 800 x 480 | 1280 x 800 | 800 x 480 |
| Panel type | LCD | LCD | LCD |
| Brightness | 1000 cd/m² | 1000 cd/m² | 1000 cd/m² |
| Contrast | 1000:1 | 800:1 | 500:1 |
| Viewing angle | 120°/140° (H/V) | 170°/170° (H/V) | 140°/120° (H/V) |
| Touch screen | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) |
| LED lifetime | — | 50,000 h | — |
| Connections | |||
| Video inputs | 1x HDMI, 1x VGA, 1x Composite | 1x HDMI, 1x VGA, 1x USB-C | 1x HDMI 1.4b, 1x VGA, 2x Video (RCA) |
| Audio | 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, HDMI 2ch, 3.5 mm ear jack (2ch 48kHz 24-bit), 3.5 mm audio input |
| Additional connections | 1x Mini USB (touch) (optional) | 1x USB-C (touch, video, power) (optional) | 1x Mini USB (touch), 1x Micro USB (upgrade) (optional) |
| Video Standards | |||
| HDMI | 1080p 50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — |
| HDMI 1.4b | — | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| VGA | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| USB Type-C | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — |
| Operational Features | |||
| Sensors | Ambient light auto-dimming (optional) | Ambient light auto-dimming | — |
| Image mirroring | Vertical flip, Horizontal flip | — | — |
| Power | |||
| Input voltage | DC 7 to 24V | DC 9 to 36V | DC 12 to 24V |
| Power consumption | ≤4.5 W | ≤8.5 W (12V) | ≤8.5 W (12V) |
| Environmental | |||
| Operating temperature | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Storage temperature | -30°C to 70°C | -30°C to 80°C | -30°C to 70°C |
| IP rating | — | — | IP64 front panel (IEC60529) |
| Mechanical | |||
| Dimensions | 185 x 118.5 x 29.5 mm | 184.5 x 118.8 x 32 mm | 210 x 131 x 34.2 mm |
| Weight | 415 g | 410 g | 710 g |
| Mounting | |||
| VESA mount | 75 x 75 mm | 75 x 75 mm | — |
| Mounting Screws | — | — | 4x Wall Mount Screws |
| Control | |||
| I/O | 1 | — | — |
Ready to order?
Interactive 7 inch display for commercial and industrial environments. 1000 cd/m². HDMI, VGA, Composite. For industrial and embedded applications.
