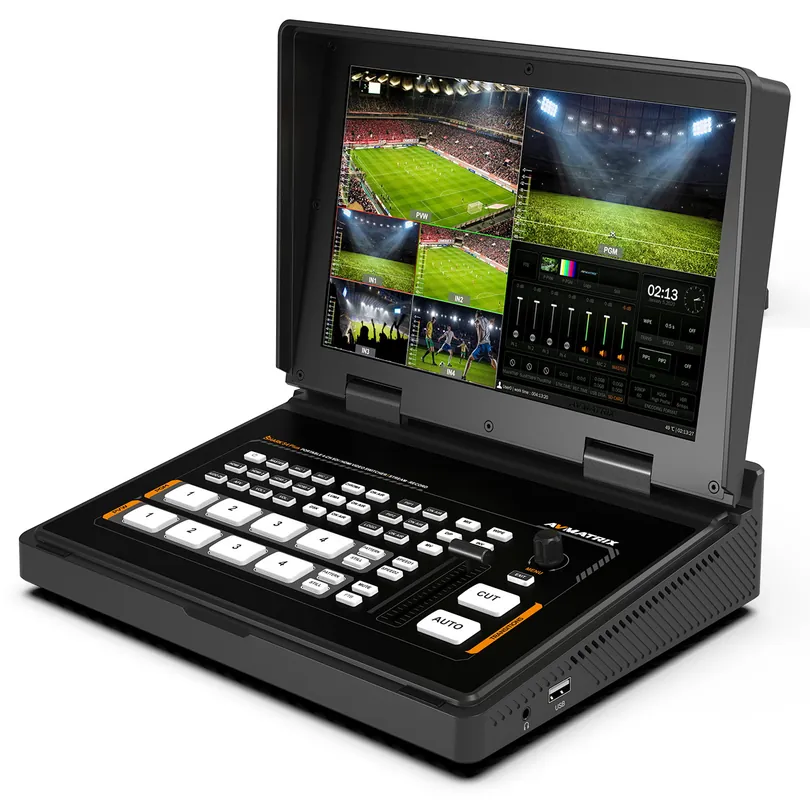

Key Features

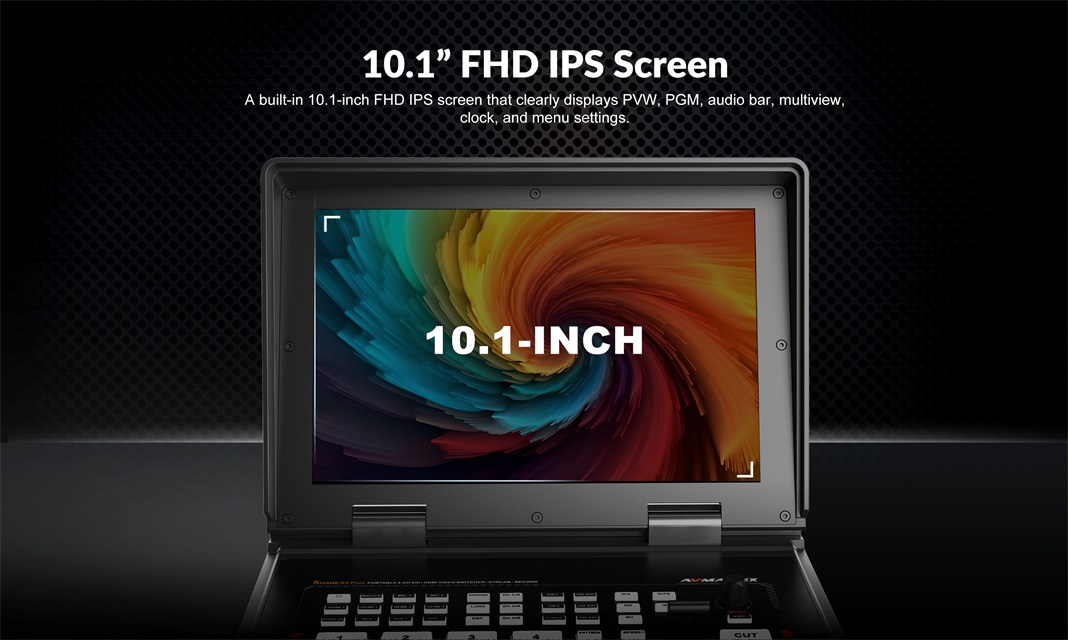

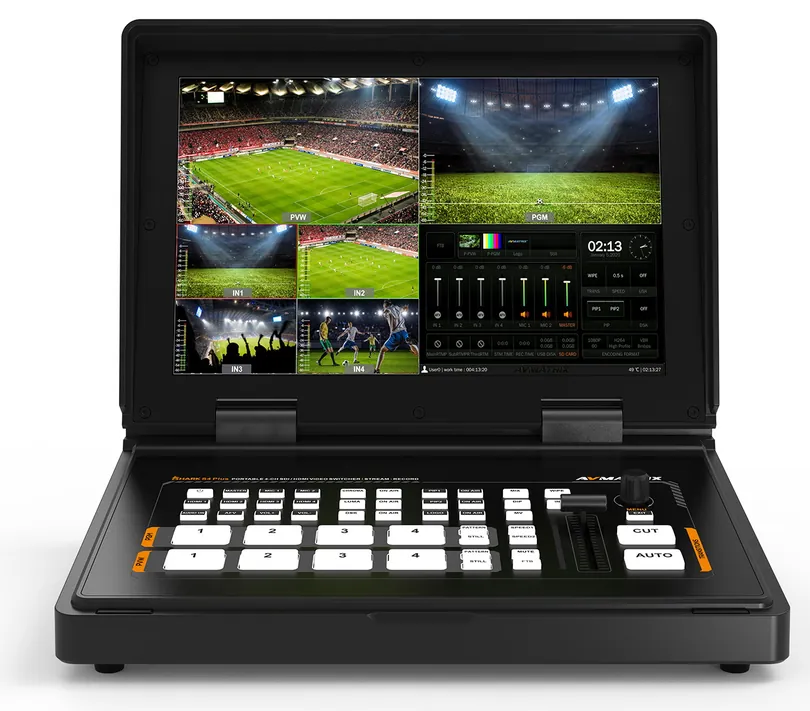

  • Built-in 10.1 inch IPS FHD display for multiview monitoring
  • 2x 3G-SDI + 2x HDMI inputs with multi-format auto signal detection up to 1080p 60

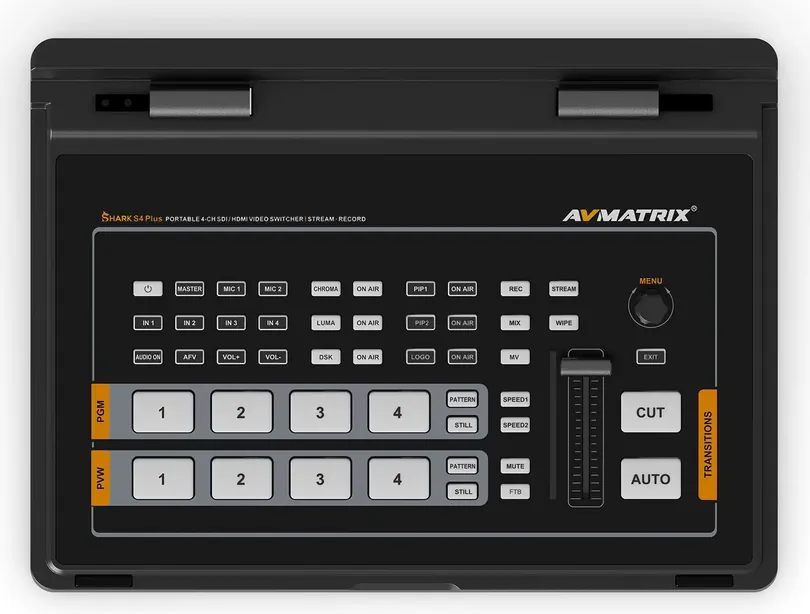

  • T-Bar, AUTO, and CUT transitions with 11x3 WIPE patterns, MIX, DIP, and more

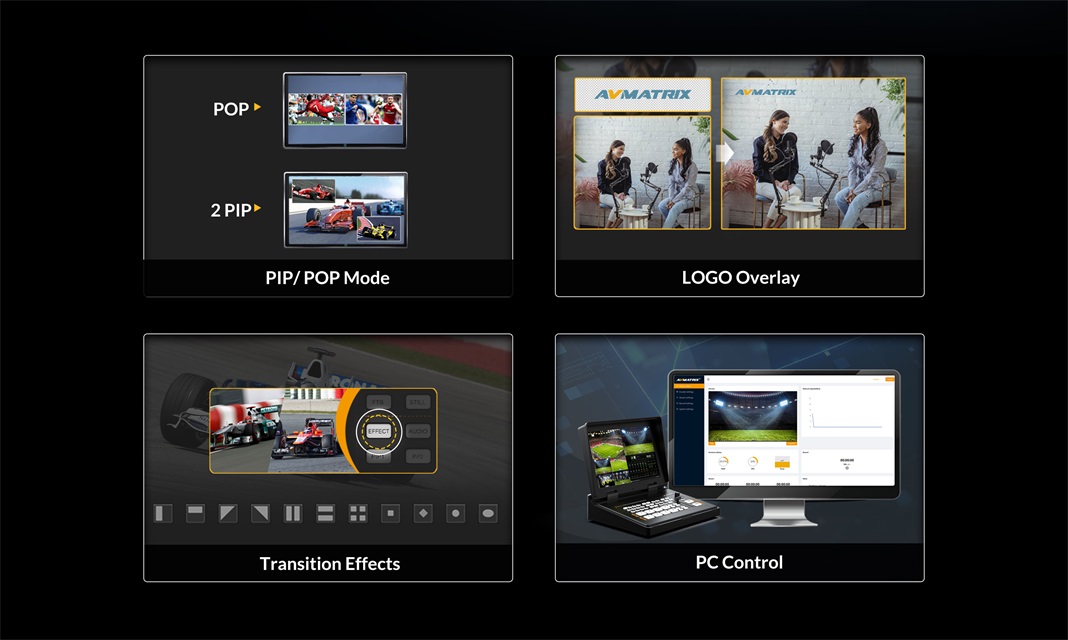

  • Upstream keying (luma, chroma, 2x PIP, POP) and downstream keying (DSK, logo)

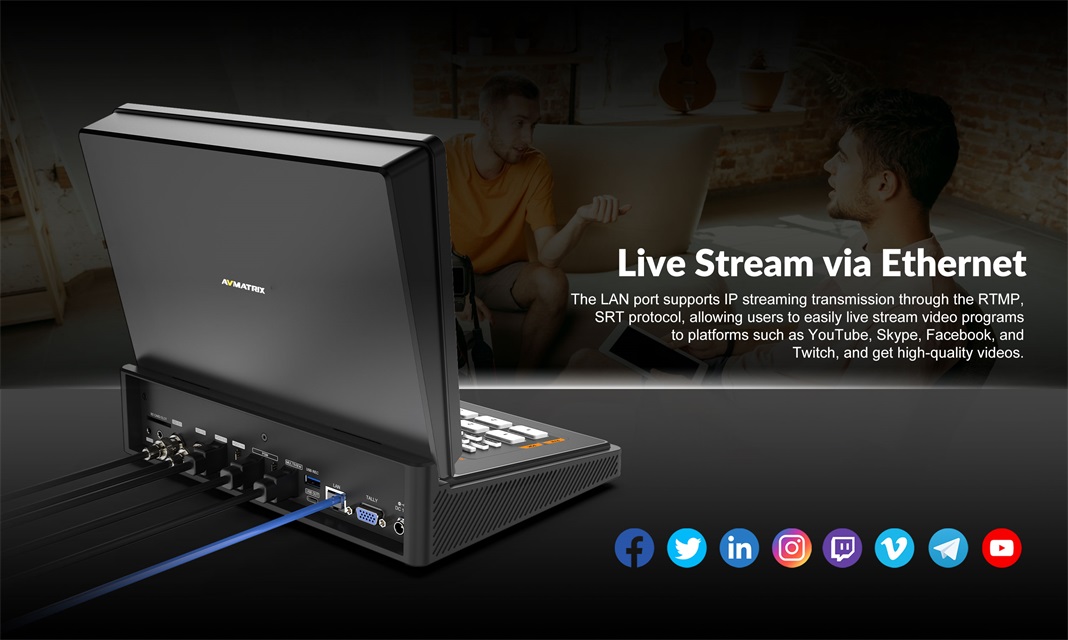

  • RTMP, RTMPS, SRT streaming with encoding bitrate up to 32 Mbps (CBR/VBR)

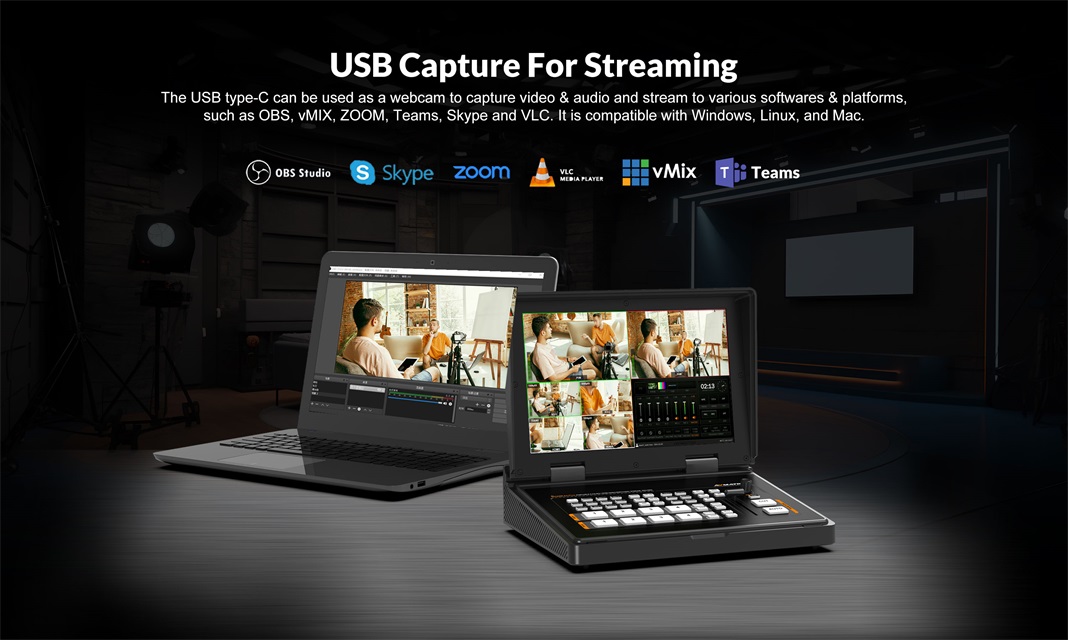

  • USB and SD card recording in MP4/TS; USB Type-C capture output up to 1080p 60

Buy the S4 Plus From an Authorised Reseller

Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the S4 Plus now, or if your country is not listed, browse all authorised resellers here.

Technical Data

Display

Screen size
10.1 inch
Panel type
IPS
Native resolution
1920 x 1080

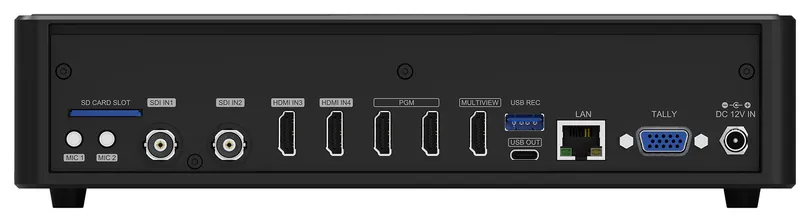

Connections

Video inputs
2x 3G-SDI (BNC), 2x HDMI Type-A
Video outputs

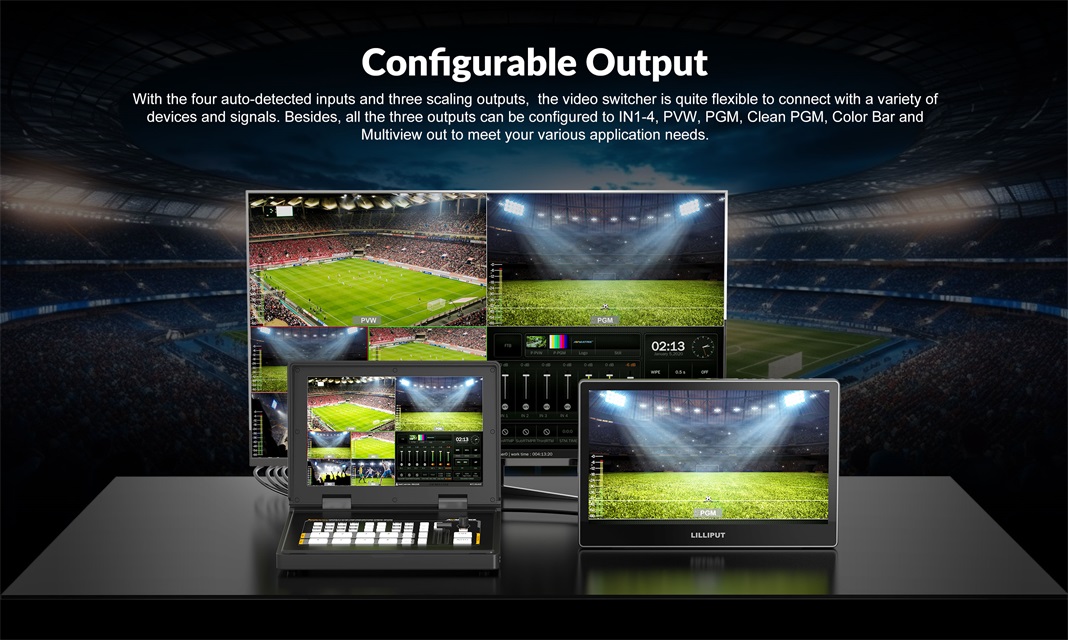

2x HDMI PGM, 1x HDMI Multiview, 1x LAN (RJ45 stream), 1x USB Type-C (capture)

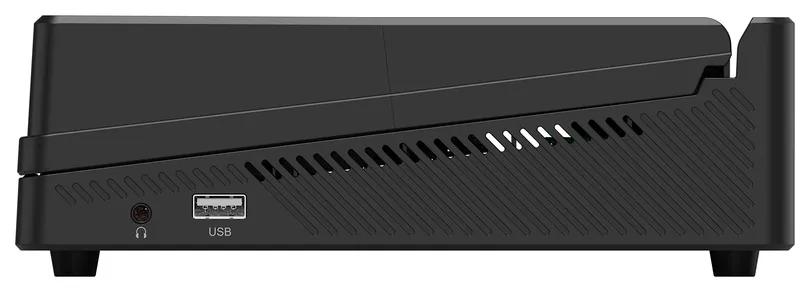

Other interfaces
1x USB-A + SD card slot (record), 1x USB-A (image import and firmware upgrade), 1x Tally (DB-15 GPIO)
Audio
Inputs: 2x MIC/Line (3.5 mm stereo); Outputs: 1x earphone (3.5 mm stereo)

Video Standards

Input format support
Multi-format auto signal detection, up to 1080p 60
Colour space
HDMI: RGB/YUV; 3G-SDI: YUV
HDMI PGM/MV output
1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50
USB capture output
Up to 1080p 60

Power

Input voltage
DC 7 to 24V
Power consumption
≤24 W (12V 2A)

Environmental

Operating temperature
-20°C to 50°C

Mechanical

Dimensions
261.4 x 193.9 x 58 mm
Weight
1734.5 g (net), 2240 g (gross)

Switching

Transitions
T-Bar, AUTO, CUT
Effects
WIPE (11 x 3 patterns), MIX, DIP, STILL (freeze), PATTERN, MUTE, FTB
Multiview layouts
2 styles (landscape and portrait)
Keys
Upstream: 1x Luma Key, 1x Chroma Key, 2x PIP, POP; Downstream: 1x DSK, 1x Logo

Media

Media format
Default: 39 preset patterns; Local: up to 16 imported images; Capture: up to 16 captured images
Generators
1x Pattern Generator, 2x Colour Generators

Audio

Audio mixer
4x Video Input and 2x MIC/Line
Audio delay
0 to 500 ms

Mounting

Form factor
Portable

Streaming

Streaming protocols
RTMP, RTMPS, SRT
Encoding bitrate
2/4/8/12/16/24/32 Mbps, CBR/VBR

Recording

Storage format
USB/SD card, FAT32, exFAT, NTFS
Record file format
MP4, TS
File segment
1/5/10/20/30/60/90/120 mins

Accessories

Included

  • 12V 2A Power Adapter
  • USB A-C Cable
  • Tally Connector

Optional

  • Carry case

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data S4 Plus S4 H4 Plus S6 S6 Plus S8X Plus
Display
Screen size 10.1 inch — 10.1 inch 5 inch 17.3 inch 17.3 inch
Panel type IPS — IPS LCD IPS IPS
Native resolution 1920 x 1080 — 1920 x 1080 — 1920 x 1080 1920 x 1080
Connections
Video inputs 2x 3G-SDI (BNC), 2x HDMI Type-A 2x 3G-SDI (BNC), 2x HDMI Type-A 4x HDMI 4x 3G-SDI (BNC), 2x HDMI Type-A 6x 3G-SDI (BNC), 2x 4K HDMI (multiplexed with 3G-SDI 5/6) 8x 3G-SDI (BNC), 2x 4K HDMI (multiplexed with 3G-SDI 7/8), 1x BNC REF input, 1x AUX (internal: playback, UVC, stream, NDI®), 1x USB-A (UVC camera)
Video outputs 2x HDMI PGM, 1x HDMI Multiview, 1x LAN (RJ45 stream), 1x USB Type-C (capture) 2x HDMI PGM, 1x HDMI Multiview, 1x LAN (RJ45 stream), 1x USB Type-C (capture) 2x HDMI PGM, 1x HDMI Multiview, 1x LAN (RJ45 stream), 1x USB Type-C (capture) 2x 3G-SDI PGM, 1x HDMI PGM, 2x 3G-SDI AUX (IN1 to 6, PVW, PGM, Colour Bar, Multiview), 1x HDMI Multiview, 1x LAN (RJ45 stream), 1x USB Type-C (UVC capture) 4x 3G-SDI PGM (A/B pairs), 2x HDMI PGM (A/B), 1x HDMI Multiview, 1x LAN (RJ45 stream), 1x USB Type-C (UVC capture) 4x 3G-SDI PGM (A/B pairs), 2x HDMI PGM (A/B), 1x HDMI Multiview, 1x BNC REF loop output, 1x LAN (RJ45 stream), 1x USB Type-C (UVC capture)
Other interfaces 1x USB-A + SD card slot (record), 1x USB-A (image import and firmware upgrade), 1x Tally (DB-15 GPIO) 1x USB-A + SD card slot (record), 1x USB-A (image import and firmware upgrade), 1x Tally (DB-15 GPIO) 1x USB-A + SD card slot (record), 1x USB-A (image import and firmware upgrade), 1x Tally (DB-15 GPIO) 1x USB-A + SD card slot (record/storage), 1x Tally (DB-15 GPIO), 1x RS232/RS422/RS485 (DB-9, PTZ control) 1x USB-A + SD card slot (record/storage), 1x Tally (DB-15 GPIO), 1x RS232/RS485 (PTZ control) 1x USB-A + SD card + 2.5 inch SATA slot (record/storage), 1x USB-A (configuration, image import, firmware upgrade), 1x Tally (DB-26 GPIO), 1x RS232/RS422 (DB-9, PTZ control)
Audio Inputs: 2x MIC/Line (3.5 mm stereo); Outputs: 1x earphone (3.5 mm stereo) Inputs: 2x MIC/Line (3.5 mm stereo); Outputs: 1x earphone (3.5 mm stereo) Inputs: 2x MIC/Line (3.5 mm stereo); Outputs: 1x earphone (3.5 mm stereo) Inputs: 2x MIC (3.5 mm); Outputs: 1x line (3.5 mm), 1x earphone (3.5 mm) Inputs: 2x XLR/TRS balanced (+48V phantom), 1x 3.5 mm stereo line; Outputs: 2x XLR balanced, 1x 3.5 mm stereo, 1x 3.5 mm headphone Inputs: 2x XLR/TRS balanced (+48V phantom), 1x 3.5 mm stereo line; Outputs: 2x XLR balanced, 1x 3.5 mm stereo, 1x 3.5 mm headphone
Video Standards
Input format support Multi-format auto signal detection, up to 1080p 60 Multi-format auto signal detection, up to 1080p 60 Multi-format auto signal detection, up to 1080p 60 Multi-format auto signal detection, up to 1080p 60 3G-SDI: up to 1080p 60; HDMI: up to 4K 60 3G-SDI: up to 1080p 60; HDMI: up to 4K 60
Colour space HDMI: RGB/YUV; 3G-SDI: YUV HDMI: RGB/YUV; 3G-SDI: YUV HDMI: RGB/YUV; 3G-SDI: YUV RGB Full, RGB Limited, YUV 3G-SDI: YUV 4:2:2 10-bit; HDMI: YUV, RGB Full, RGB Limit 3G-SDI: YUV 4:2:2 10-bit; HDMI: YUV, RGB Full, RGB Limit (Rec. 709, Rec. 601)
HDMI PGM/MV output 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50 PGM: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/59.94/50, Multiview: 1080p 60 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50
USB capture output Up to 1080p 60 Up to 1080p 60 Up to 1080p 60 MJPG, up to 1080p 60 Up to 1080p 60 (YUY2, NV12, RGB32, 200 Mbps) Up to 1080p 60 (YUY2, NV12, RGB32, 200 Mbps)
3G-SDI input — 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94 — 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94
HDMI input — 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/25/24, 576i 50, 576p 50, 480p 59.94/60, 480i 59.94/60 — 1200p 60/50/30, 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 576i 50, 576p 50 4K 60/50/30, 2K 60/50/30, 1080p 60/59.94/50/30/29.97/25/24/23.98, 720p 60/59.94/50/30/29.97/25/24/23.98, 576p 50, 480p 60/59.94 4K 60/50/30, 2K 60/50/30, 1080p 60/59.94/50/30/29.97/25/24/23.98, 720p 60/59.94/50/30/29.97/25/24/23.98, 576p 50, 480p 60/59.94
3G-SDI output — — — 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/59.94/50 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50
3G-SDI compliance — — — SMPTE 259M, SMPTE 292M, SMPTE 424M — —
Power
Input voltage DC 7 to 24V DC 7 to 24V DC 7 to 24V DC 12V DC 9 to 24V DC 9 to 24V
Power consumption ≤24 W (12V 2A) ≤16.8 W (12V 1.4A) ≤20.4 W (12V 1.7A) ≤20.4 W (12V 1.7A) ≤50 W (15V) ≤50 W (15V)
Environmental
Operating temperature -20°C to 50°C -20°C to 60°C -20°C to 50°C -20°C to 60°C 0°C to 60°C -20°C to 50°C
Storage temperature — -30°C to 70°C — -30°C to 70°C -30°C to 70°C -30°C to 70°C
Mechanical
Dimensions 261.4 x 193.9 x 58 mm 244.5 x 143.2 x 44.5 mm 261.4 x 193.9 x 58 mm 238.5 x 168.2 x 47.5 mm 433 x 307 x 75.5 mm 433 x 307 x 75.5 mm
Weight 1734.5 g (net), 2240 g (gross) 1009.5 g (net), 1360 g (gross) 1734.5 g (net), 2240 g (gross) 1450 g (net), 2370 g (gross) 5240 g (net) 5500 g (net), 6680 g (gross)
Switching
Transitions T-Bar, AUTO, CUT T-Bar, AUTO, CUT T-Bar, AUTO, CUT T-Bar, AUTO, CUT T-Bar, AUTO, CUT T-Bar, AUTO, CUT
Effects WIPE (11 x 3 patterns), MIX, DIP, STILL (freeze), PATTERN, MUTE, FTB WIPE (11 x 3 patterns), MIX, DIP, STILL (freeze), PATTERN, MUTE, FTB WIPE (11 x 3 patterns), MIX, DIP, STILL (freeze), PATTERN, MUTE, FTB WIPE (11 x 3 patterns), MIX, DIP, STILL (freeze), FTB WIPE (11 x 4 patterns), MIX, DIP, STILL (freeze), PATTERN, MUTE, FTB WIPE (11 x 3 patterns), MIX, DIP, STILL (freeze), PATTERN, MUTE, FTB
Multiview layouts 2 styles (landscape and portrait) 2 styles (landscape and portrait) 2 styles (landscape and portrait) 2 styles (landscape and portrait) 2 styles (landscape and portrait) 2 styles (landscape and portrait)
Keys Upstream: 1x Luma Key, 1x Chroma Key, 2x PIP, POP; Downstream: 1x DSK, 1x Logo Upstream: 1x Luma Key, 1x Chroma Key, 2x PIP, POP; Downstream: 1x DSK, 1x Logo Upstream: 1x Luma Key, 1x Chroma Key, 2x PIP, POP; Downstream: 1x DSK, 1x Logo Upstream: 1x Chroma Key, 2x PIP, POP; Downstream: 1x DSK, 1x Logo Upstream: 1x Luma Key, 1x Chroma Key, 3x PIP; Downstream: 1x DSK, 1x Logo Upstream: 1x Luma Key, 1x Chroma Key, 3x PIP; Downstream: 1x DSK, 1x Logo
Macros — — — — 20 macros, recording and playback 20 macros, recording and playback
Media
Media format Default: 39 preset patterns; Local: up to 16 imported images; Capture: up to 16 captured images Default: 39 preset patterns; Local: up to 16 imported images; Capture: up to 16 captured images Default: 39 preset patterns; Local: up to 16 imported images; Capture: up to 16 captured images — Video: MP4, TS; Audio: MP3, AAC; Image: PNG (max 1920 x 1080); Logo: PNG (max 450 x 50) Video: MP4, TS; Image: JPG, PNG, BMP, JPEG (max 1920 x 1080); Logo: JPG, PNG, BMP, JPEG (max 650 x 650)
Generators 1x Pattern Generator, 2x Colour Generators 1x Pattern Generator, 2x Colour Generators 1x Pattern Generator, 2x Colour Generators — 1x Pattern Generator, 2x Colour Generators 1x Pattern Generator, 2x Colour Generators
Logo size — 10 x 10 to 600 x 600 pixels — — — —
Logo library — — — Up to 8 PNG images (max 512 x 320) — —
Audio
Audio mixer 4x Video Input and 2x MIC/Line 4x Video Input and 2x MIC/Line 4x Video Input and 2x MIC/Line 6x Video Input and 2x MIC 6x Video Input and 2x XLR/TRS 8x Video Input and 2x XLR/TRS
Audio delay 0 to 500 ms 0 to 500 ms 0 to 500 ms 0 to 500 ms 0 to 500 ms 0 to 500 ms
PTZ Control
Cameras — — — Up to 6 Up to 6 Up to 8
Control protocols — — — VISCA, VISCA over IP, ONVIF, PELCO-D/P VISCA, ONVIF, PELCO-D/P VISCA, ONVIF, PELCO-D/P, NDI® (optional)
Connection — — — LAN (RJ45), RS232/RS422/RS485 (DB-9) LAN (RJ45), RS232/RS485 (DB-9) LAN (RJ45), RS232/RS422 (DB-9)
Mounting
Form factor Portable Portable Portable Portable Portable Portable
Streaming
Streaming protocols RTMP, RTMPS, SRT RTMP, RTMPS, SRT RTMP, RTMPS, SRT RTMP(S), RTSP, SRT RTMP, NDI®|HX2 (encode, optional), NDI®|HX3 (decode, optional) RTMP, RTMPS, SRT, NDI®|HX2 (encode, optional), NDI®|HX3 (decode, optional)
Encoding bitrate 2/4/8/12/16/24/32 Mbps, CBR/VBR 2/4/8/12/16/24/32 Mbps, CBR/VBR 2/4/8/12/16/24/32 Mbps, CBR/VBR 2 to 32 Mbps, CBR/VBR Up to 32 Mbps, CBR/VBR Up to 32 Mbps, CBR/VBR
Recording
Storage format USB/SD card, FAT32, exFAT, NTFS USB/SD card, FAT32, exFAT, NTFS USB/SD card, FAT32, exFAT, NTFS USB/SD card, FAT32, exFAT, NTFS USB/SD card USB/SD card/2.5 inch SATA, FAT32, exFAT, NTFS, ext4
Record file format MP4, TS MP4, TS MP4, TS MP4, TS MP4, TS MP4, TS
File segment 1/5/10/20/30/60/90/120 mins 1/5/10/20/30/60/90/120 mins 1/5/10/20/30/60/90/120 mins 1 to 120 mins — —
