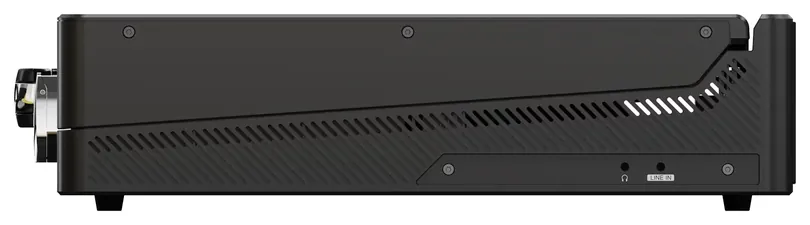

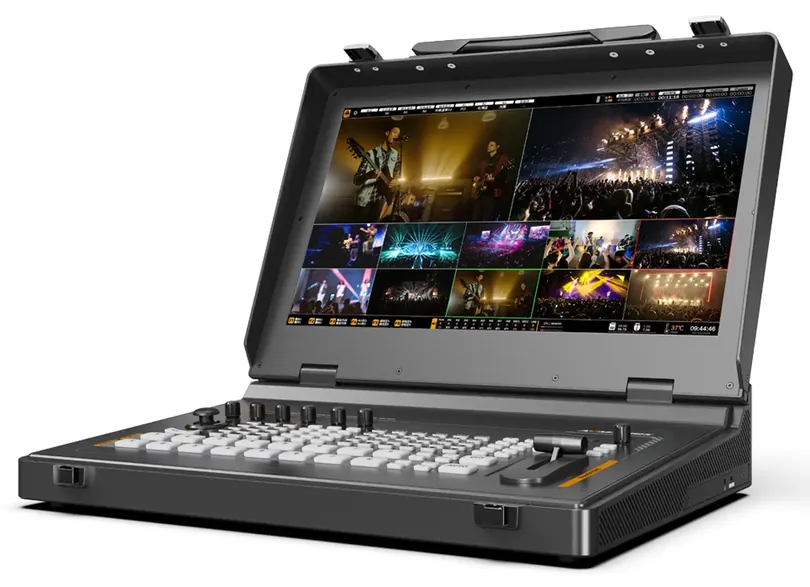

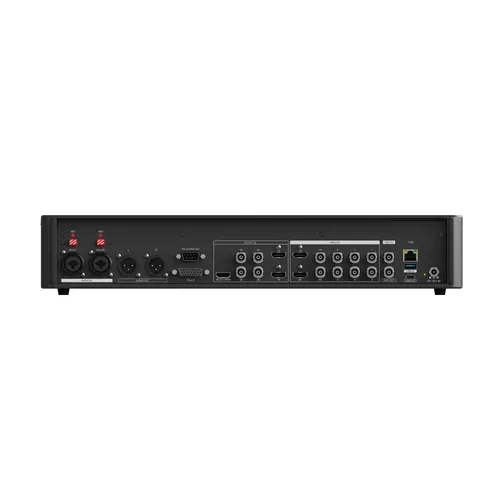

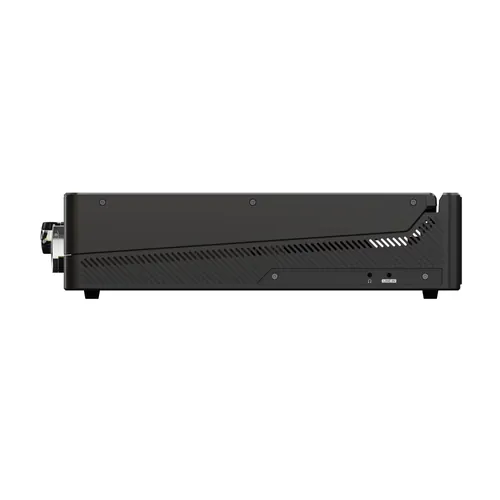

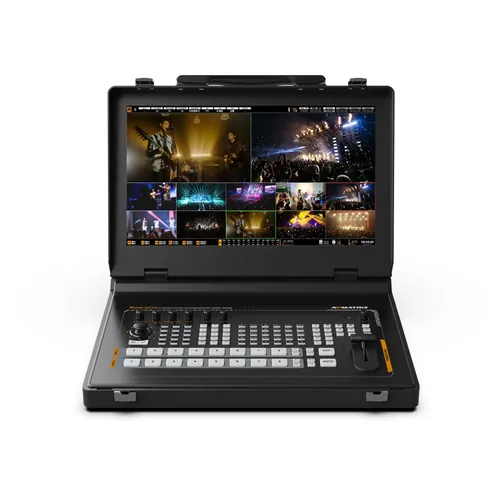

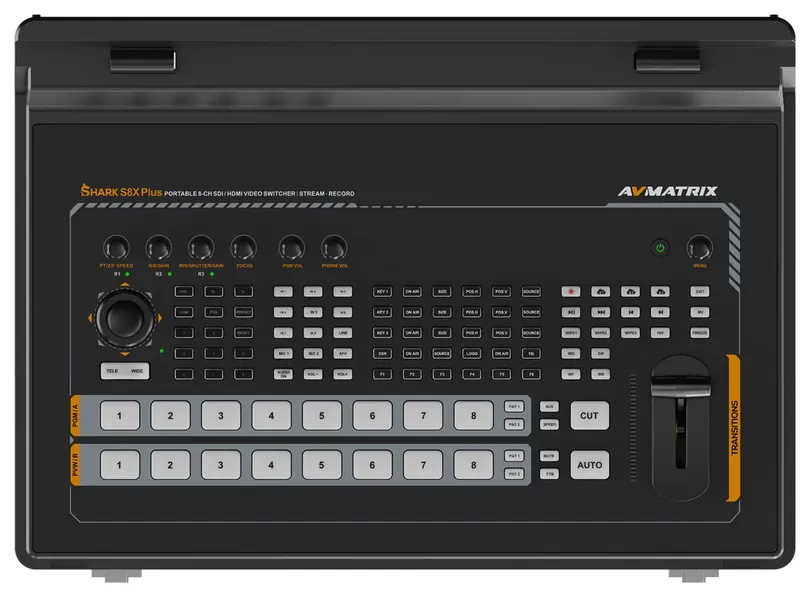

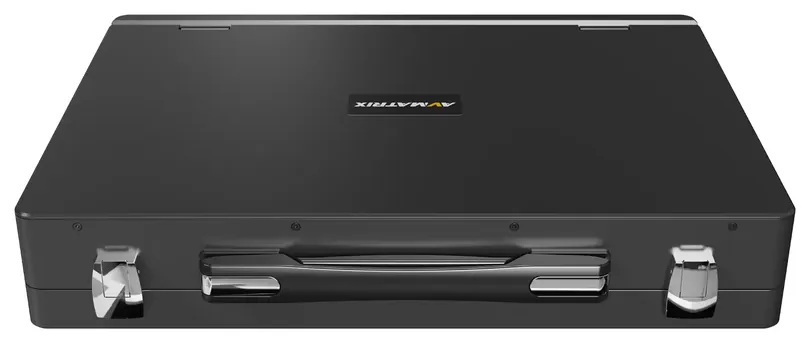

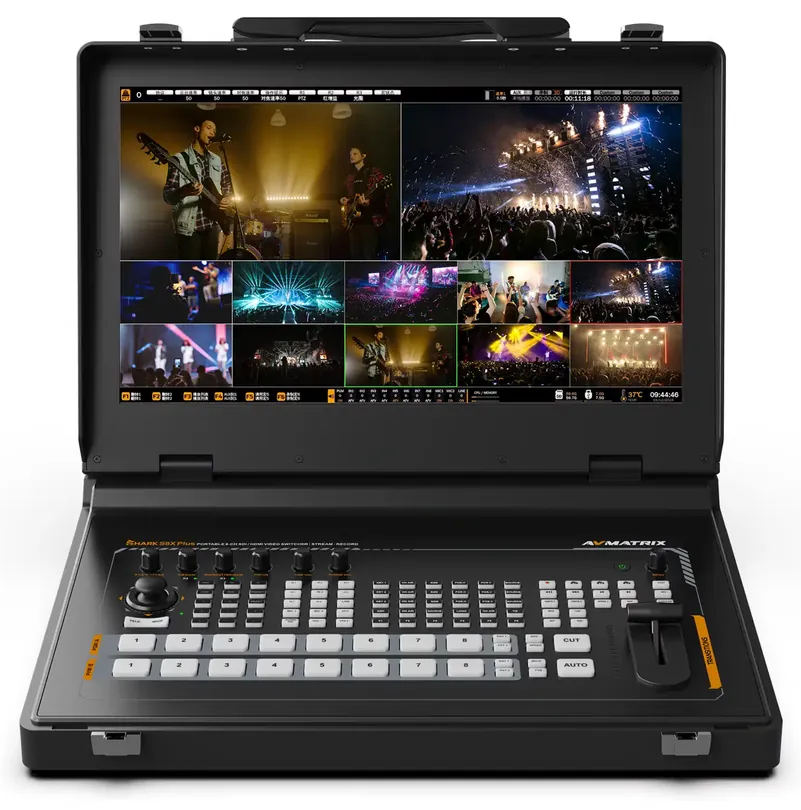

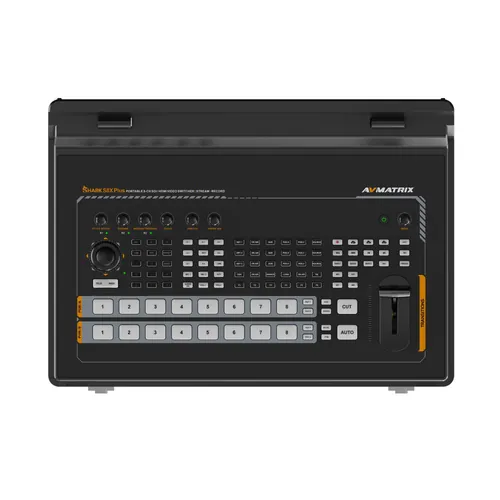

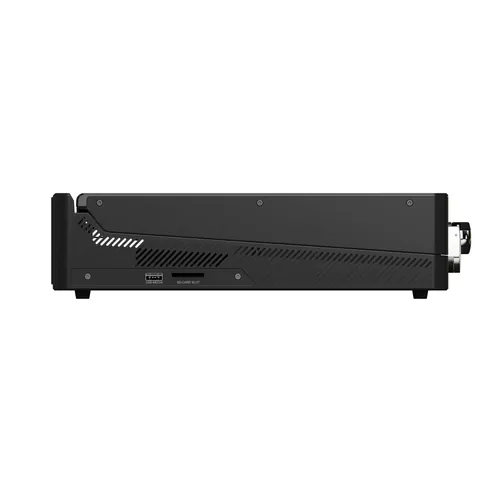

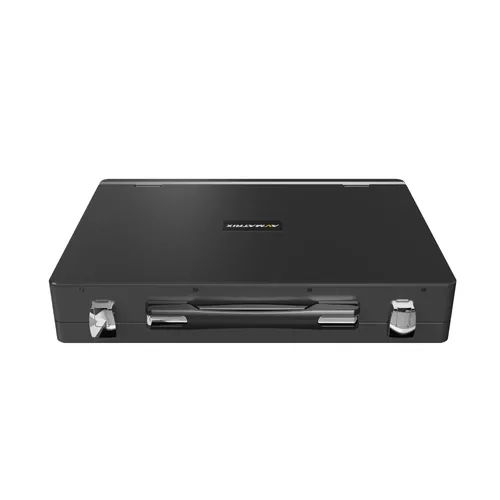

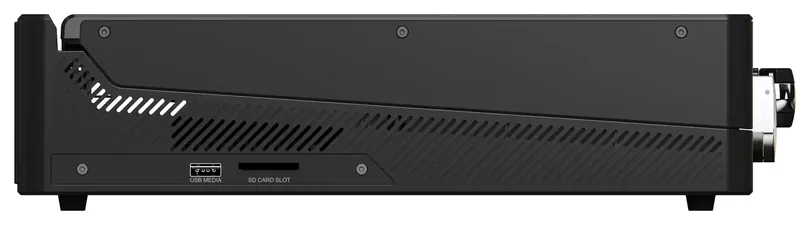

S8X Plus, product overview S8X Plus, view 2 S8X Plus, view 3 S8X Plus, view 4 S8X Plus, view 5 S8X Plus, view 6 S8X Plus, view 7 S8X Plus, view 8 S8X Plus, view 9 S8X Plus, view 10 S8X Plus, view 11 S8X Plus, view 12 S8X Plus, view 13 S8X Plus, view 14 S8X Plus, view 15

Key Features

  • 17.3 inch FHD IPS display with customisable multiview monitoring
  • 8x 3G-SDI and 2x 4K HDMI inputs with frame sync; 4x 3G-SDI + 2x HDMI PGM outputs and multiview
  • T-Bar, AUTO, and CUT transitions with WIPE (11 x 3), MIX, DIP, FTB, freeze
  • Upstream keying (luma, chroma, 3x PIP) and downstream keying (DSK, logo); up to 6 layers
  • XLR/TRS balanced audio with 48V phantom power; 10-channel mixer
  • RTMP(S)/SRT streaming up to 32 Mbps; recording to USB/SD/SATA; USB-C UVC capture up to 1080p60

Buy the S8X Plus From an Authorised Reseller

Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the S8X Plus now, or if your country is not listed, browse all authorised resellers here.

Technical Data

Display

Screen size
17.3 inch
Panel type
IPS
Native resolution
1920 x 1080

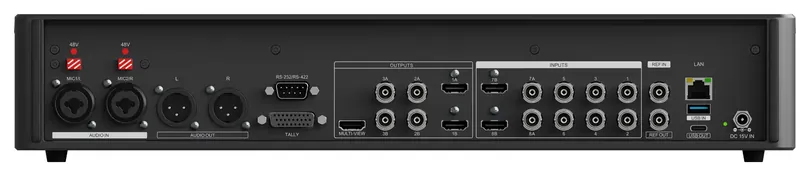

Connections

Video inputs
8x 3G-SDI (BNC), 2x 4K HDMI (multiplexed with 3G-SDI 7/8), 1x BNC REF input, 1x AUX (internal: playback, UVC, stream, NDI®), 1x USB-A (UVC camera)
Video outputs
4x 3G-SDI PGM (A/B pairs), 2x HDMI PGM (A/B), 1x HDMI Multiview, 1x BNC REF loop output, 1x LAN (RJ45 stream), 1x USB Type-C (UVC capture)
Other interfaces
1x USB-A + SD card + 2.5 inch SATA slot (record/storage), 1x USB-A (configuration, image import, firmware upgrade), 1x Tally (DB-26 GPIO), 1x RS232/RS422 (DB-9, PTZ control)
Audio
Inputs: 2x XLR/TRS balanced (+48V phantom), 1x 3.5 mm stereo line; Outputs: 2x XLR balanced, 1x 3.5 mm stereo, 1x 3.5 mm headphone

Video Standards

Input format support
3G-SDI: up to 1080p 60; HDMI: up to 4K 60
3G-SDI input
1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94
HDMI input
4K 60/50/30, 2K 60/50/30, 1080p 60/59.94/50/30/29.97/25/24/23.98, 720p 60/59.94/50/30/29.97/25/24/23.98, 576p 50, 480p 60/59.94
3G-SDI output
1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50
HDMI PGM/MV output
1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50
Colour space
3G-SDI: YUV 4:2:2 10-bit; HDMI: YUV, RGB Full, RGB Limit (Rec. 709, Rec. 601)
USB capture output
Up to 1080p 60 (YUY2, NV12, RGB32, 200 Mbps)

Power

Input voltage
DC 9 to 24V
Power consumption
≤50 W (15V)

Environmental

Operating temperature
-20°C to 50°C
Storage temperature
-30°C to 70°C

Mechanical

Dimensions
433 x 307 x 75.5 mm
Weight
5500 g (net), 6680 g (gross)

Switching

Transitions
T-Bar, AUTO, CUT
Effects
WIPE (11 x 3 patterns), MIX, DIP, STILL (freeze), PATTERN, MUTE, FTB
Multiview layouts
2 styles (landscape and portrait)
Keys
Upstream: 1x Luma Key, 1x Chroma Key, 3x PIP; Downstream: 1x DSK, 1x Logo
Macros
20 macros, recording and playback

Media

Media format
Video: MP4, TS; Image: JPG, PNG, BMP, JPEG (max 1920 x 1080); Logo: JPG, PNG, BMP, JPEG (max 650 x 650)
Generators
1x Pattern Generator, 2x Colour Generators

Audio

Audio mixer
8x Video Input and 2x XLR/TRS
Audio delay
0 to 500 ms

PTZ Control

Cameras
Up to 8
Control protocols
VISCA, ONVIF, PELCO-D/P, NDI® (optional)
Connection
LAN (RJ45), RS232/RS422 (DB-9)

Mounting

Form factor
Portable

Streaming

Streaming protocols
RTMP, RTMPS, SRT, NDI®|HX2 (encode, optional), NDI®|HX3 (decode, optional)
Encoding bitrate
Up to 32 Mbps, CBR/VBR

Recording

Storage format
USB/SD card/2.5 inch SATA, FAT32, exFAT, NTFS, ext4
Record file format
MP4, TS

Accessories

Included

  • 15V 4A Power Adapter
  • USB 3.0 Type-C Cable
  • Tally Connector (DB-26)

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data S8X Plus H4 Plus S4 Plus S6 Plus S4
Display
Screen size 17.3 inch 10.1 inch 10.1 inch 17.3 inch —
Panel type IPS IPS IPS IPS —
Native resolution 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080 —
Connections
Video inputs 8x 3G-SDI (BNC), 2x 4K HDMI (multiplexed with 3G-SDI 7/8), 1x BNC REF input, 1x AUX (internal: playback, UVC, stream, NDI®), 1x USB-A (UVC camera) 4x HDMI 2x 3G-SDI (BNC), 2x HDMI Type-A 6x 3G-SDI (BNC), 2x 4K HDMI (multiplexed with 3G-SDI 5/6) 2x 3G-SDI (BNC), 2x HDMI Type-A
Video outputs 4x 3G-SDI PGM (A/B pairs), 2x HDMI PGM (A/B), 1x HDMI Multiview, 1x BNC REF loop output, 1x LAN (RJ45 stream), 1x USB Type-C (UVC capture) 2x HDMI PGM, 1x HDMI Multiview, 1x LAN (RJ45 stream), 1x USB Type-C (capture) 2x HDMI PGM, 1x HDMI Multiview, 1x LAN (RJ45 stream), 1x USB Type-C (capture) 4x 3G-SDI PGM (A/B pairs), 2x HDMI PGM (A/B), 1x HDMI Multiview, 1x LAN (RJ45 stream), 1x USB Type-C (UVC capture) 2x HDMI PGM, 1x HDMI Multiview, 1x LAN (RJ45 stream), 1x USB Type-C (capture)
Other interfaces 1x USB-A + SD card + 2.5 inch SATA slot (record/storage), 1x USB-A (configuration, image import, firmware upgrade), 1x Tally (DB-26 GPIO), 1x RS232/RS422 (DB-9, PTZ control) 1x USB-A + SD card slot (record), 1x USB-A (image import and firmware upgrade), 1x Tally (DB-15 GPIO) 1x USB-A + SD card slot (record), 1x USB-A (image import and firmware upgrade), 1x Tally (DB-15 GPIO) 1x USB-A + SD card slot (record/storage), 1x Tally (DB-15 GPIO), 1x RS232/RS485 (PTZ control) 1x USB-A + SD card slot (record), 1x USB-A (image import and firmware upgrade), 1x Tally (DB-15 GPIO)
Audio Inputs: 2x XLR/TRS balanced (+48V phantom), 1x 3.5 mm stereo line; Outputs: 2x XLR balanced, 1x 3.5 mm stereo, 1x 3.5 mm headphone Inputs: 2x MIC/Line (3.5 mm stereo); Outputs: 1x earphone (3.5 mm stereo) Inputs: 2x MIC/Line (3.5 mm stereo); Outputs: 1x earphone (3.5 mm stereo) Inputs: 2x XLR/TRS balanced (+48V phantom), 1x 3.5 mm stereo line; Outputs: 2x XLR balanced, 1x 3.5 mm stereo, 1x 3.5 mm headphone Inputs: 2x MIC/Line (3.5 mm stereo); Outputs: 1x earphone (3.5 mm stereo)
Video Standards
Input format support 3G-SDI: up to 1080p 60; HDMI: up to 4K 60 Multi-format auto signal detection, up to 1080p 60 Multi-format auto signal detection, up to 1080p 60 3G-SDI: up to 1080p 60; HDMI: up to 4K 60 Multi-format auto signal detection, up to 1080p 60
3G-SDI input 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94 — — 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94
HDMI input 4K 60/50/30, 2K 60/50/30, 1080p 60/59.94/50/30/29.97/25/24/23.98, 720p 60/59.94/50/30/29.97/25/24/23.98, 576p 50, 480p 60/59.94 — — 4K 60/50/30, 2K 60/50/30, 1080p 60/59.94/50/30/29.97/25/24/23.98, 720p 60/59.94/50/30/29.97/25/24/23.98, 576p 50, 480p 60/59.94 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/25/24, 576i 50, 576p 50, 480p 59.94/60, 480i 59.94/60
3G-SDI output 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50 — — 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50 —
HDMI PGM/MV output 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50
Colour space 3G-SDI: YUV 4:2:2 10-bit; HDMI: YUV, RGB Full, RGB Limit (Rec. 709, Rec. 601) HDMI: RGB/YUV; 3G-SDI: YUV HDMI: RGB/YUV; 3G-SDI: YUV 3G-SDI: YUV 4:2:2 10-bit; HDMI: YUV, RGB Full, RGB Limit HDMI: RGB/YUV; 3G-SDI: YUV
USB capture output Up to 1080p 60 (YUY2, NV12, RGB32, 200 Mbps) Up to 1080p 60 Up to 1080p 60 Up to 1080p 60 (YUY2, NV12, RGB32, 200 Mbps) Up to 1080p 60
Power
Input voltage DC 9 to 24V DC 7 to 24V DC 7 to 24V DC 9 to 24V DC 7 to 24V
Power consumption ≤50 W (15V) ≤20.4 W (12V 1.7A) ≤24 W (12V 2A) ≤50 W (15V) ≤16.8 W (12V 1.4A)
Environmental
Operating temperature -20°C to 50°C -20°C to 50°C -20°C to 50°C 0°C to 60°C -20°C to 60°C
Storage temperature -30°C to 70°C — — -30°C to 70°C -30°C to 70°C
Mechanical
Dimensions 433 x 307 x 75.5 mm 261.4 x 193.9 x 58 mm 261.4 x 193.9 x 58 mm 433 x 307 x 75.5 mm 244.5 x 143.2 x 44.5 mm
Weight 5500 g (net), 6680 g (gross) 1734.5 g (net), 2240 g (gross) 1734.5 g (net), 2240 g (gross) 5240 g (net) 1009.5 g (net), 1360 g (gross)
Switching
Transitions T-Bar, AUTO, CUT T-Bar, AUTO, CUT T-Bar, AUTO, CUT T-Bar, AUTO, CUT T-Bar, AUTO, CUT
Effects WIPE (11 x 3 patterns), MIX, DIP, STILL (freeze), PATTERN, MUTE, FTB WIPE (11 x 3 patterns), MIX, DIP, STILL (freeze), PATTERN, MUTE, FTB WIPE (11 x 3 patterns), MIX, DIP, STILL (freeze), PATTERN, MUTE, FTB WIPE (11 x 4 patterns), MIX, DIP, STILL (freeze), PATTERN, MUTE, FTB WIPE (11 x 3 patterns), MIX, DIP, STILL (freeze), PATTERN, MUTE, FTB
Multiview layouts 2 styles (landscape and portrait) 2 styles (landscape and portrait) 2 styles (landscape and portrait) 2 styles (landscape and portrait) 2 styles (landscape and portrait)
Keys Upstream: 1x Luma Key, 1x Chroma Key, 3x PIP; Downstream: 1x DSK, 1x Logo Upstream: 1x Luma Key, 1x Chroma Key, 2x PIP, POP; Downstream: 1x DSK, 1x Logo Upstream: 1x Luma Key, 1x Chroma Key, 2x PIP, POP; Downstream: 1x DSK, 1x Logo Upstream: 1x Luma Key, 1x Chroma Key, 3x PIP; Downstream: 1x DSK, 1x Logo Upstream: 1x Luma Key, 1x Chroma Key, 2x PIP, POP; Downstream: 1x DSK, 1x Logo
Macros 20 macros, recording and playback — — 20 macros, recording and playback —
Media
Media format Video: MP4, TS; Image: JPG, PNG, BMP, JPEG (max 1920 x 1080); Logo: JPG, PNG, BMP, JPEG (max 650 x 650) Default: 39 preset patterns; Local: up to 16 imported images; Capture: up to 16 captured images Default: 39 preset patterns; Local: up to 16 imported images; Capture: up to 16 captured images Video: MP4, TS; Audio: MP3, AAC; Image: PNG (max 1920 x 1080); Logo: PNG (max 450 x 50) Default: 39 preset patterns; Local: up to 16 imported images; Capture: up to 16 captured images
Generators 1x Pattern Generator, 2x Colour Generators 1x Pattern Generator, 2x Colour Generators 1x Pattern Generator, 2x Colour Generators 1x Pattern Generator, 2x Colour Generators 1x Pattern Generator, 2x Colour Generators
Logo size — — — — 10 x 10 to 600 x 600 pixels
Audio
Audio mixer 8x Video Input and 2x XLR/TRS 4x Video Input and 2x MIC/Line 4x Video Input and 2x MIC/Line 6x Video Input and 2x XLR/TRS 4x Video Input and 2x MIC/Line
Audio delay 0 to 500 ms 0 to 500 ms 0 to 500 ms 0 to 500 ms 0 to 500 ms
PTZ Control
Cameras Up to 8 — — Up to 6 —
Control protocols VISCA, ONVIF, PELCO-D/P, NDI® (optional) — — VISCA, ONVIF, PELCO-D/P —
Connection LAN (RJ45), RS232/RS422 (DB-9) — — LAN (RJ45), RS232/RS485 (DB-9) —
Mounting
Form factor Portable Portable Portable Portable Portable
Streaming
Streaming protocols RTMP, RTMPS, SRT, NDI®|HX2 (encode, optional), NDI®|HX3 (decode, optional) RTMP, RTMPS, SRT RTMP, RTMPS, SRT RTMP, NDI®|HX2 (encode, optional), NDI®|HX3 (decode, optional) RTMP, RTMPS, SRT
Encoding bitrate Up to 32 Mbps, CBR/VBR 2/4/8/12/16/24/32 Mbps, CBR/VBR 2/4/8/12/16/24/32 Mbps, CBR/VBR Up to 32 Mbps, CBR/VBR 2/4/8/12/16/24/32 Mbps, CBR/VBR
Recording
Storage format USB/SD card/2.5 inch SATA, FAT32, exFAT, NTFS, ext4 USB/SD card, FAT32, exFAT, NTFS USB/SD card, FAT32, exFAT, NTFS USB/SD card USB/SD card, FAT32, exFAT, NTFS
Record file format MP4, TS MP4, TS MP4, TS MP4, TS MP4, TS
File segment — 1/5/10/20/30/60/90/120 mins 1/5/10/20/30/60/90/120 mins — 1/5/10/20/30/60/90/120 mins
