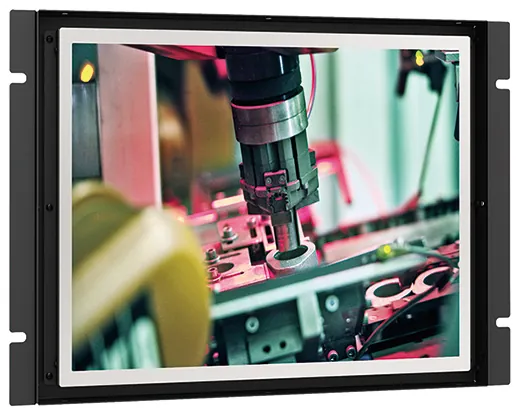

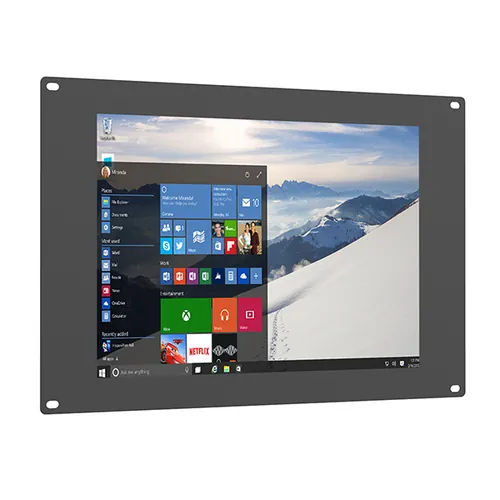

15 inch open frame monitor. Available with touch screen. For kiosks and industrial applications.
15 inch open frame monitor. Available with touch screen. For kiosks and industrial applications.
Discover TK1500
Key Features
- 15 inch open frame monitor with 5-wire resistive touch screen (optional)
- 1024 x 768 LCD, 1000 cd/m², 1500:1 contrast, 4:3
- 1x HDMI, 1x DVI, 1x VGA, 1x Composite, versatile inputs
- DC 12V, ≤15 W; -20°C to 60°C operating
- 402 x 289 x 45.5 mm (panel); 400 x 279 x 43.5 mm (open frame); 3.2 kg
Product Enquiry
Request a quote or ask a question about the TK1500. Our UK team will respond promptly.
Technical Data
Display
- Screen size
- 15 inch
- Aspect ratio
- 4:3
- Native resolution
- 1024 x 768
- Panel type
- LCD
- Brightness
- 1000 cd/m²
- Contrast
- 1500:1
- Viewing angle
- 45°/45° (L/R), 10°/90° (U/D)
- Signal response time
- 20 ms
- Maximum refresh rate
- 60 Hz
- Touch screen
- 5-wire resistive (optional)

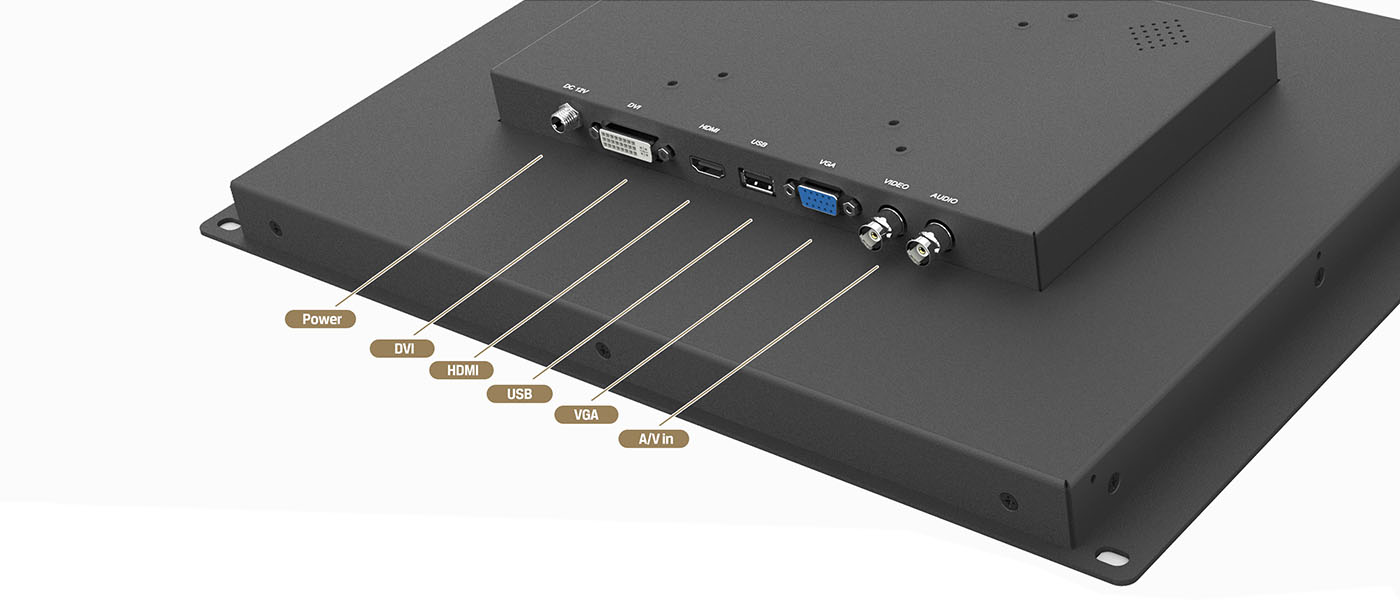

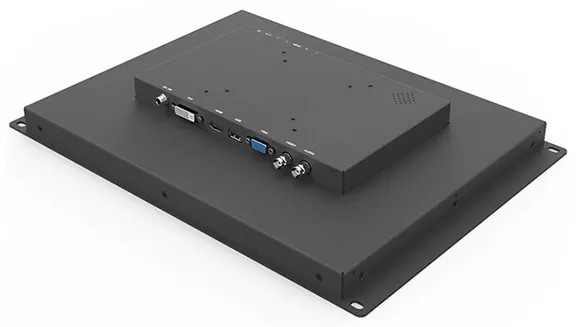

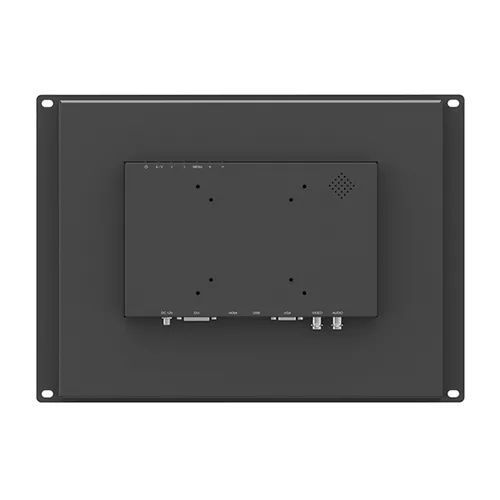

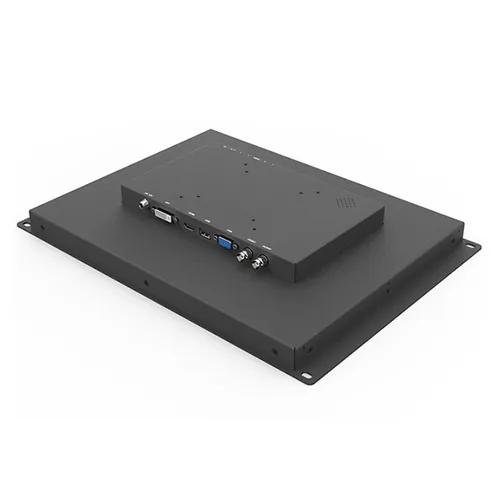

Connections
- Video inputs
- 1x HDMI, 1x DVI, 1x VGA, 1x Composite (RCA)
- Audio
- 1x Built-in speaker
Video Standards
- HDMI
- 1080p 50/60, 1080i 50/60, 720p 50/60
Power
- Input voltage
- DC 12V
- Power consumption
- ≤15 W
Environmental
- Operating temperature
- -20°C to 60°C
- Storage temperature
- -30°C to 70°C
Mechanical
- Material
- Front panel: Glass; Rear panel: Metal

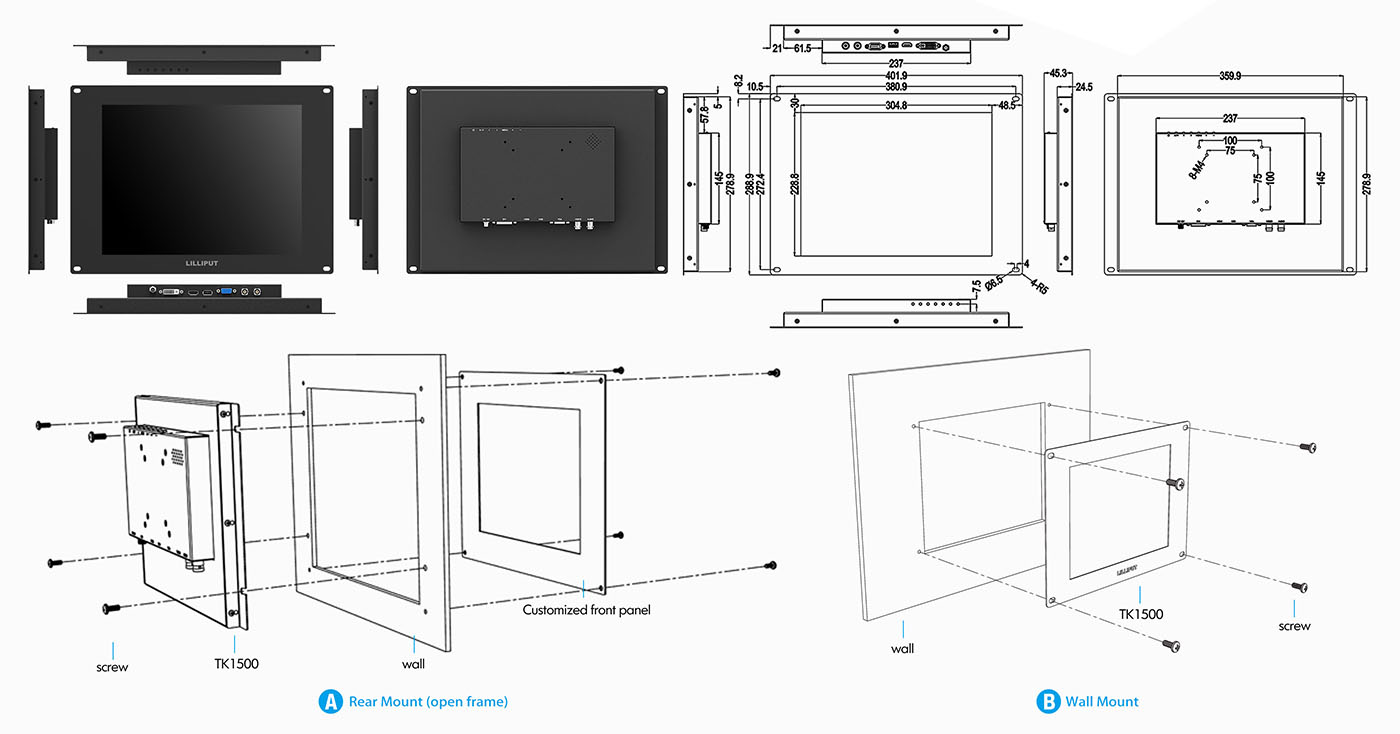

- Dimensions
- 402 x 289 x 45.5 mm (panel)
- Weight
- 3.2 kg

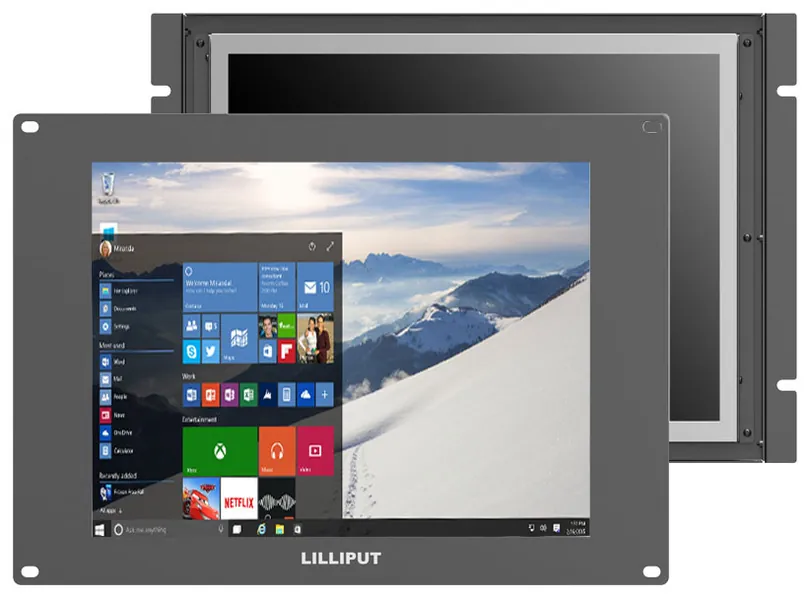

- Open frame
- 400 x 279 x 43.5 mm (optional)
Accessories
Included
- 12V DC Adapter
- HDMI A-A Cable
- VGA Cable
- Audio BNC Cable
- Video BNC Cable
- CD Driver
- Manual
- Panel Bracket (default)
Optional

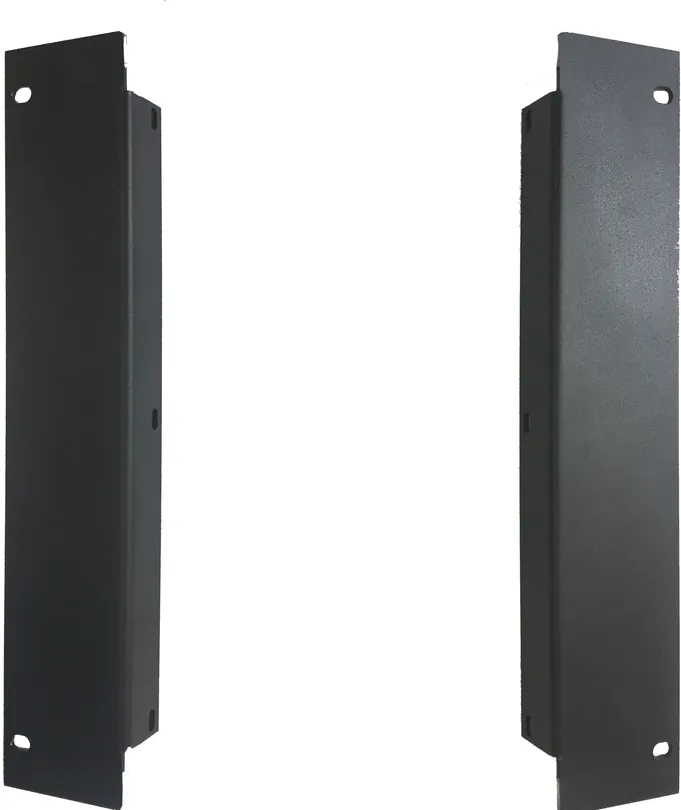

- Open Frame Bracket (upgrade)
- VESA Folding Bracket
- DVI Cable
Included (with Touch Screen)
- USB Cable (for touch)
- Touch Pen
Product Downloads
Similar Products
Compare key technical data across similar Lilliput products.
| Technical Data | TK1500 | TK1560 | TK1330 | TK1850 | TK1040 |
|---|---|---|---|---|---|
| Display | |||||
| Screen size | 15 inch | 15.6 inch | 13.3 inch | 18.5 inch | 10.4 inch |
| Aspect ratio | 4:3 | 16:9 | 16:9 | 16:9 | 4:3 |
| Native resolution | 1024 x 768 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 800 x 600 |
| Panel type | LCD | LCD | LCD | LCD | LCD |
| Brightness | 1000 cd/m² | 1000 cd/m² | 300 cd/m² | 1000 cd/m² | 250 cd/m² |
| Contrast | 1500:1 | 1000:1 | 800:1 | 1000:1 | 400:1 |
| Viewing angle | 45°/45° (L/R), 10°/90° (U/D) | 160°/160° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) | 130°/110° (H/V) |
| Signal response time | 20 ms | 20 ms | 20 ms | 20 ms | 20 ms |
| Maximum refresh rate | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
| Touch screen | 5-wire resistive (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | 5-wire resistive (optional) |
| Coating | — | — | — | Anti-glare, anti-fingerprint | — |
| Connections | |||||
| Video inputs | 1x HDMI, 1x DVI, 1x VGA, 1x Composite (RCA) | 1x HDMI 1.4b, 1x VGA, 1x Audio & Video (RCA) | 1x HDMI, 1x DVI, 1x VGA, 1x Composite | 1x HDMI 1.4b, 1x VGA, 1x Audio & Video (RCA) | 1x HDMI, 1x DVI, 1x VGA, 1x YPbPr, 2x Composite (RCA) |
| Audio | 1x Built-in speaker | 2x Built-in speakers, HDMI 2ch, 3.5 mm ear jack (2ch 48kHz 24-bit) | 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | 2x Built-in speakers, HDMI 2ch, 3.5 mm ear jack (2ch 48kHz 24-bit) | 2x Built-in speakers, 3.5 mm ear jack (2ch 48kHz 24-bit) |
| Additional connections | — | 1x USB Type-A (touch, firmware upgrade) (optional) | — | 2x USB-A (touch, upgrade) (optional) | — |
| Video Standards | |||||
| HDMI | 1080p 50/60, 1080i 50/60, 720p 50/60 | — | 1080p 50/60, 1080i 50/60, 720p 50/60 | — | 1080p 50/60, 1080i 50/60, 720p 50/60 |
| HDMI 1.4b | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — |
| VGA | — | — | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — |
| AV | — | — | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — |
| Operational Features | |||||
| Sensors | — | Ambient light auto-dimming | — | Ambient light auto-dimming | — |
| Markers | — | Aspect markers: 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | — | Aspect markers: 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | — |
| Image mirroring | — | Vertical flip, Horizontal flip | — | Vertical flip, Horizontal flip | — |
| Power | |||||
| Input voltage | DC 12V | DC 12 to 24V | DC 7 to 24V | DC 12 to 24V | DC 12V |
| Power consumption | ≤15 W | ≤24.5 W (15V) | ≤8 W | ≤32 W (15V) | ≤8 W |
| Environmental | |||||
| Operating temperature | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -10°C to 60°C | -20°C to 60°C |
| Storage temperature | -30°C to 70°C | -30°C to 70°C | -20°C to 70°C | -20°C to 60°C | -30°C to 70°C |
| IP rating | — | IP64 front panel (IEC60529) | — | IP65 front panel (IEC60529), NEMA 4 front | — |
| Hardness | — | 6H | — | 7H | — |
| IK rating | — | — | — | IK07 (IEC62262/EN62262) | — |
| Vibration | — | — | — | IEC6068-2-64 | — |
| Shock | — | — | — | IEC6068-2-27 | — |
| Mechanical | |||||
| Material | Front panel: Glass; Rear panel: Metal | Front panel: Glass; Rear panel: Metal | Front panel: Glass; Rear panel: Metal | Front panel: Glass; Rear panel: Metal | Front panel: Glass; Rear panel: Metal |
| Dimensions | 402 x 289 x 45.5 mm (panel) | 408 x 259 x 36.5 mm | 333.5 x 220 x 34.5 mm | 475 x 296 x 45.7 mm | 286.8 x 202.8 x 38.8 mm |
| Weight | 3.2 kg | 2.9 kg | 1.9 kg | 4.6 kg | 1.7 kg |
| Open frame | 400 x 279 x 43.5 mm (optional) | — | — | — | — |
| Mounting | |||||
| VESA mount | — | 75 x 75 mm, 100 x 100 mm | 75 x 75 mm | 75 x 75 mm, 100 x 100 mm | — |
| Mounting Screws | — | 4x Wall Mount Screws | 4x Wall Mount Screws | — | — |
| Stand | — | Folding VESA 100 Desktop Stand (optional) | Folding VESA 100 Desktop Stand (optional) | — | — |
| Flush mount | — | Flush panel clamps included | — | Flush panel mount bracket included | Flush panel mount bracket included |
