Lilliput UK today announces the 819, an 8 inch industrial monitor built for demanding environments. 1000 cd/m² brightness, 50,000 h LED backlight, anti-glare and anti-fingerprint coating, and full IP65 compliance with optional frame. Available with or without a 10-point PCAP touch screen.

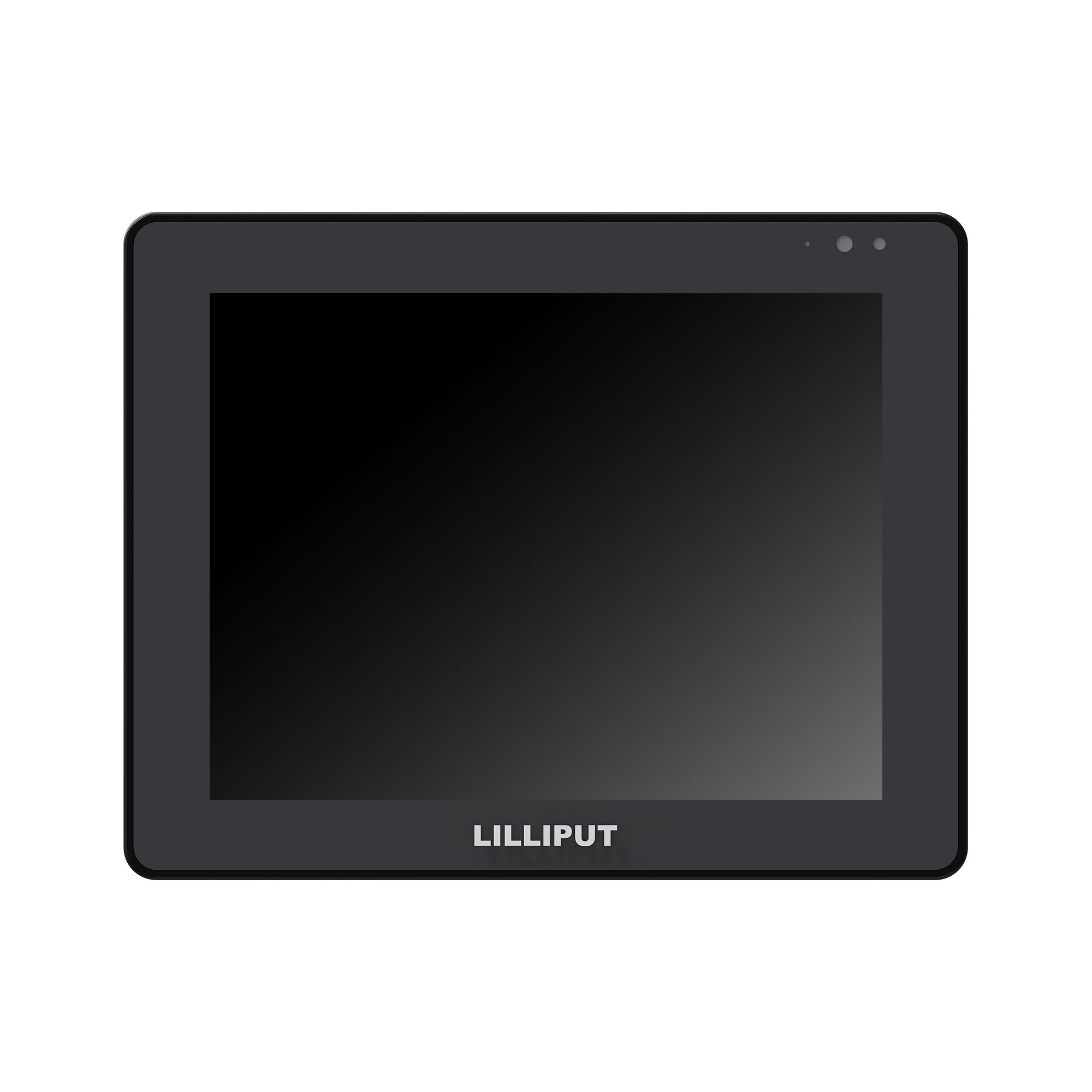

819

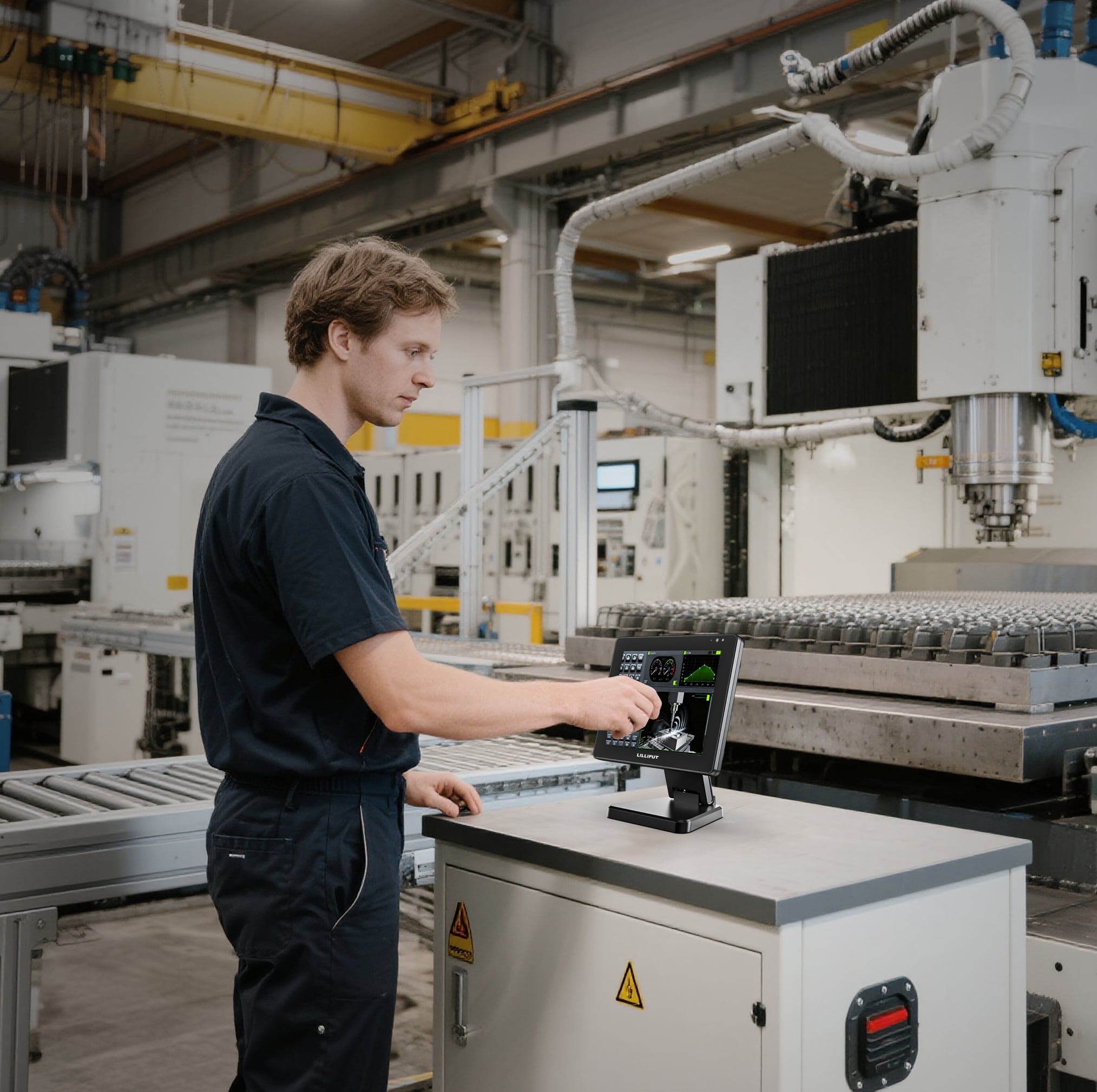

Built for the production line
The 819 is built to run continuously on the production floor. The 1000 cd/m² panel stays readable under factory lighting. At 50,000 h rated backlight life, it is designed for long-term deployment without servicing. The anti-glare, anti-fingerprint coating keeps the surface legible through repeated handling during a shift.

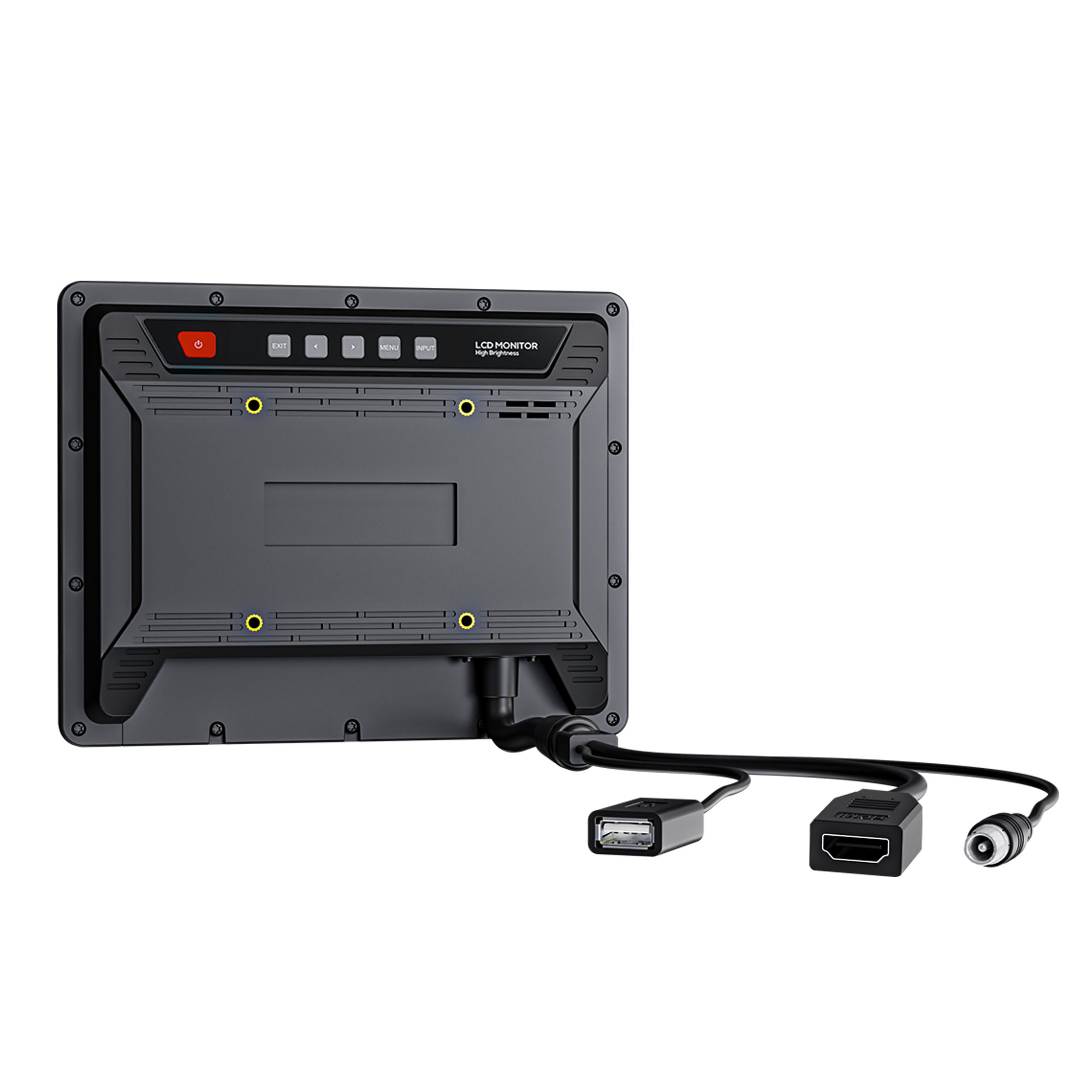

IP65 compliance with optional frame
An optional IP65 frame brings the unit to full IP65 per IEC 60529, protecting against dust ingress and water jets from any direction. Suitable for food production, packaging, and washdown environments. Without the frame the 819 is a standard robust industrial display; the frame is a straightforward upgrade when the application demands it.

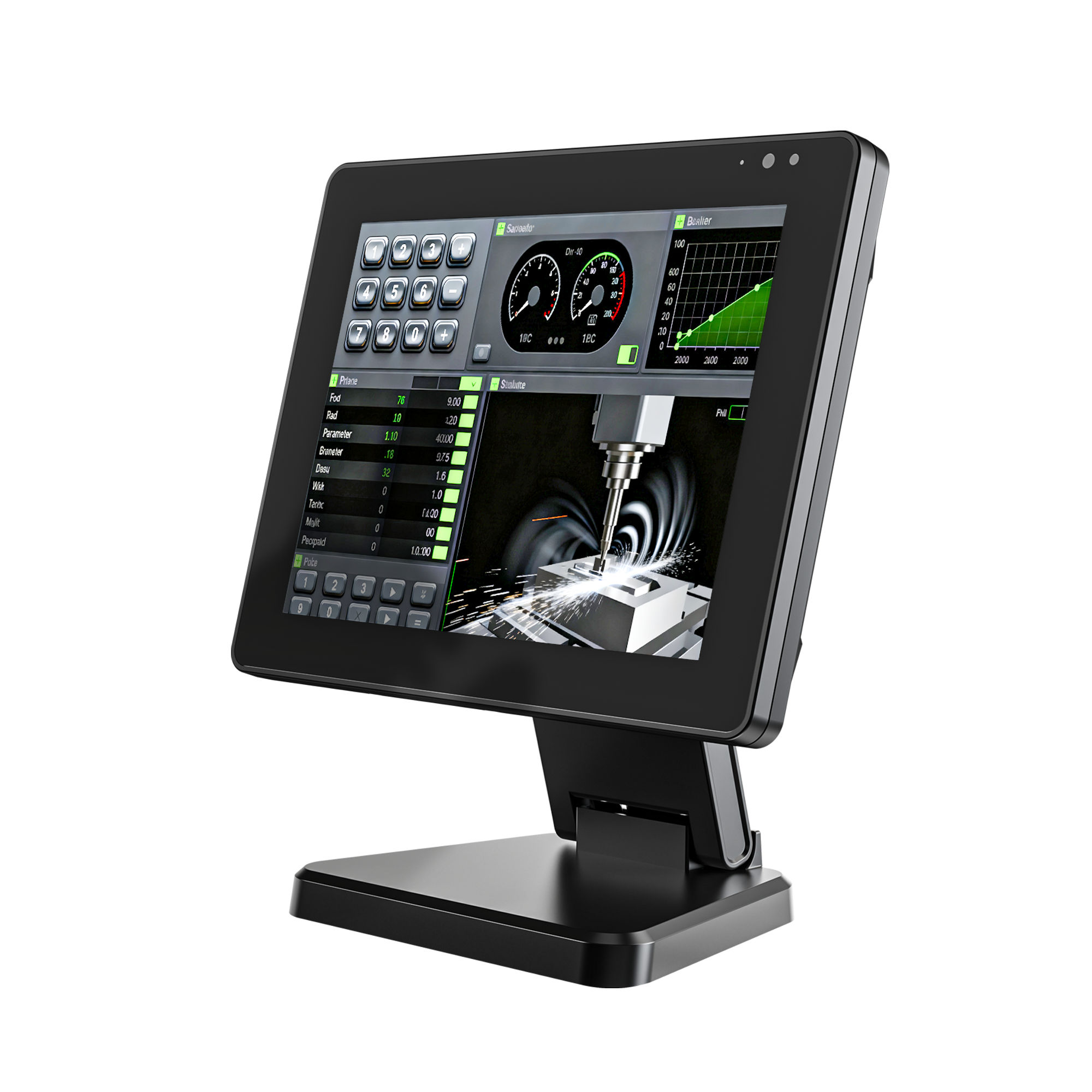

10-point PCAP touch screen
A touch screen variant is available with a 10-point projected capacitive screen, optically bonded to the panel to reduce parallax and minimise the air gap that collects condensation and contaminants. Suitable for gloved use in industrial HMI applications.

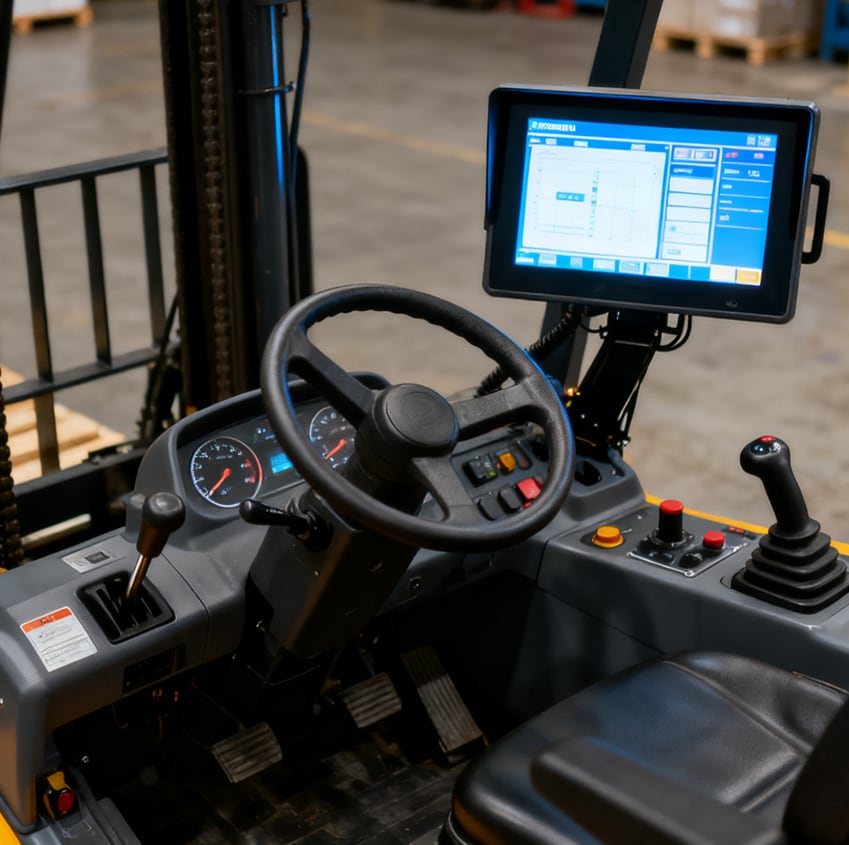

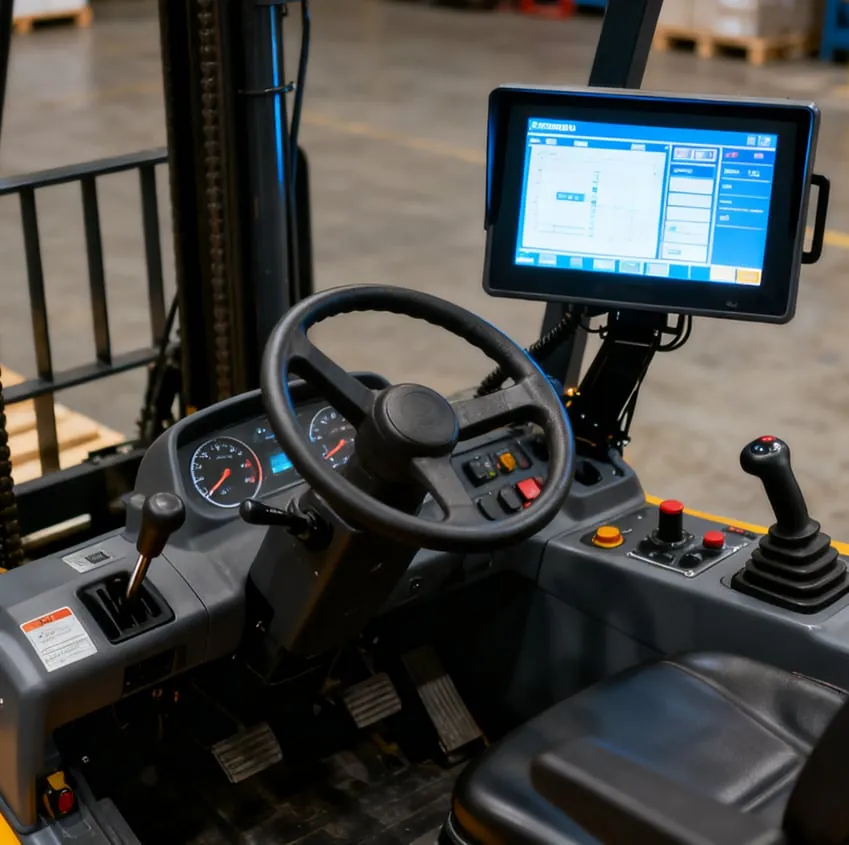

DC 9 to 36V: designed for in-vehicle and cab use
The 819 accepts DC 9 to 36V, compatible with 12V and 24V vehicle electrical systems. Lilliput's high-brightness monitors are well established in cab and in-vehicle applications where panel brightness and a reliable wide-voltage input are both required. The 8 inch 4:3 format suits instrument panel integration, forklift and machine cab displays, and vehicle-mounted HMI terminals.

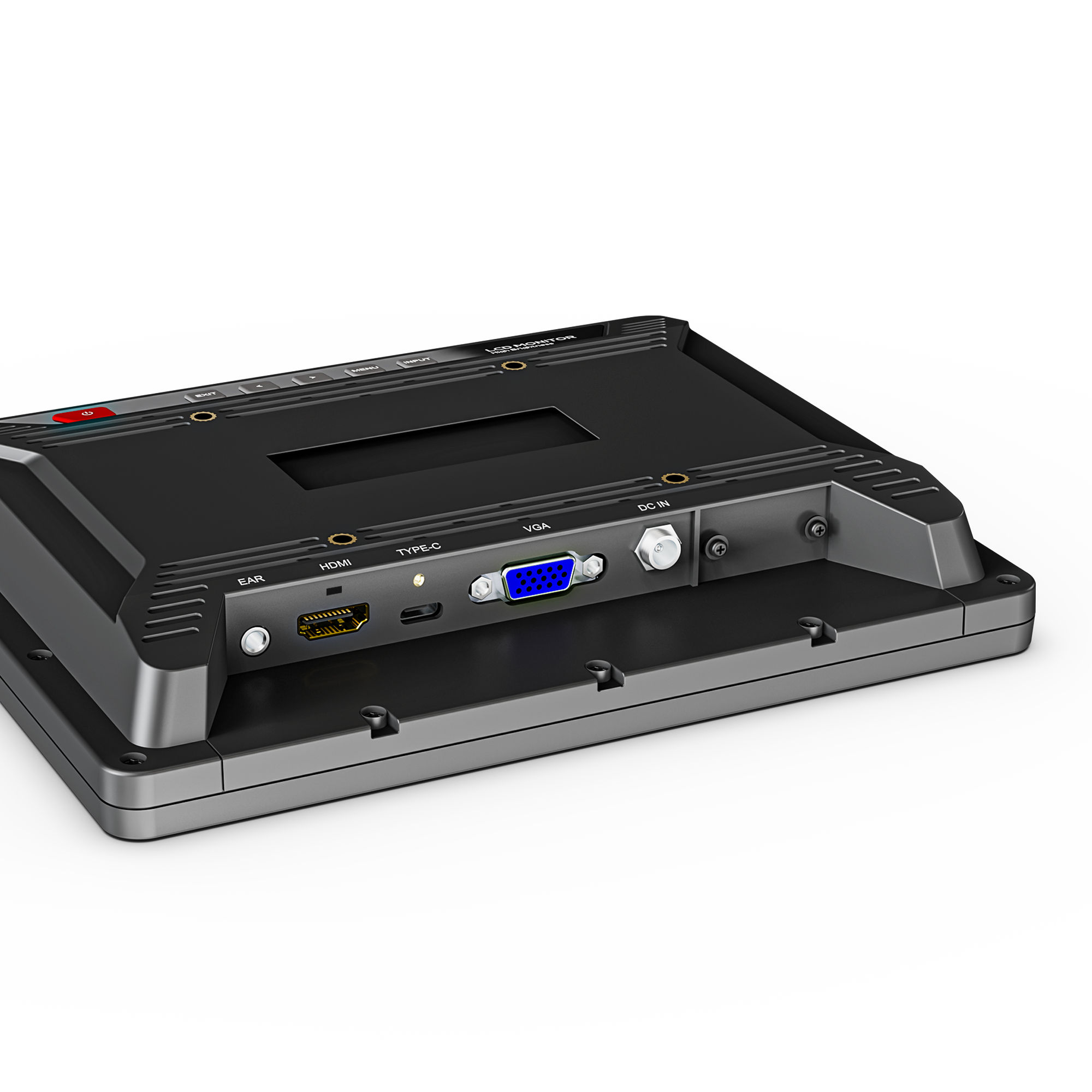

Connectivity that integrates into your production line
Three video inputs cover the range of host systems found in industrial installations: HDMI up to 2160p, VGA for legacy industrial PCs and PLCs, and USB Type-C for video and touch over a single cable. A built-in speaker and HDMI audio are standard; the non-touch model also includes a 3.5 mm ear jack.
Compact format, VESA 75 mounting
At 205 x 164.5 x 33 mm and 750 g, the 819 fits tight panel cutouts and compact mounting arrangements. VESA 75 x 75 mm mounting is standard. Optional accessories include a remote control, VESA 75mm bracket, and HDMI cable lock.
View the Lilliput 819 product page
Contact
For pricing, demonstrations, or integration advice, contact Darioush Mardi, Industrial Category Manager, at [email protected] or call +44 (0)1902 428688 ext. 304.
