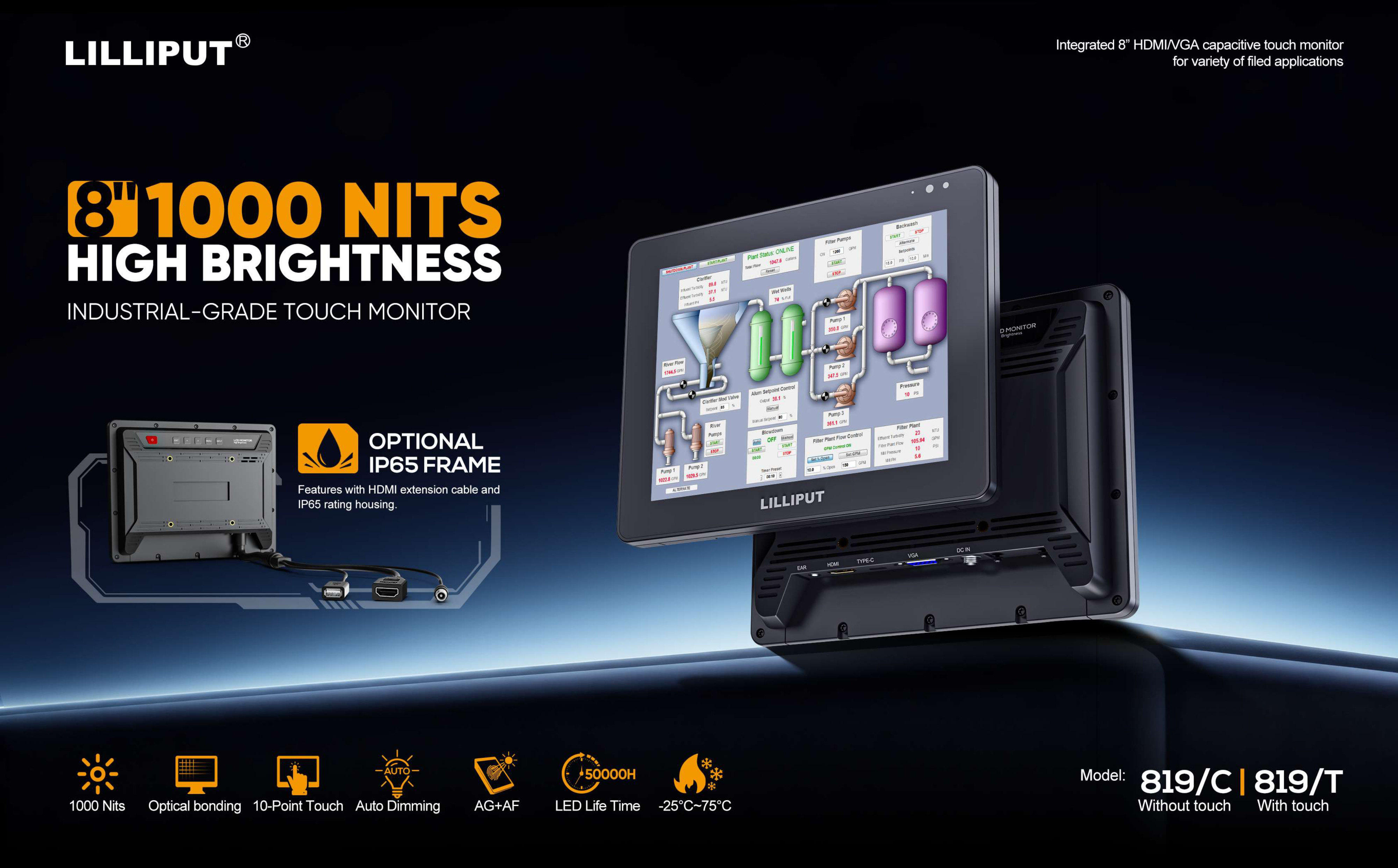

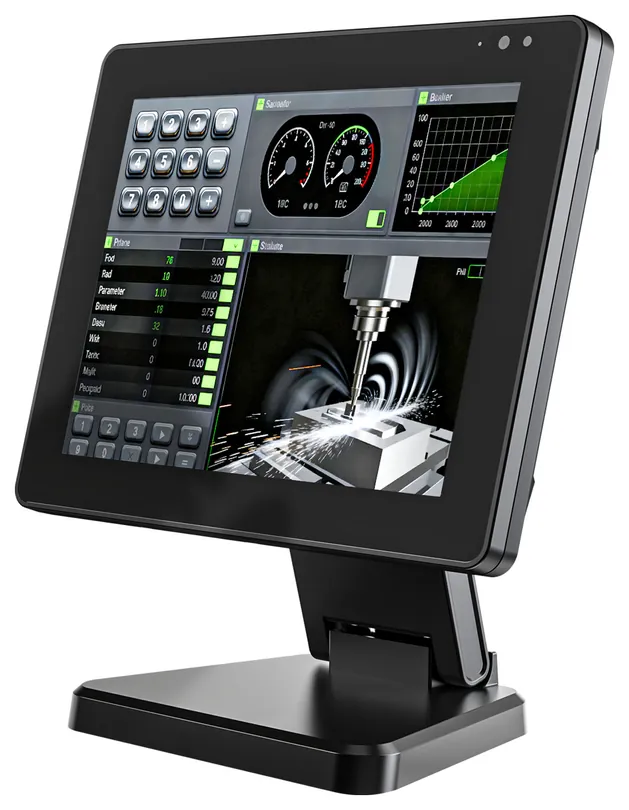

Key Features

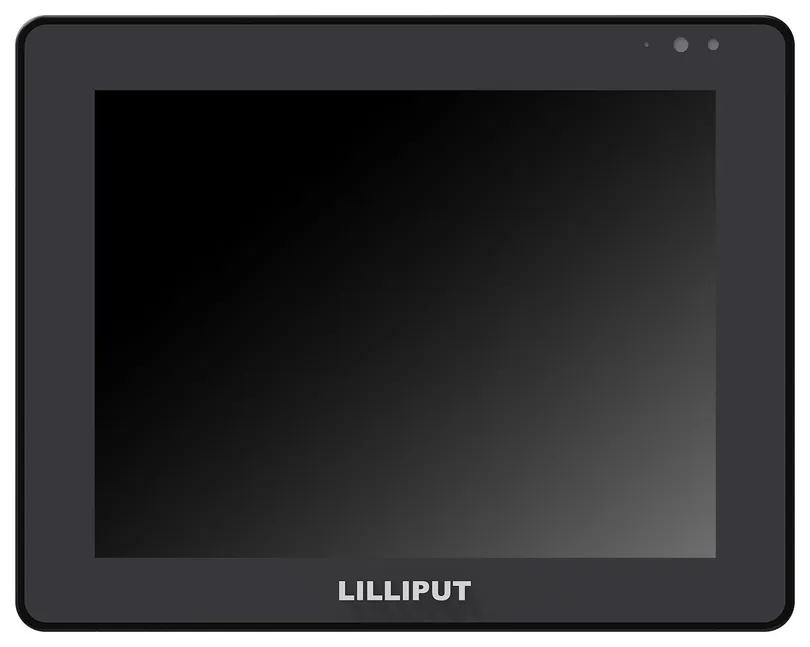

- 8 inch 1280 x 768 LCD, 1000 cd/m², 800:1 contrast, 4:3

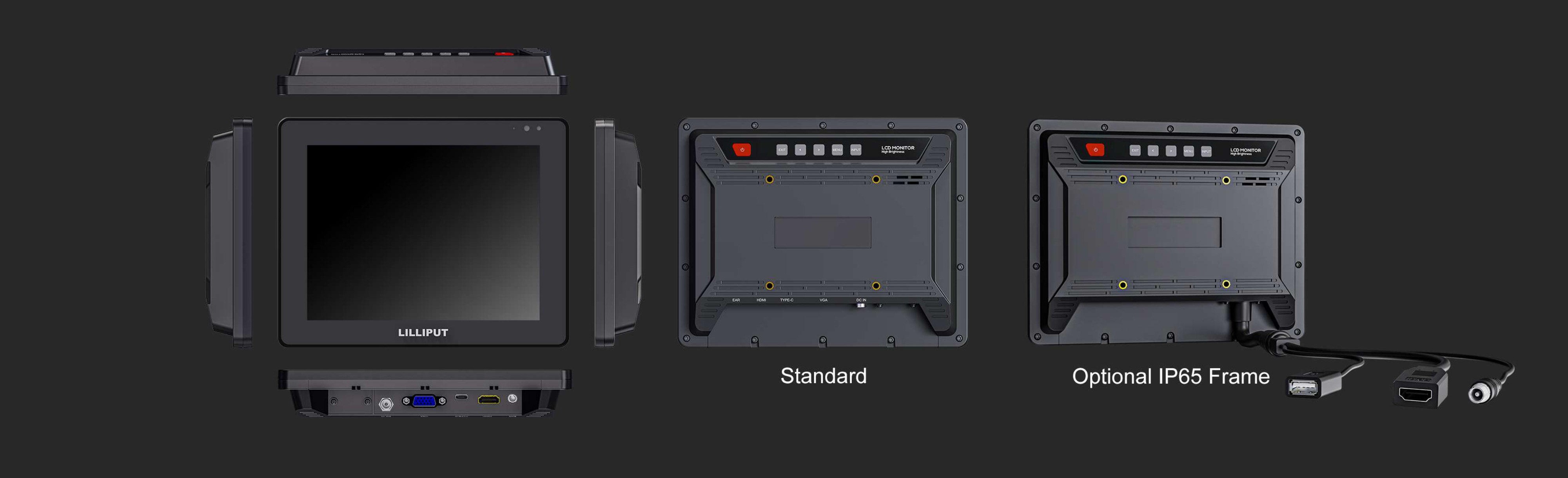

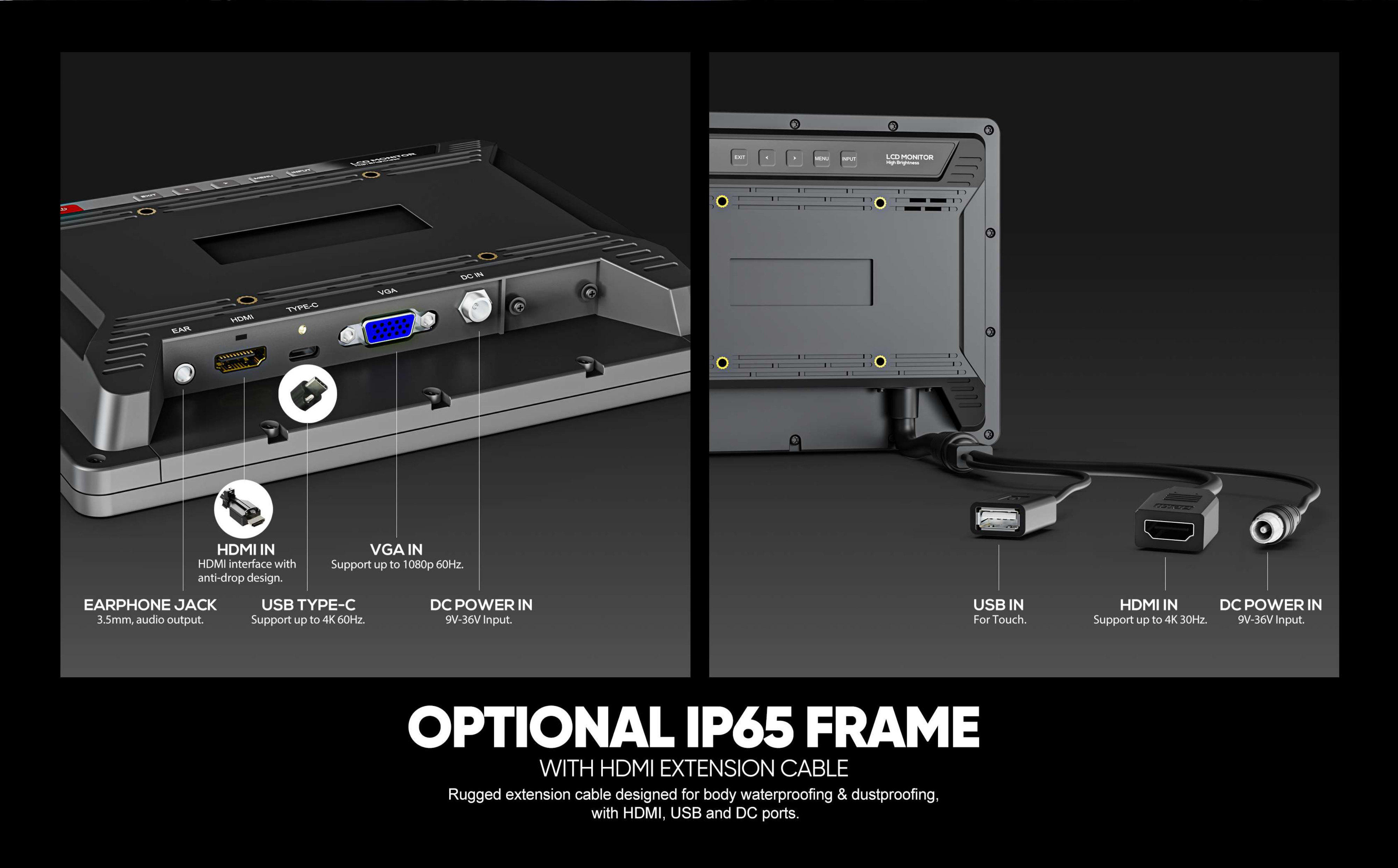

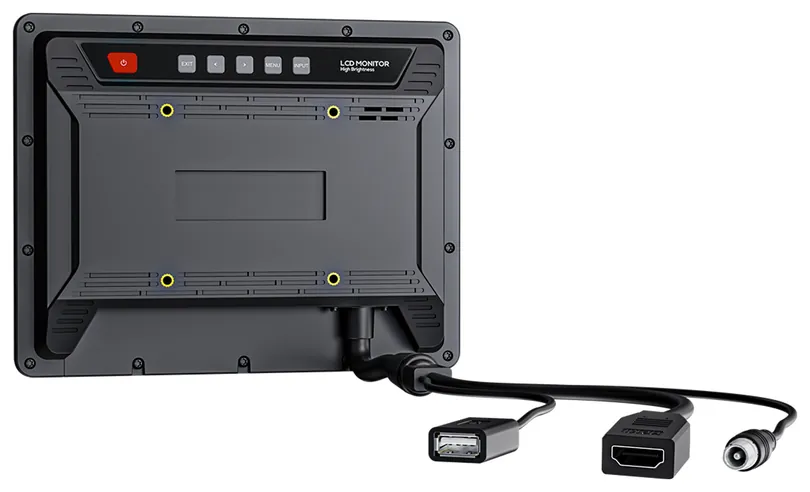

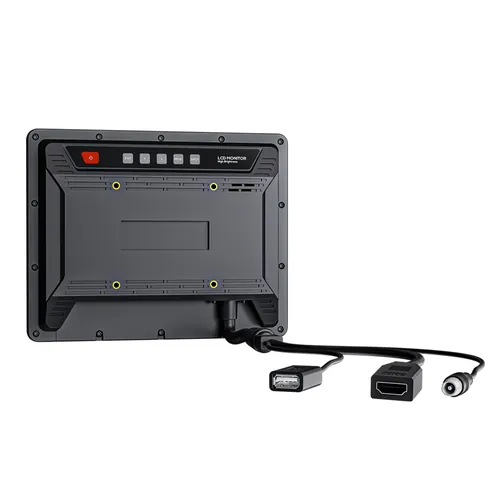

- IP65 sealed frame; HDMI via breakout cable; anti-glare, anti-fingerprint coating
- USB-A for touch on breakout cable (optional); built-in speaker
- DC 9 to 36V, less than 11 W; -25°C to 75°C operating temperature
- 205 x 164.5 x 33 mm; 780 g; VESA 75 mm
Product Enquiry
Request a quote or ask a question about the 819H. Our UK team will respond promptly.
Technical Data
Display
- Screen size
- 8 inch
- Aspect ratio
- 4:3
- Native resolution
- 1280 x 768
- Panel type
- LCD
- Brightness
- 1000 cd/m²
- Contrast
- 800:1
- Viewing angle
- 170°/170° (H/V)
- LED lifetime
- 50,000 h
- Optional coating
- Anti-glare, anti-fingerprint
- Touch screen
- 10-point PCAP (optional)
Connections
- Video inputs
- 1x HDMI
- Audio
- 1x Built-in speaker, HDMI audio
- Additional connections
- 1x USB-A (for touch) (optional)
Video Standards
- HDMI
- 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
Operational Features
- Sensors
- Ambient light auto-dimming
Power
- Input voltage
- DC 9 to 36V
- Power consumption
- ≤11 W (12V)
Environmental
- IP rating

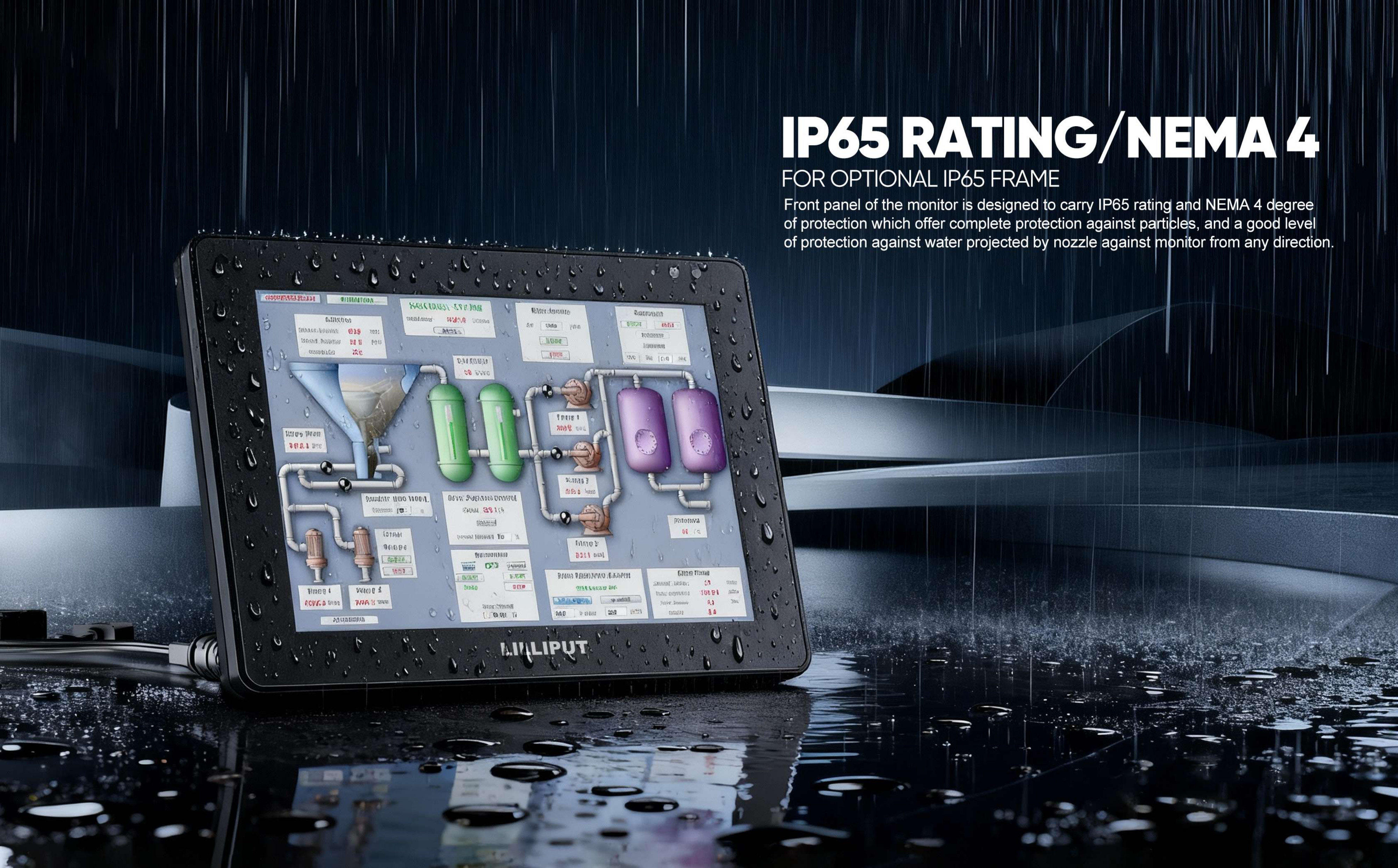

- IP65
- Operating temperature
- -25°C to 75°C
- Storage temperature
- -35°C to 85°C
Mechanical
- Dimensions
- 205 x 164.5 x 33 mm
- Weight
- 780 g
Mounting
- VESA mount
- 75 x 75 mm
Accessories
Included
- 12V 2A Power Adapter
- HDMI A-A Cable (HDMI Ver.)
Optional
- Remote Control

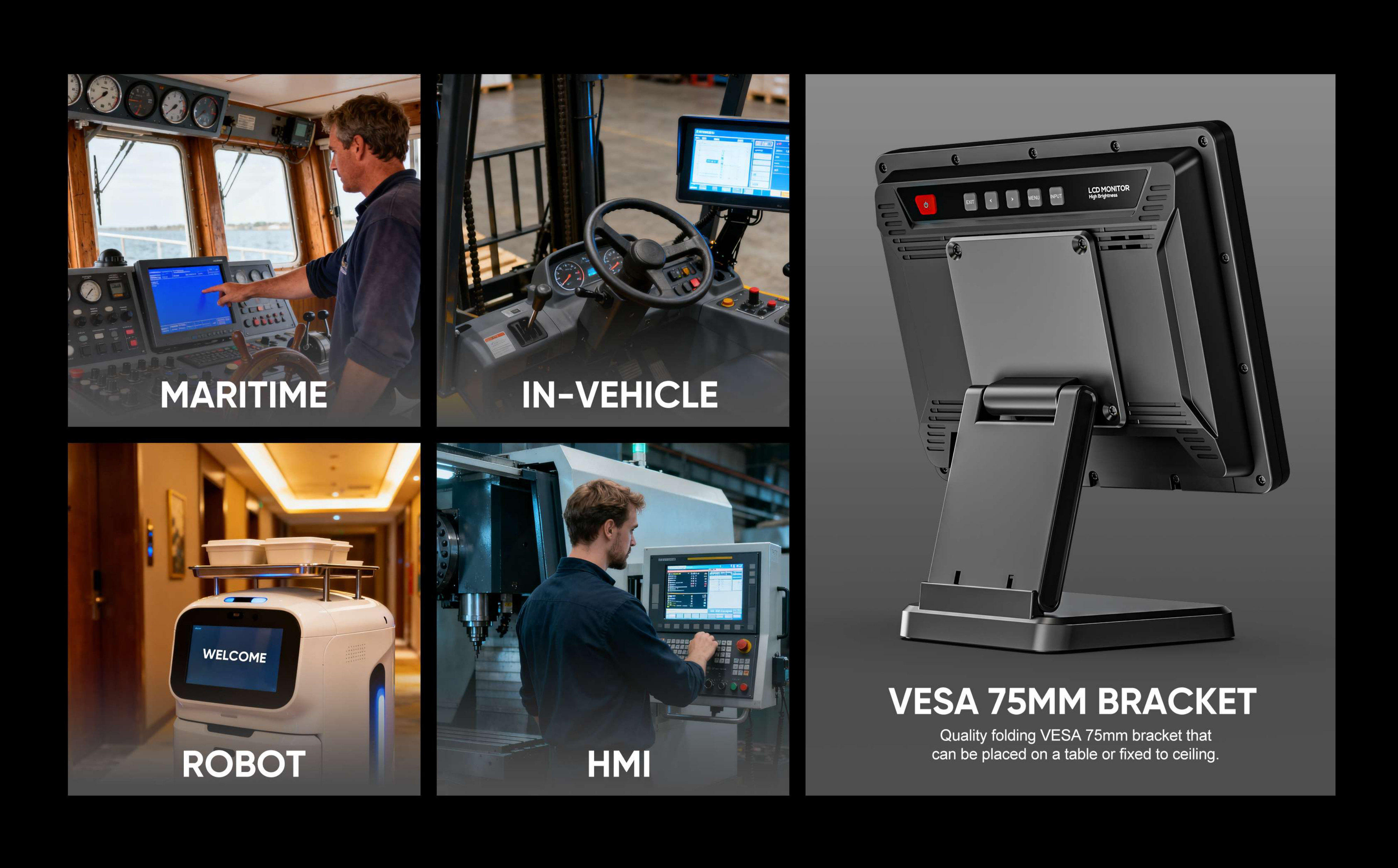

- VESA 75mm Bracket
- HDMI Cable Lock
Included (with Touch Screen)
- USB-A - A Cable (For Touch)
Similar Products
Compare key technical data across similar Lilliput products.
| Technical Data | 819H | 819 | 719H | FA1019H | 719 | FA1019 | FA1016 | FA1014 | FA1011 | FA1000 | TK1019 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Display | |||||||||||
| Screen size | 8 inch | 8 inch | 7 inch | 10.1 inch | 7 inch | 10.1 inch | 10.1 inch | 10.1 inch | 10.1 inch | 9.7 inch | 10.1 inch |
| Aspect ratio | 4:3 | 4:3 | 16:10 | 16:10 | 16:10 | 16:10 | 16:10 | 16:10 | 16:10 | 4:3 | 16:10 |
| Native resolution | 1280 x 768 | 1280 x 768 | 1280 x 800 | 1920 x 1200 | 1280 x 800 | 1920 x 1200 | 1920 x 1200 | 1280 x 800 | 1024 x 600 | 1024 x 768 | 1920 x 1200 |
| Panel type | LCD | LCD | LCD | LCD | LCD | LCD | LCD | LCD | LCD | LCD | LCD |
| Brightness | 1000 cd/m² | 1000 cd/m² | 1000 cd/m² | 1500 cd/m² | 1000 cd/m² | 1500 cd/m² | 320 cd/m² | 350 cd/m² | 250 cd/m² | 420 cd/m² | 1500 cd/m² |
| Contrast | 800:1 | 800:1 | 800:1 | 1000:1 | 800:1 | 1000:1 | 1000:1 | 800:1 | 500:1 | 900:1 | 1000:1 |
| Viewing angle | 170°/170° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) | 175°/175° (H/V) | 170°/170° (H/V) | 140°/110° (H/V) | 160°/174° (H/V) | 170°/170° (H/V) |
| LED lifetime | 50,000 h | 50,000 h | 50,000 h | 50,000 h | 50,000 h | 50,000 h | — | — | — | — | 50,000 h |
| Optional coating | Anti-glare, anti-fingerprint | Anti-glare, anti-fingerprint | — | — | — | — | — | — | — | — | — |
| Touch screen | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | 4-wire resistive (optional) | 5-wire resistive (optional) | 10-point PCAP (optional) |
| Connections | |||||||||||
| Video inputs | 1x HDMI | 1x HDMI, 1x VGA, 1x USB Type-C | 1x HDMI | 1x HDMI | 1x HDMI, 1x VGA, 1x USB-C | 1x HDMI, 1x VGA, 1x USB Type-C | 1x HDMI 1.4, 1x VGA | 1x HDMI, 1x VGA, 1x Composite | 1x HDMI, 1x VGA, 2x Composite | 1x HDMI, 1x VGA, 2x Composite | 1x HDMI 1.4b, 1x VGA |
| Audio | 1x Built-in speaker, HDMI audio | 1x Built-in speaker, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, HDMI audio | 1x Built-in speaker, HDMI 8ch 24-bit | 1x Built-in speaker, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, HDMI 8ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, 3.5 mm ear jack | 1x Built-in speaker, 3.5 mm ear jack | 1x Built-in speaker, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit) |
| Additional connections | 1x USB-A (for touch) (optional) | 1x USB-A (for touch) (optional) | 1x USB-A (for touch) (optional) | 1x USB-A (for touch) (optional) | 1x USB-C (touch, video, power) (optional) | 1x USB Type-C (touch, video, power) (optional) | 1x USB (for touch) (optional) | — | — | 1x Mini USB (for touch) (optional) | 1x USB-C (touch, video, power) (optional) |
| Video Standards | |||||||||||
| HDMI | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | 1080p 50/60, 1080i 50/60, 720p 50/60 | 1080p 50/60, 1080i 50/60, 720p 50/60 | 1080p 50/60, 1080i 50/60, 720p 50/60 | — |
| HDMI 1.4b | — | — | — | — | — | — | — | — | — | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| HDMI 1.4 | — | — | — | — | — | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — | — | — |
| VGA | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| USB Type-C | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — | — | — | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| Composite | — | — | — | — | — | — | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — |
| Operational Features | |||||||||||
| Sensors | Ambient light auto-dimming | Ambient light auto-dimming | Ambient light auto-dimming | — | Ambient light auto-dimming | — | — | — | — | — | Ambient light auto-dimming |
| Markers | — | — | — | — | — | — | — | Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | — | — | — |
| Power | |||||||||||
| Input voltage | DC 9 to 36V | DC 9 to 36V | DC 9 to 36V | DC 12 to 24V | DC 9 to 36V | DC 12 to 24V | DC 7 to 24V | DC 7 to 24V | DC 12V | DC 7 to 24V | DC 12 to 24V |
| Power consumption | ≤11 W (12V) | ≤11 W (12V) | ≤8.5 W (12V) | ≤19 W (12V) | ≤8.5 W (12V) | ≤19 W (12V) | ≤10 W | ≤10 W | ≤9 W | ≤10 W | ≤19 W (12V) |
| Environmental | |||||||||||
| IP rating | IP65 | — | IP65 | IP65 | — | — | — | — | — | — | IP65 front panel (IEC60529) |
| Operating temperature | -25°C to 75°C | -25°C to 75°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | 0°C to 50°C | 0°C to 50°C | -20°C to 60°C | -20°C to 60°C | -20°C to 70°C |
| Storage temperature | -35°C to 85°C | -35°C to 85°C | -30°C to 80°C | -30°C to 80°C | -30°C to 80°C | -30°C to 80°C | -20°C to 60°C | -20°C to 60°C | -30°C to 70°C | -30°C to 70°C | -30°C to 80°C |
| IK rating | — | — | — | — | — | — | — | — | — | — | IK07 (IEC62262/EN62262) |
| Hardness | — | — | — | — | — | — | — | — | — | — | 7H |
| Mechanical | |||||||||||
| Dimensions | 205 x 164.5 x 33 mm | 205 x 164.5 x 33 mm | 184.5 x 118.8 x 32 mm | 251 x 170 x 33 mm | 184.5 x 118.8 x 32 mm | 251 x 170 x 33 mm | 252 x 157 x 25 mm | 250 x 170 x 32.3 mm | 254.5 x 163 x 34 mm (63.5 mm with bracket) | 234.4 x 192.5 x 29 mm | 264 x 183 x 35.6 mm |
| Weight | 780 g | 750 g | 560 g | 820 g | 410 g | 820 g | 535 g | 560 g | 1125 g | 625 g | 1.31 kg |
| Mounting | |||||||||||
| VESA mount | 75 x 75 mm | 75 x 75 mm | 75 x 75 mm | 75 x 75 mm | 75 x 75 mm | 75 x 75 mm | 75 x 75 mm | — | 75 x 75 mm | 75 x 75 mm | 75 x 75 mm |
| Mounting Screws | — | — | — | — | — | — | — | — | — | — | 4x Wall Mount Screws |
| Stand | — | — | — | — | — | — | — | — | — | — | Foldable VESA 75 Stand (optional) |
| Control | |||||||||||
| I/O | — | — | — | — | — | — | — | 1 | — | — | — |
