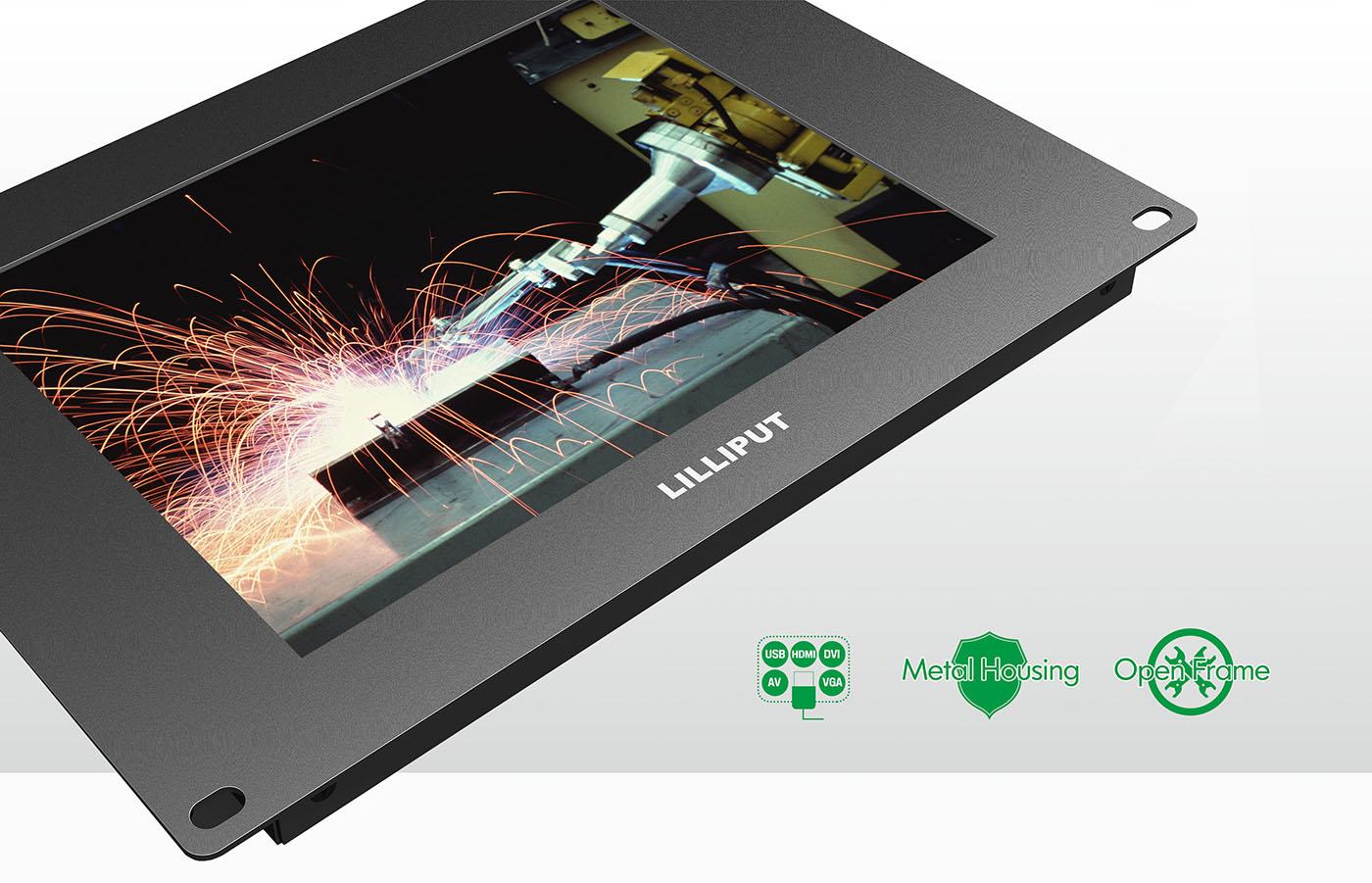

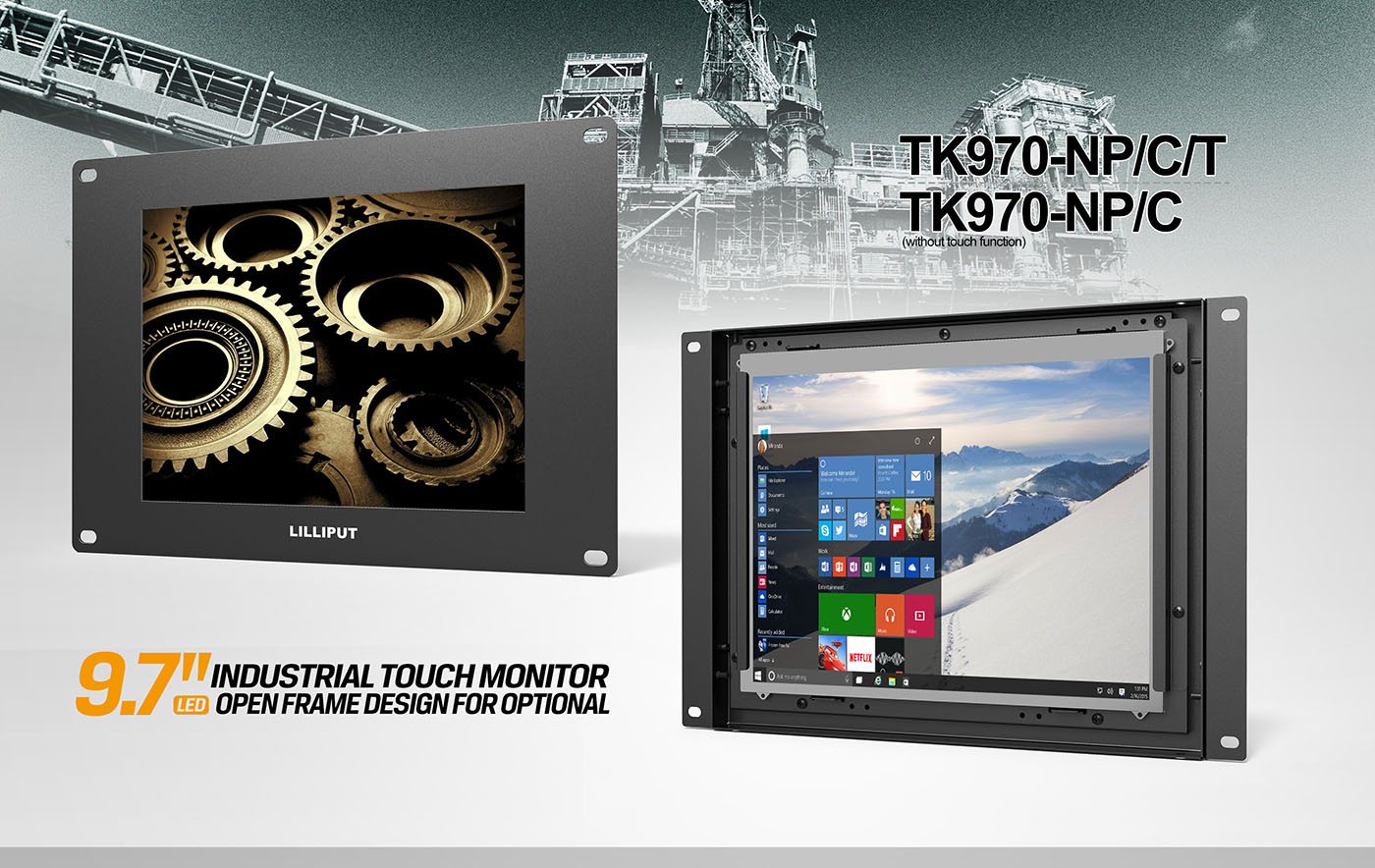

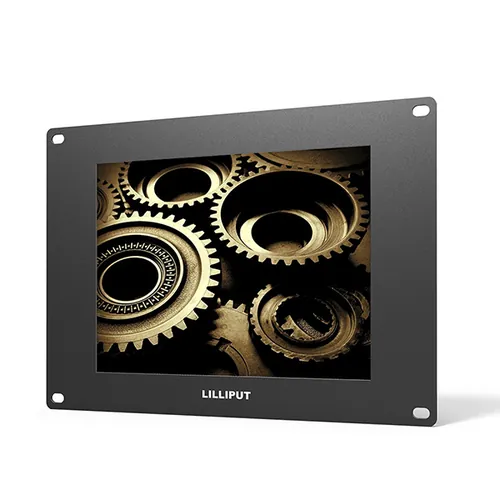

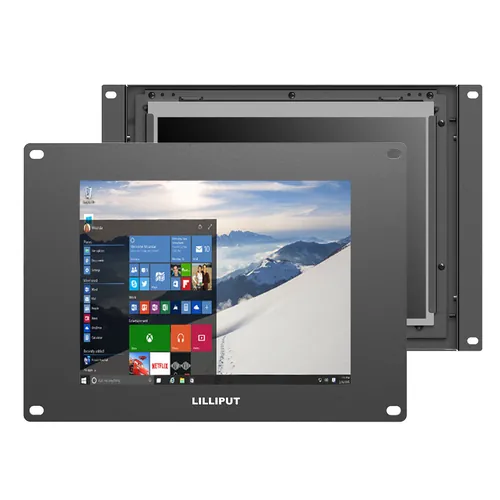

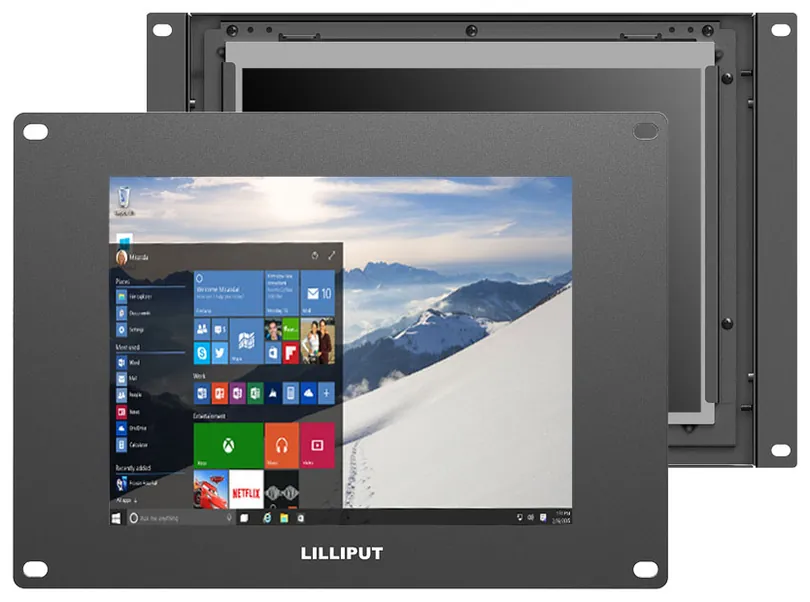

9.7 inch open frame monitor. Available with touch screen. For kiosks and industrial applications.
9.7 inch open frame monitor. Available with touch screen. For kiosks and industrial applications.
Discover TK970
Key Features
- 9.7 inch open frame monitor with 5-wire resistive touch screen (optional)
- 1024 x 768 LCD, 350 cd/m², 900:1 contrast, 4:3
- 1x HDMI, 1x DVI, 1x VGA, 1x Composite, versatile inputs
- DC 7 to 24V, ≤10 W; -20°C to 60°C operating
- 279.6 x 203.5 x 37.6 mm; 1.6 kg; panel or open frame
Product Enquiry
Request a quote or ask a question about the TK970. Our UK team will respond promptly.
Technical Data
Display
- Screen size
- 9.7 inch
- Aspect ratio
- 4:3
- Native resolution
- 1024 x 768
- Panel type
- LCD
- Brightness
- 350 cd/m²
- Contrast
- 900:1
- Viewing angle
- 174°/174° (H/V)
- Signal response time
- 20 ms
- Maximum refresh rate
- 60 Hz
- Touch screen
- 5-wire resistive (optional)

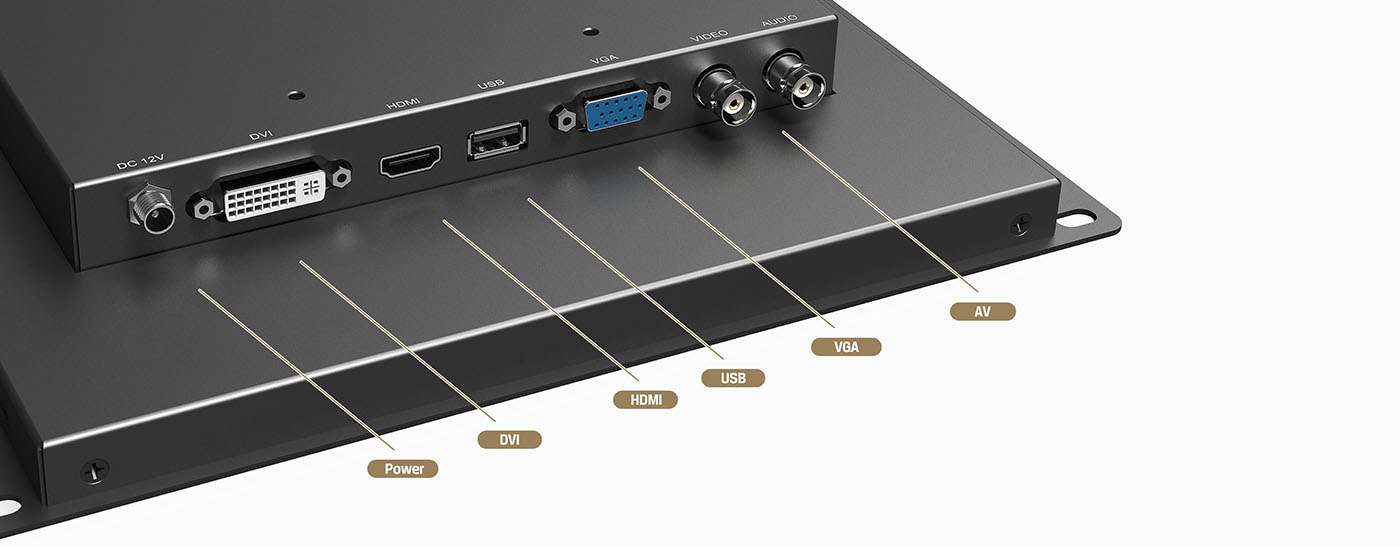

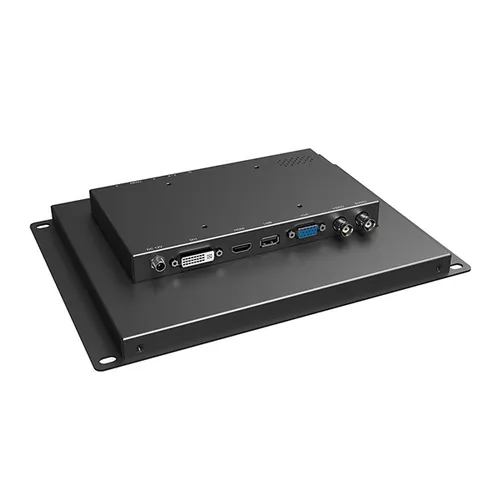

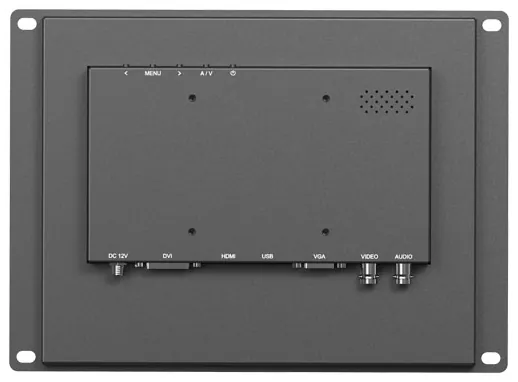

Connections

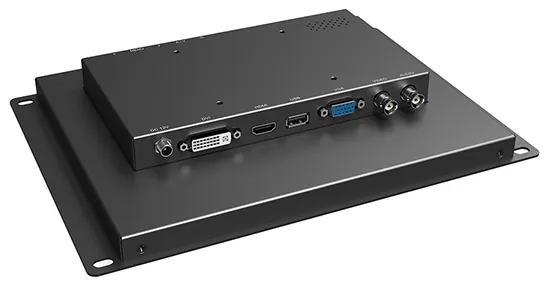

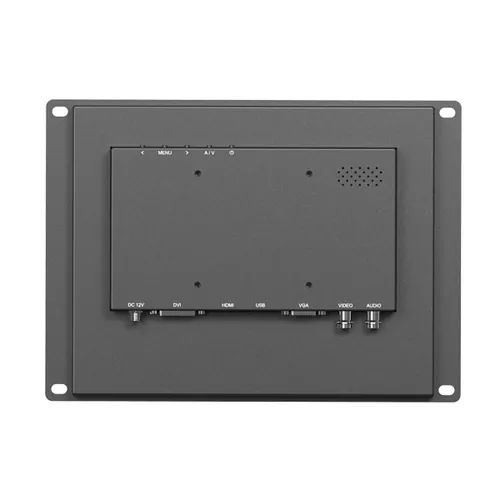

- Video inputs
- 1x HDMI, 1x DVI, 1x VGA, 1x Composite (RCA)
- Audio
- 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit)
Video Standards
- HDMI
- 1080p 50/60, 1080i 50/60, 720p 50/60
Power
- Input voltage
- DC 7 to 24V
- Power consumption
- ≤10 W
Environmental
- Operating temperature
- -20°C to 60°C
- Storage temperature
- -30°C to 70°C

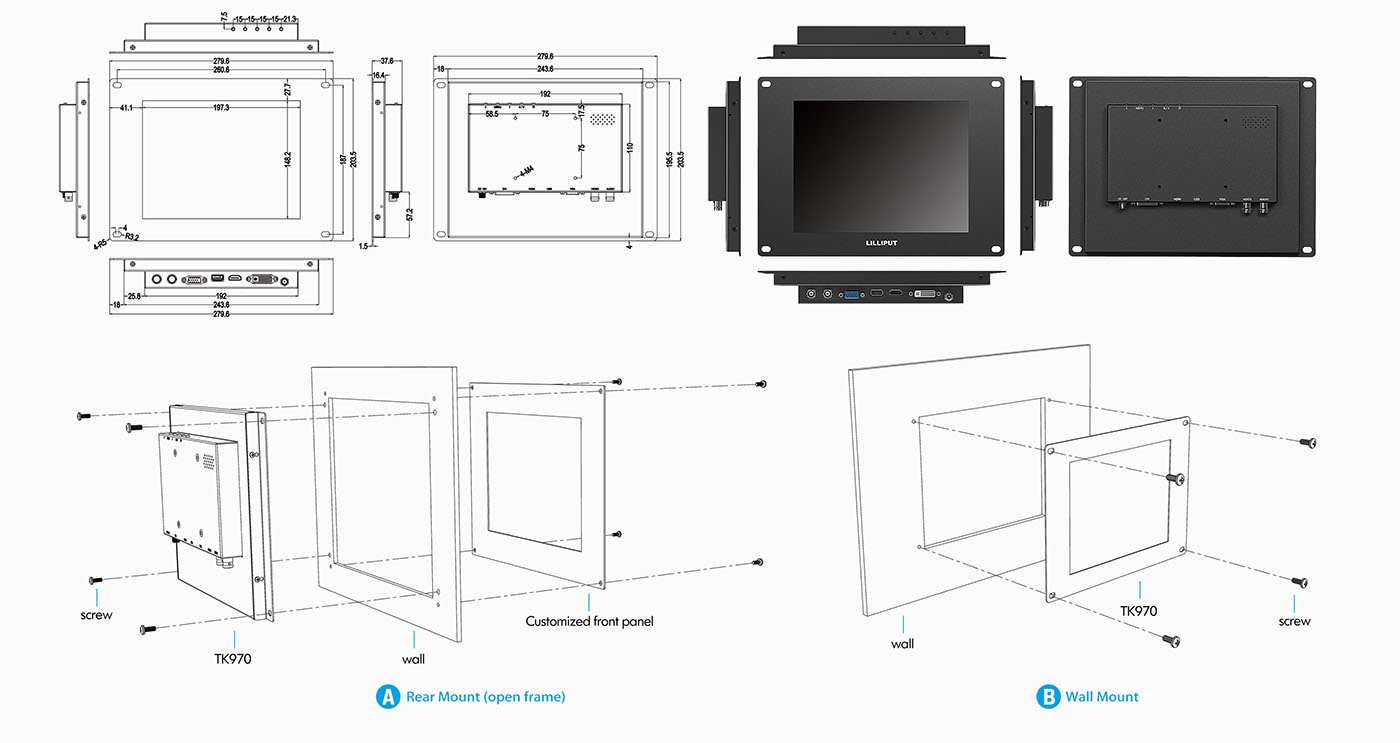

Mechanical
- Material
- Front panel: Glass; Rear panel: Metal
- Dimensions
- 279.6 x 203.5 x 37.6 mm
- Weight
- 1.6 kg

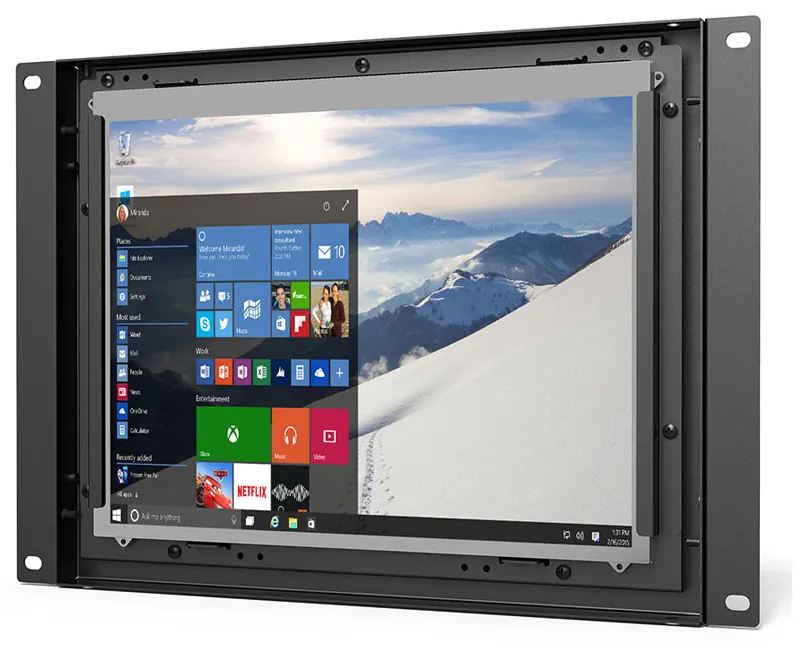

- Open frame
- 279.6 x 195.5 x 36.1 mm, 1.3 kg (optional)
Mounting

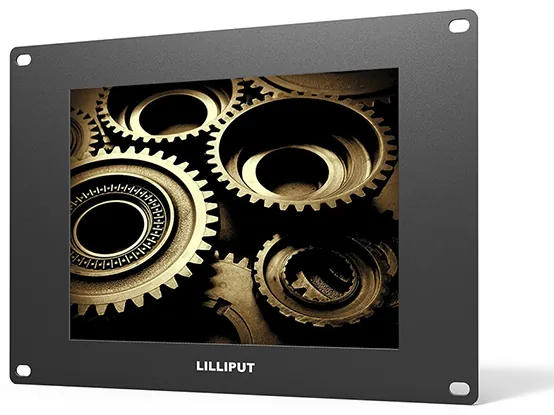

- Flush mount
- Flush panel mount bracket included
Accessories
Included
- 12V DC Adapter
- HDMI A-A Cable
- VGA Cable
- Audio BNC Cable
- Video BNC Cable
- CD Driver
- Manual
- Panel Bracket or Open Frame Bracket (2 choose 1, default panel)
Optional
- VESA Folding Bracket
- DVI Cable
Included (with Touch Screen)
- USB Cable (for touch)
- Touch Pen
Product Downloads
Similar Products
Compare key technical data across similar Lilliput products.
| Technical Data | TK970 | TK700 | TK701 | UM70 | UM80 | UM900 | UM1010 | TK1010 | TK1040 | TK1019 | TK1330 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Display | |||||||||||
| Screen size | 9.7 inch | 7 inch | 7 inch | 7 inch | 8 inch | 9.7 inch | 10.1 inch | 10.1 inch | 10.4 inch | 10.1 inch | 13.3 inch |
| Aspect ratio | 4:3 | 16:9 | 16:10 | 16:9 | 4:3 | 4:3 | 16:10 | 16:9 | 4:3 | 16:10 | 16:9 |
| Native resolution | 1024 x 768 | 800 x 480 | 800 x 480 | 800 x 480 | 800 x 480 | 1024 x 768 | 1024 x 600 | 1024 x 600 | 800 x 600 | 1920 x 1200 | 1920 x 1080 |
| Panel type | LCD | LCD | LCD | LCD | LCD | LCD | LCD | LCD | LCD | LCD | LCD |
| Brightness | 350 cd/m² | 1000 cd/m² | 1000 cd/m² | 250 cd/m² | 250 cd/m² | 300 cd/m² | 250 cd/m² | 250 cd/m² | 250 cd/m² | 1500 cd/m² | 300 cd/m² |
| Contrast | 900:1 | 1000:1 | 500:1 | 500:1 | 500:1 | 600:1 | 500:1 | 500:1 | 400:1 | 1000:1 | 800:1 |
| Viewing angle | 174°/174° (H/V) | 140°/120° (H/V) | 140°/120° (H/V) | 140°/120° (H/V) | 140°/120° (H/V) | 178°/178° (H/V) | 140°/110° (H/V) | 140°/110° (H/V) | 130°/110° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) |
| Signal response time | 20 ms | 20 ms | 20 ms | 20 ms | 20 ms | 20 ms | 20 ms | 20 ms | 20 ms | 20 ms | 20 ms |
| Maximum refresh rate | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
| Touch screen | 5-wire resistive (optional) | 4-wire resistive (optional) | 10-point PCAP (optional) | 4-wire resistive (optional) | 4-wire resistive (optional) | 4-wire resistive (5-wire optional) (optional) | 4-wire resistive (5-wire optional) (optional) | 4-wire resistive (optional) | 5-wire resistive (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) |
| LED lifetime | — | — | — | — | — | — | — | — | — | 50,000 h | — |
| Connections | |||||||||||
| Video inputs | 1x HDMI, 1x DVI, 1x VGA, 1x Composite (RCA) | 1x HDMI, 1x VGA, 2x Composite (RCA) | 1x HDMI 1.4b, 1x VGA, 2x Video (RCA) | 1x USB Type-A | 1x USB Type-A | 1x HDMI 1.4, 1x Mini USB | 1x USB Type-A | 1x HDMI, 1x DVI, 1x VGA, 1x Composite (RCA) | 1x HDMI, 1x DVI, 1x VGA, 1x YPbPr, 2x Composite (RCA) | 1x HDMI 1.4b, 1x VGA | 1x HDMI, 1x DVI, 1x VGA, 1x Composite |
| Audio | 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, HDMI 2ch, 3.5 mm ear jack (2ch 48kHz 24-bit), 3.5 mm audio input | — | — | 2x Built-in speakers, 3.5 mm ear jack (2ch 48kHz 24-bit) | — | 2x Built-in speakers, 3.5 mm ear jack (2ch 48kHz 24-bit) | 2x Built-in speakers, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit) | 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker |
| Additional connections | — | — | 1x Mini USB (touch), 1x Micro USB (upgrade) (optional) | 1x USB (for touch) (optional) | 1x USB (for touch) (optional) | 1x Mini USB (for touch) (optional) | 1x USB (for touch) (optional) | — | — | 1x USB-C (touch, video, power) (optional) | — |
| Video Standards | |||||||||||
| HDMI | 1080p 50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 50/60, 1080i 50/60, 720p 50/60 | — | — | — | — | — | 1080p 50/60, 1080i 50/60, 720p 50/60 | 1080p 50/60, 1080i 50/60, 720p 50/60 | — | 1080p 50/60, 1080i 50/60, 720p 50/60 |
| HDMI 1.4b | — | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — | — | — | — | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — |
| HDMI 1.4 | — | — | — | — | — | 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — | — | — | — |
| VGA | — | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | — | — | — | — | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — |
| USB Type-C | — | — | — | — | — | — | — | — | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — |
| Power | |||||||||||
| Input voltage | DC 7 to 24V | DC 12V | DC 12 to 24V | DC 5V (USB) | DC 5V (USB) | DC 5V | DC 5V | DC 7 to 24V | DC 12V | DC 12 to 24V | DC 7 to 24V |
| Power consumption | ≤10 W | ≤4.5 W | ≤8.5 W (12V) | ≤4.5 W | ≤4.5 W | ≤9 W | ≤6 W | ≤5.5 W | ≤8 W | ≤19 W (12V) | ≤8 W |
| Operational Features | |||||||||||
| Sensors | — | — | — | — | — | — | — | — | — | Ambient light auto-dimming | — |
| Environmental | |||||||||||
| Operating temperature | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 70°C | -20°C to 60°C |
| Storage temperature | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 80°C | -20°C to 70°C |
| IP rating | — | — | IP64 front panel (IEC60529) | — | — | — | — | — | — | IP65 front panel (IEC60529) | — |
| IK rating | — | — | — | — | — | — | — | — | — | IK07 (IEC62262/EN62262) | — |
| Hardness | — | — | — | — | — | — | — | — | — | 7H | — |
| Mechanical | |||||||||||
| Material | Front panel: Glass; Rear panel: Metal | Front panel: Glass; Rear panel: Metal | Front panel: Glass; Rear panel: Metal | — | — | — | — | Front panel: Glass; Rear panel: Metal | Front panel: Glass; Rear panel: Metal | Front panel: Glass; Rear panel: Metal | Front panel: Glass; Rear panel: Metal |
| Dimensions | 279.6 x 203.5 x 37.6 mm | 226.8 x 124 x 34.7 mm | 210 x 131 x 34.2 mm | 188 x 123 x 25.8 mm | 200 x 156 x 25 mm | 242 x 195 x 15 mm | 253.5 x 162.5 x 34 mm (61 mm with bracket) | 295 x 175 x 33.5 mm | 286.8 x 202.8 x 38.8 mm | 264 x 183 x 35.6 mm | 333.5 x 220 x 34.5 mm |
| Weight | 1.6 kg | 970 g | 710 g | 385 g | 536 g | 675 g (without bracket), 1175 g (with bracket) | 1004 g | 1.4 kg | 1.7 kg | 1.31 kg | 1.9 kg |
| Open frame | 279.6 x 195.5 x 36.1 mm, 1.3 kg (optional) | 279.6 x 195.5 x 36.1 mm, 950 g (optional) | — | — | — | — | — | — | — | — | — |
| Mounting | |||||||||||
| Flush mount | Flush panel mount bracket included | — | — | — | — | — | — | — | Flush panel mount bracket included | Flush panel clamps included | — |
| Mounting Screws | — | — | 4x Wall Mount Screws | — | — | — | — | — | — | 4x Wall Mount Screws | 4x Wall Mount Screws |
| VESA mount | — | — | — | — | 75 x 75 mm | 75 x 75 mm | 75 x 75 mm | — | — | 75 x 75 mm | 75 x 75 mm |
| Stand | — | — | — | — | — | — | — | — | — | Foldable VESA 75 Stand (optional) | Folding VESA 100 Desktop Stand (optional) |
