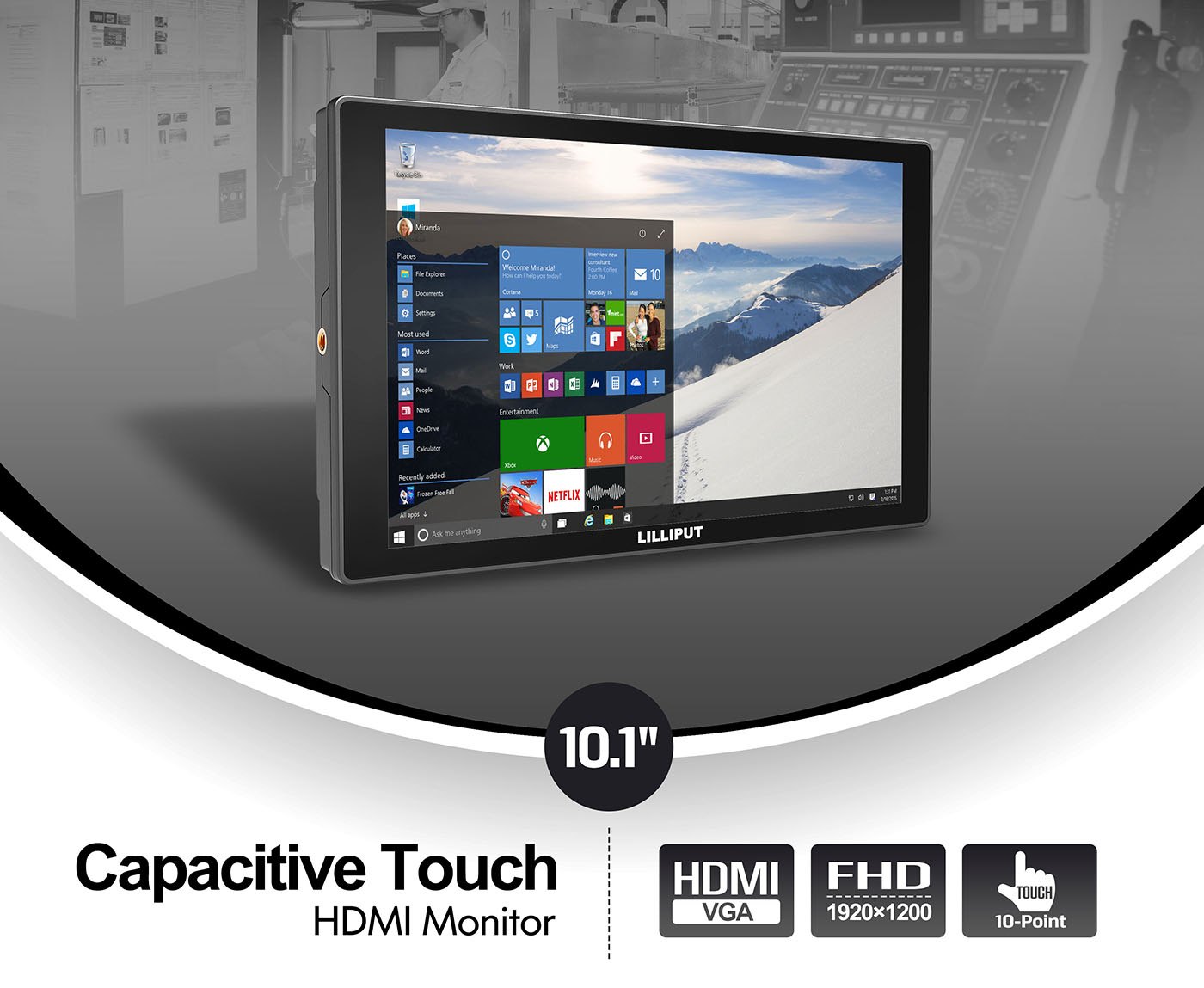

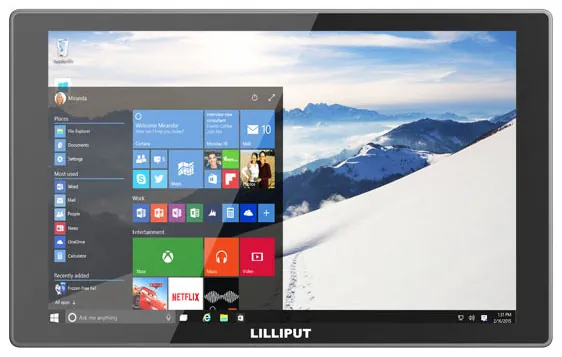

Key Features
- 10.1 inch 1920 x 1200 LCD, 320 cd/m², 1000:1 contrast, 16:10

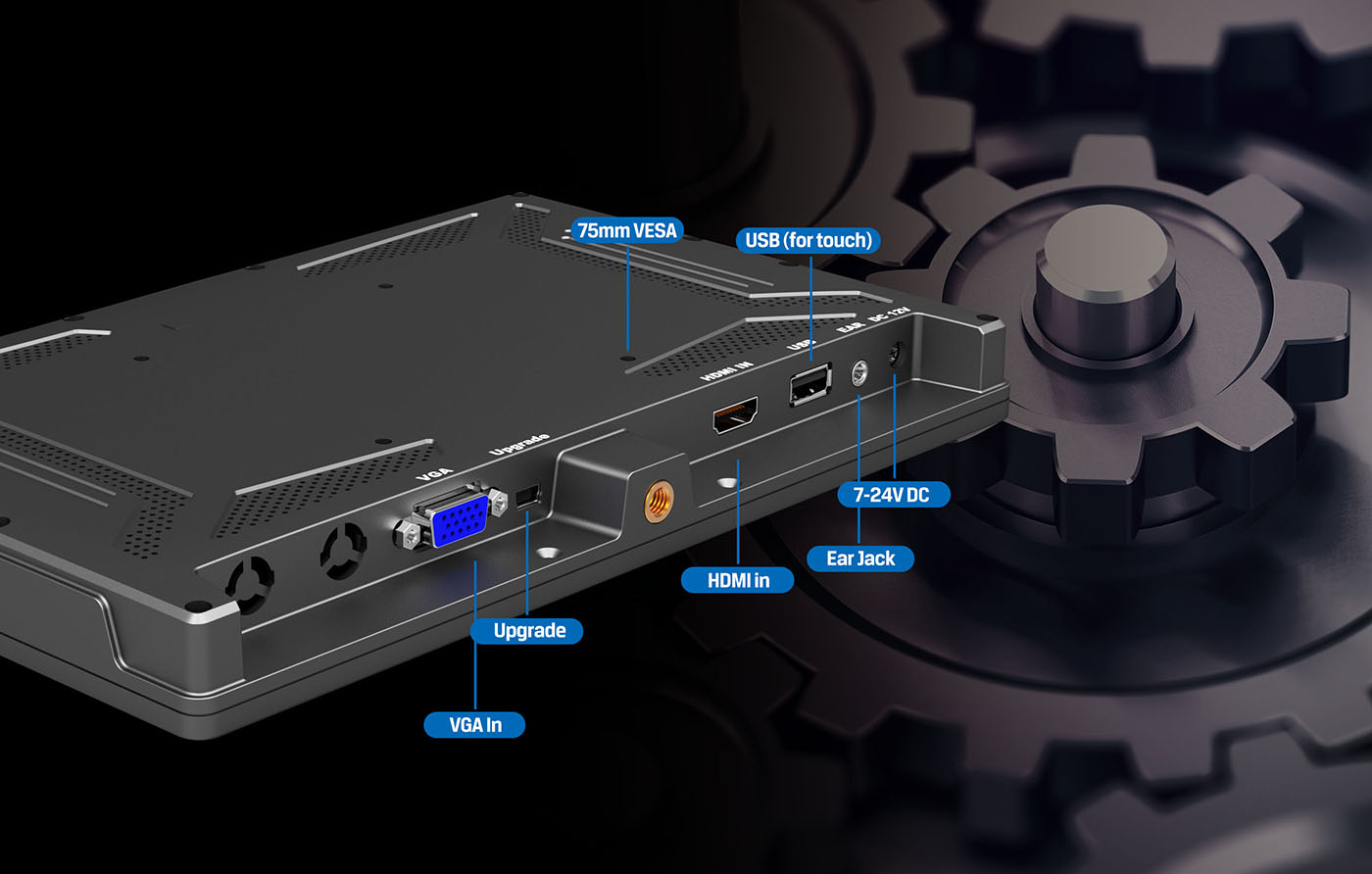

- 1x HDMI 1.4, 1x VGA, USB for touch on touch variant
- DC 7 to 24V, ≤10 W; 0°C to 50°C operating
- 252 x 157 x 25 mm; 535 g; VESA
Product Enquiry
Request a quote or ask a question about the FA1016. Our UK team will respond promptly.
Technical Data
Display
- Screen size
- 10.1 inch
- Aspect ratio
- 16:10
- Native resolution
- 1920 x 1200
- Panel type
- LCD
- Brightness
- 320 cd/m²
- Contrast
- 1000:1
- Viewing angle
- 175°/175° (H/V)
- Touch screen
- 10-point PCAP (optional)

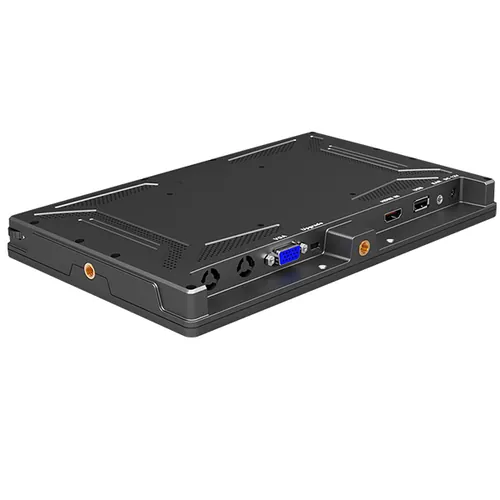

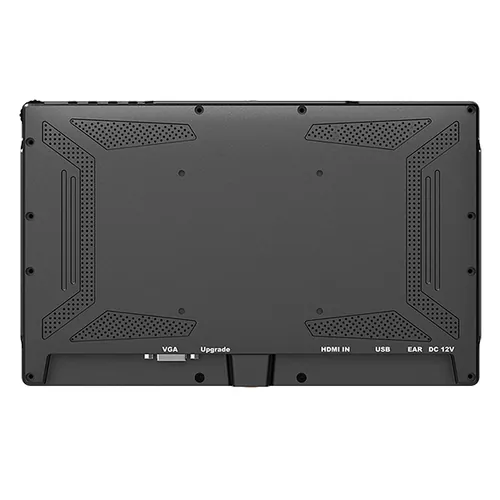

Connections
- Video inputs
- 1x HDMI 1.4, 1x VGA
- Audio
- 1x Built-in speaker, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit)
- Additional connections
- 1x USB (for touch) (optional)
Video Standards
- HDMI 1.4
- 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- VGA
- 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
Power
- Input voltage
- DC 7 to 24V
- Power consumption
- ≤10 W
Environmental
- Operating temperature
- 0°C to 50°C
- Storage temperature
- -20°C to 60°C

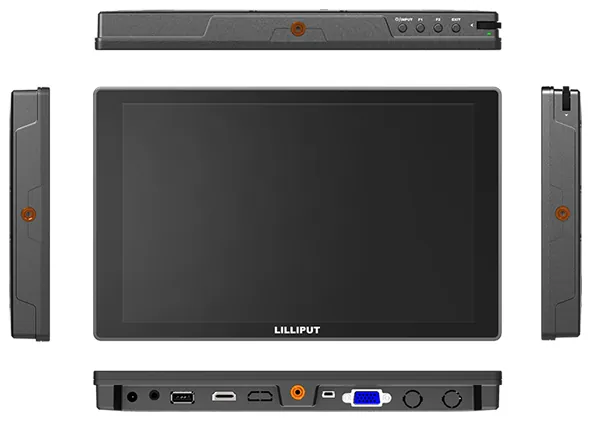

Mechanical

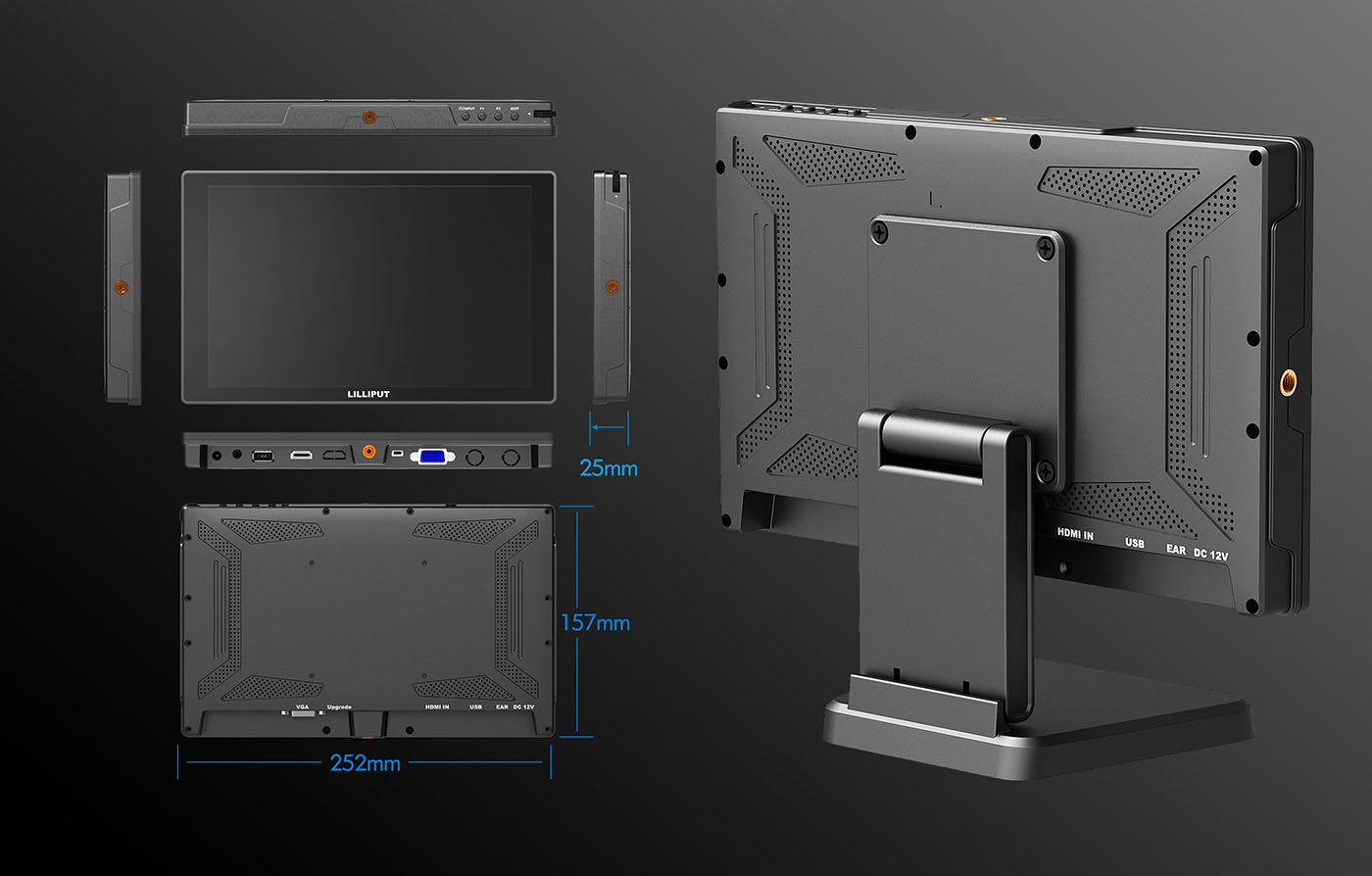

- Dimensions
- 252 x 157 x 25 mm
- Weight
- 535 g

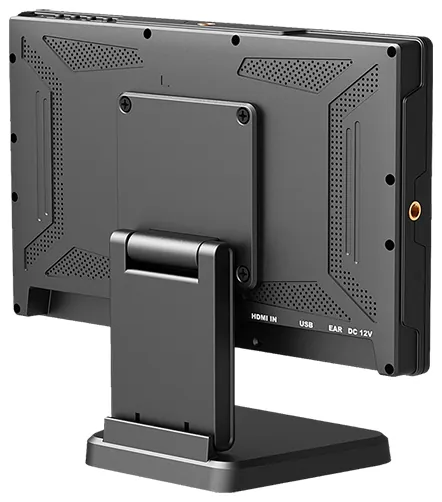

Mounting
- VESA mount
- 75 x 75 mm
Accessories
Included
- 12V DC Adapter
- HDMI A-A Cable
- VGA Cable
- CD Driver
- Manual
Optional
- VESA Folding Bracket
- Gimbal bracket
Included (with Touch Screen)
- USB Cable (Touch Function)
Product Downloads
Similar Products
Compare key technical data across similar products.
| Technical Data | FA1016 | FA1019 | FA1014 | FA1000 | UM70 | UM80 | UM900 | UM1010 | FA1210 | TK1019 | FA1330 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Display | |||||||||||
| Screen size | 10.1 inch | 10.1 inch | 10.1 inch | 9.7 inch | 7 inch | 8 inch | 9.7 inch | 10.1 inch | 12.1 inch | 10.1 inch | 13.3 inch |
| Aspect ratio | 16:10 | 16:10 | 16:10 | 4:3 | 16:9 | 4:3 | 4:3 | 16:10 | 4:3 | 16:10 | 16:9 |
| Native resolution | 1920 x 1200 | 1920 x 1200 | 1280 x 800 | 1024 x 768 | 800 x 480 | 800 x 480 | 1024 x 768 | 1024 x 600 | 1024 x 768 | 1920 x 1200 | 1920 x 1080 |
| Panel type | LCD | LCD | LCD | LCD | LCD | LCD | LCD | LCD | LCD | LCD | LCD |
| Brightness | 320 cd/m² | 1500 cd/m² | 350 cd/m² | 420 cd/m² | 250 cd/m² | 250 cd/m² | 300 cd/m² | 250 cd/m² | 900 cd/m² | 1500 cd/m² | 300 cd/m² |
| Contrast | 1000:1 | 1000:1 | 800:1 | 900:1 | 500:1 | 500:1 | 600:1 | 500:1 | 900:1 | 1000:1 | 800:1 |
| Viewing angle | 175°/175° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) | 160°/174° (H/V) | 140°/120° (H/V) | 140°/120° (H/V) | 178°/178° (H/V) | 140°/110° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) |
| Touch screen | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | 5-wire resistive (optional) | 4-wire resistive (optional) | 4-wire resistive (optional) | 4-wire resistive (5-wire optional) (optional) | 4-wire resistive (5-wire optional) (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | Capacitive touch (optional) |
| LED lifetime | — | 50,000 h | — | — | — | — | — | — | — | 50,000 h | — |
| Connections | |||||||||||
| Video inputs | 1x HDMI 1.4, 1x VGA | 1x HDMI, 1x VGA, 1x USB Type-C | 1x HDMI, 1x VGA, 1x Composite | 1x HDMI, 1x VGA, 2x Composite | 1x USB Type-A | 1x USB Type-A | 1x HDMI 1.4, 1x Mini USB | 1x USB Type-A | 1x HDMI 1.4, 1x VGA, 1x Composite | 1x HDMI 1.4b, 1x VGA | 1x HDMI, 1x VGA, 1x DisplayPort |
| Audio | 1x Built-in speaker, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, HDMI 8ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, 3.5 mm ear jack | — | — | 2x Built-in speakers, 3.5 mm ear jack (2ch 48kHz 24-bit) | — | 2x Built-in speakers, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit) | 2x Built-in speakers, 3.5 mm ear jack (2ch 48kHz 24-bit) |
| Additional connections | 1x USB (for touch) (optional) | 1x USB Type-C (touch, video, power) (optional) | — | 1x Mini USB (for touch) (optional) | 1x USB (for touch) (optional) | 1x USB (for touch) (optional) | 1x Mini USB (for touch) (optional) | 1x USB (for touch) (optional) | 1x USB (for touch) (optional) | 1x USB-C (touch, video, power) (optional) | 1x USB (for touch) (optional) |
| Video Standards | |||||||||||
| HDMI 1.4 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — | — | — | — | 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — |
| VGA | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | — | — | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| HDMI | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 1080p 50/60, 1080i 50/60, 720p 50/60 | 1080p 50/60, 1080i 50/60, 720p 50/60 | — | — | — | — | — | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| HDMI 1.4b | — | — | — | — | — | — | — | — | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — |
| Composite | — | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | — | — | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | — |
| DisplayPort | — | — | — | — | — | — | — | — | — | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| Power | |||||||||||
| Input voltage | DC 7 to 24V | DC 12 to 24V | DC 7 to 24V | DC 7 to 24V | DC 5V (USB) | DC 5V (USB) | DC 5V | DC 5V | DC 12 to 24V | DC 12 to 24V | DC 7 to 24V |
| Power consumption | ≤10 W | ≤19 W (12V) | ≤10 W | ≤10 W | ≤4.5 W | ≤4.5 W | ≤9 W | ≤6 W | <13 W | ≤19 W (12V) | ≤12 W (12V) |
| Operational Features | |||||||||||
| Markers | — | — | Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | — | — | — | — | — | — | — | — |
| Sensors | — | — | — | — | — | — | — | — | — | Ambient light auto-dimming | — |
| Environmental | |||||||||||
| Operating temperature | 0°C to 50°C | -20°C to 60°C | 0°C to 50°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -35°C to 85°C | -20°C to 70°C | 0°C to 50°C |
| Storage temperature | -20°C to 60°C | -30°C to 80°C | -20°C to 60°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -35°C to 85°C | -30°C to 80°C | -20°C to 60°C |
| IP rating | — | IP65 (with extension cable) | — | — | — | — | — | — | — | IP65 front panel (IEC60529) | — |
| IK rating | — | — | — | — | — | — | — | — | — | IK07 (IEC62262/EN62262) | — |
| Hardness | — | — | — | — | — | — | — | — | — | 7H | — |
| Mechanical | |||||||||||
| Dimensions | 252 x 157 x 25 mm | 251 x 170 x 33 mm | 250 x 170 x 32.3 mm | 234.4 x 192.5 x 29 mm | 188 x 123 x 25.8 mm | 200 x 156 x 25 mm | 242 x 195 x 15 mm | 253.5 x 162.5 x 34 mm (61 mm with bracket) | 284.4 x 224.1 x 33.4 mm | 264 x 183 x 35.6 mm | 320 x 208 x 26.5 mm |
| Weight | 535 g | 820 g | 560 g | 625 g | 385 g | 536 g | 675 g (without bracket), 1175 g (with bracket) | 1004 g | 1.27 kg | 1.31 kg | 1.15 kg |
| Mounting | |||||||||||
| VESA mount | 75 x 75 mm | 75 x 75 mm | — | 75 x 75 mm | — | 75 x 75 mm | 75 x 75 mm | 75 x 75 mm | 75 x 75 mm | 75 x 75 mm | 75 x 75 mm |
| Mounting Screws | — | — | — | — | — | — | — | — | — | 4x Wall Mount Screws | — |
| Stand | — | — | — | — | — | — | — | — | — | Desktop Foldable Stand (optional) | — |
| Control | |||||||||||
| I/O | — | — | 1 | — | — | — | — | — | — | — | — |
| Extension cable | |||||||||||
| HDMI extension cable | — | HDMI, USB-A (for touch) | — | — | — | — | — | — | — | — | — |
| VGA extension cable | — | VGA, USB-A (for touch) | — | — | — | — | — | — | — | — | — |
