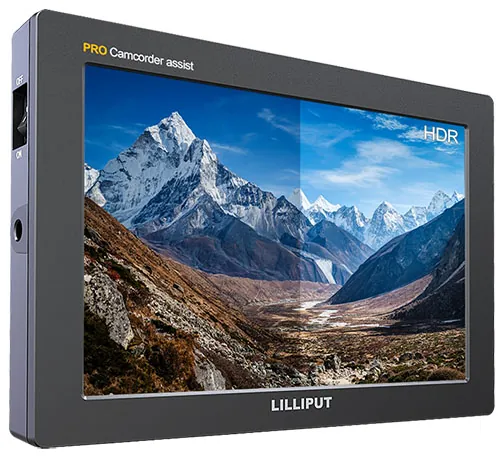

7 inch field monitor. 1920 x 1200, 500 cd/m². 1x 3G-SDI and 1x HDMI 1.4 with loop-through and SDI/HDMI cross conversion. HDR, 3D LUT. 405 g. Shoe mount and VESA mount plate. NP-F and LP-E6 battery compatible.
7 inch field monitor. 1920 x 1200, 500 cd/m². 1x 3G-SDI and 1x HDMI 1.4 with loop-through and SDI/HDMI cross conversion. HDR, 3D LUT. 405 g. Shoe mount and VESA mount plate. NP-F and LP-E6 battery compatible.
Key Specifications
Display
- 7"
- 1920 x 1200
- 500 cd/m²
Connections
- 3G-SDI
- HDMI 1.4
Operational
All Technical Data
- 3D LUT
- Waveform
- Markers
Discover Q7 Pro
Key Features

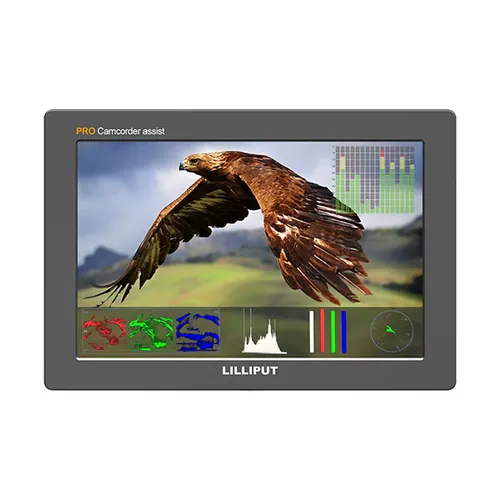

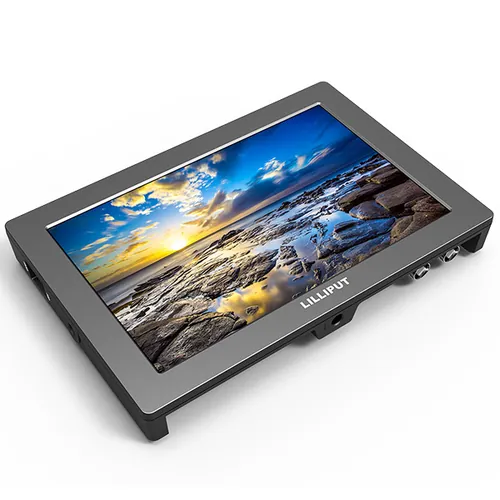

- 7 inch 1920 x 1200 display, 500 cd/m², 1000:1 contrast, 16:10 aspect ratio
- 1x 3G-SDI and 1x HDMI 1.4 input/output with loop-through and SDI/HDMI cross conversion
- HDR ST 2084 (300/1000/10000 cd/m²) and HLG; 3D LUT (.cube); Sony SLog, SLog2, SLog3 plus user LUTs

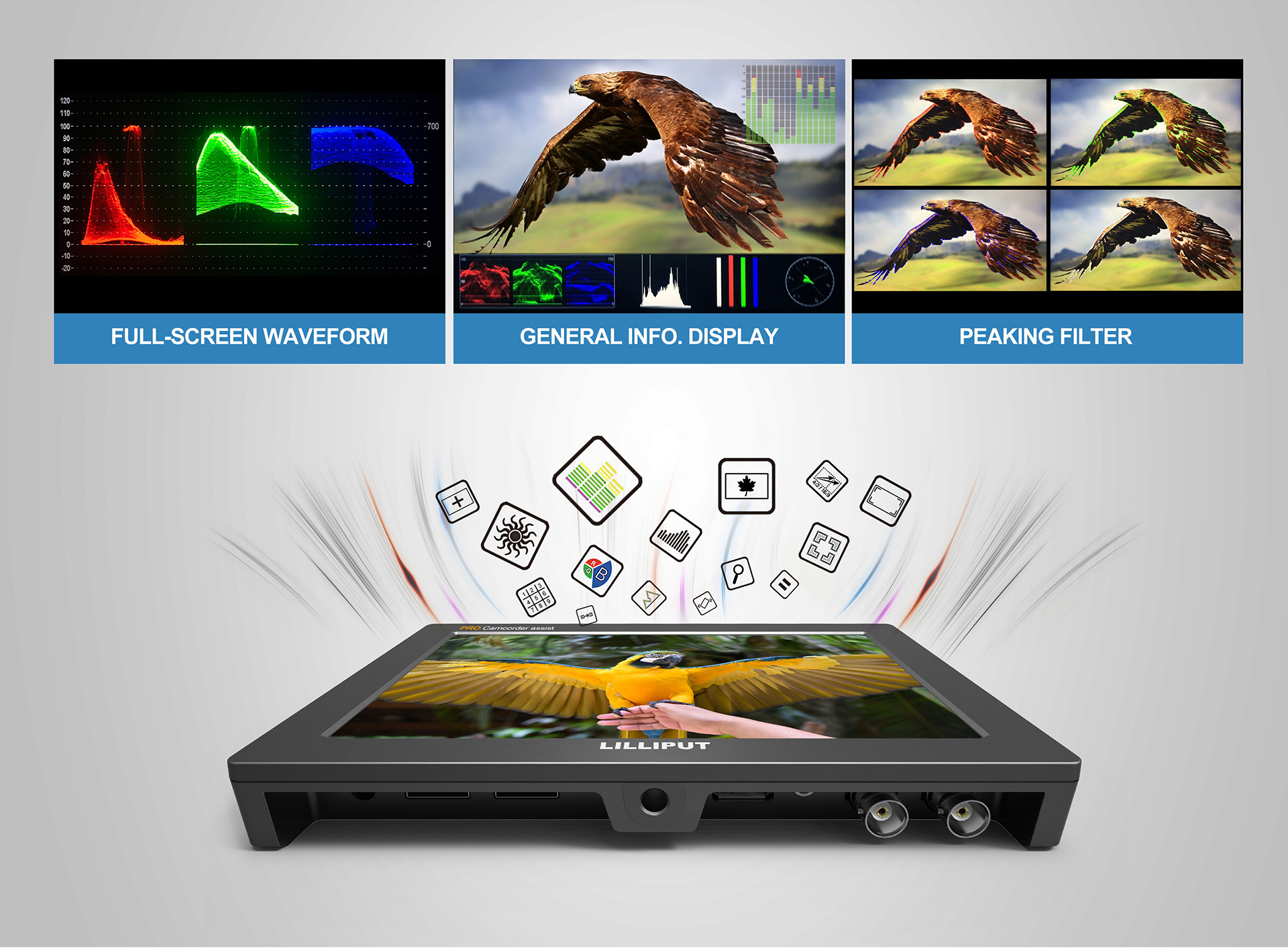

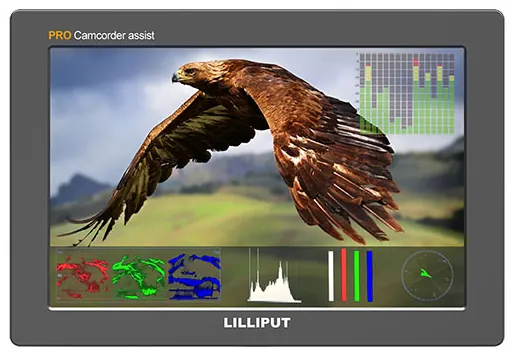

- Waveform, peaking, false colour, exposure, histogram, level meter; Rec.709 calibration with optional calibration unit
- 405 g; 182 x 124 x 22 mm; shoe mount and VESA mount plate included
- Sony NP-F (F970) and Canon LP-E6 battery plates included; optional V-Lock / Anton Bauer mount
Buy the Q7 Pro From an Authorised Reseller
Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the Q7 Pro now, or if your country is not listed, browse all authorised resellers here.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data
Display
- Screen size
- 7 inch
- Aspect ratio
- 16:10
- Native resolution
- 1920 x 1200
- Brightness
- 500 cd/m²
- Contrast
- 1000:1
- Viewing angle
- 170°/170° (H/V)
- HDR
- ST 2084 300, ST 2084 1000, ST 2084 10000, HLG
- Supported log formats
- SLog, SLog2, SLog3, User
- LUT support
- 3D-LUT (.cube format)
- Anamorphic de-squeeze
- 2x, 1.5x, 1.33x

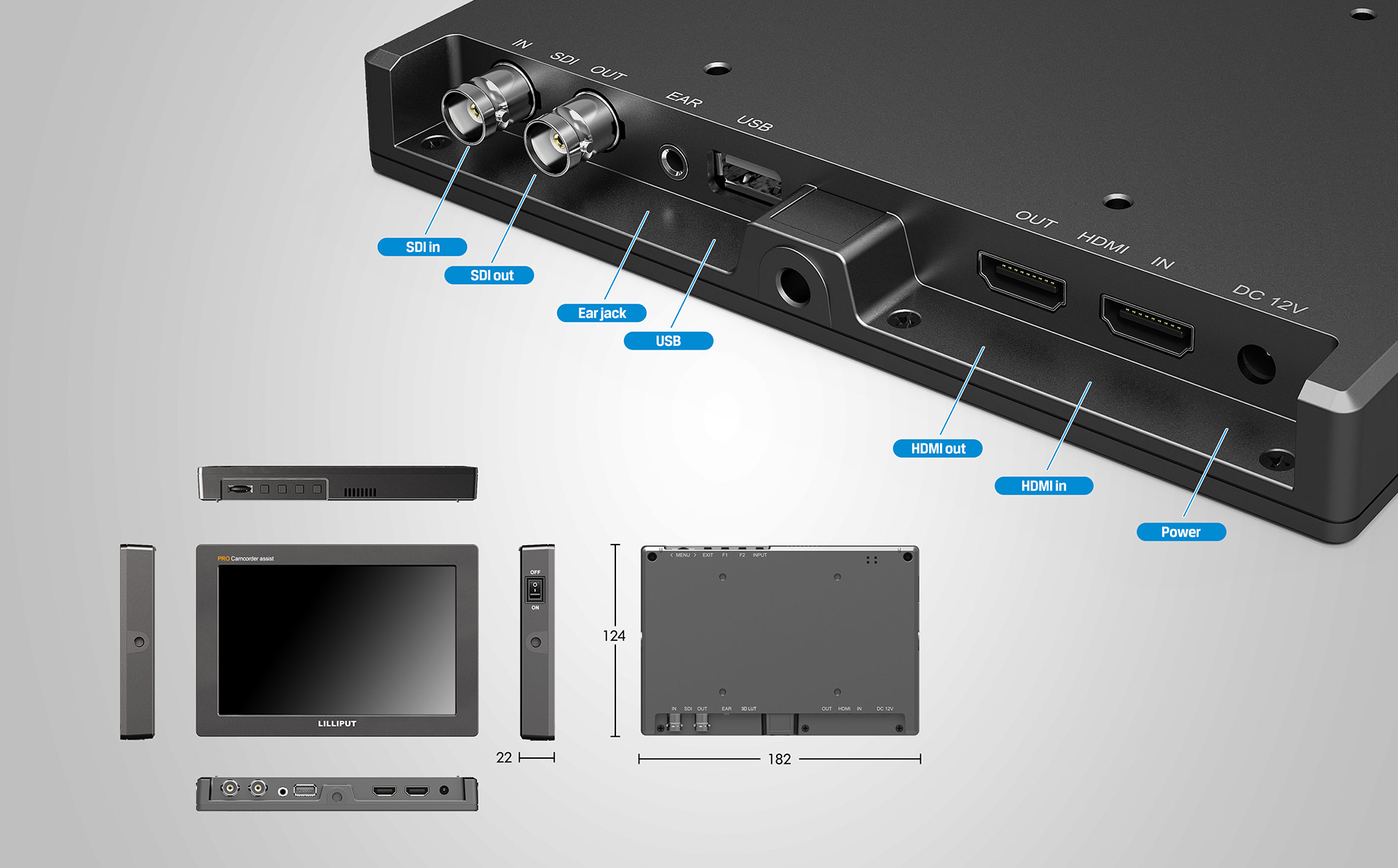

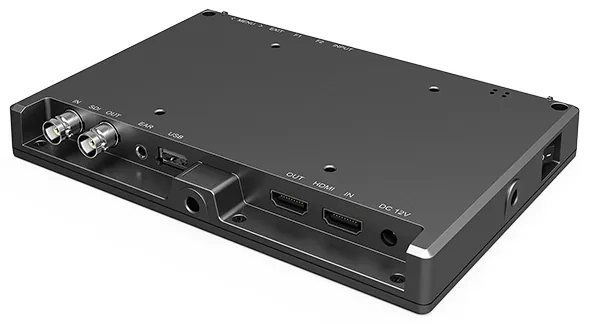

Connections
- Video inputs
- 1x 3G-SDI, 1x HDMI 1.4
- Video outputs
- 1x 3G-SDI, 1x HDMI 1.4
- USB
- 1x USB (3D LUT load)
- Audio
- 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker
Video Standards
- 3G-SDI
- 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- HDMI 1.4
- 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
Scopes
- Video analysis
- Waveform, Vector, Peaking, False colour, Exposure, Histogram, Check field
- Audio analysis
- Level meter
Power
- Input voltage
- DC 7 to 24V
- Power consumption
- ≤12 W
- Compatible batteries
- Sony NP-F (F970), Canon LP-E6; V-Lock or Anton Bauer mount (optional)
- Input voltage (battery)
- 7.2V nominal
Environmental
- Operating temperature
- 0°C to 50°C
- Storage temperature
- -20°C to 60°C
Mechanical
- Dimensions
- 182 x 124 x 22 mm
- Weight
- 405 g
Mounting
- Shoe mount
- 1/4 inch BSW
Operational Features
- Function buttons
- F1 and F2 user-definable (default: Waveform, Scan)
- Markers
- Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 2.0X, 2.0X MAG; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
- Image mirroring
- Vertical flip, Horizontal flip
- Cross conversion
- HDMI 1.4 ↔ 3G-SDI (bidirectional)
- Selectable colour spaces
- Rec.709, EBU, Native, SMPTE-C
- Colour temperature
- 5500K, 5600K, 6500K, 7500K, 9300K, User
- Gamma
- 1.8 to 2.8
- Waveform
- Multi, Y, YCbCr, RGB, RGB Full
- Histogram
- Y, RGB, Colour
- Peaking
- Red, Green, Blue, White, Black
- Time code
- LTC, VITC (SDI only)
- Freeze
- On/Off
- DSLR presets
- 5D2, 5D3
- Comparison
- Colour space, Gamma
Accessories
Included
- 12V DC adapter

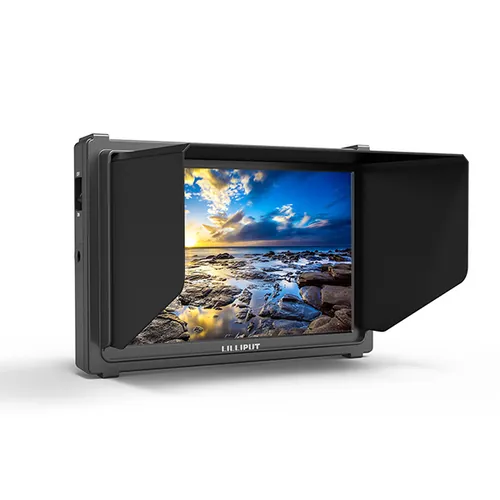

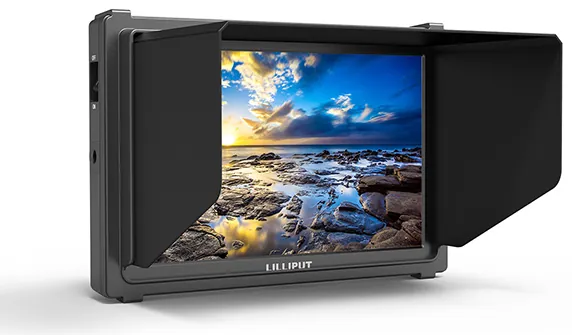

- Folding sun shade
- HDMI A/C cable
- Shoe mount
- VESA battery bracket
- Sony NP-F (F970) battery plate
- Canon LP-E6 battery plate
- VESA mount plate
- User manual
Optional
- V-Lock / Anton Bauer mount
- Battery
Product Downloads
Similar Products
Compare key technical data across similar Lilliput products.
| Technical Data | Q7 Pro | Q7-12G | FS7 | H7S |
|---|---|---|---|---|
| Display | ||||
| Screen size | 7 inch | 7 inch | 7 inch | 7 inch |
| Aspect ratio | 16:10 | 16:10 | 16:10 | 16:10 |
| Native resolution | 1920 x 1200 | 1920 x 1200 | 1920 x 1200 | 1920 x 1200 |
| Brightness | 500 cd/m² | 2000 cd/m² | 500 cd/m² | 1800 cd/m² |
| Contrast | 1000:1 | 1200:1 | 1000:1 | 1200:1 |
| Viewing angle | 170°/170° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) | 160°/160° (H/V) |
| HDR | ST 2084 300, ST 2084 1000, ST 2084 10000, HLG | ST 2084 300/1000/10000 cd/m², HLG | — | HLG, ST 2084 300, ST 2084 1000, ST 2084 10000 |
| Supported log formats | SLog, SLog2, SLog3, User | SLog2/SLog3, CLog, NLog, ArriLog, JLog or User | — | SLog2, SLog3, User (1 to 6) |
| LUT support | 3D-LUT (.cube format) | 3D-LUT (.cube format) | — | 3D-LUT (.cube format, 17x17x17 BGR) |
| Anamorphic de-squeeze | 2x, 1.5x, 1.33x | — | — | — |
| Panel type | — | LCD | IPS | LCD |
| Connections | ||||
| Video inputs | 1x 3G-SDI, 1x HDMI 1.4 | 2x 12G-SDI, 1x HDMI 2.0, 1x Tally | 1x 3G-SDI, 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 1.4 |
| Video outputs | 1x 3G-SDI, 1x HDMI 1.4 | 2x 12G-SDI, 1x HDMI 2.0 (4K 60Hz) | 1x 3G-SDI, 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 1.4 |
| USB | 1x USB (3D LUT load) | — | — | — |
| Audio | 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker | 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker |
| Video Standards | ||||
| 3G-SDI | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| HDMI 1.4 | 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| 12G-SDI | — | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 | — | — |
| HDMI 2.0 | — | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 | — | — |
| Scopes | ||||
| Video analysis | Waveform, Vector, Peaking, False colour, Exposure, Histogram, Check field | Waveform, Peaking, False colour, Exposure, Histogram | Peaking, False colour, Exposure, Histogram | Peaking, False colour, Exposure, Histogram, Check field |
| Audio analysis | Level meter | Level meter | Level meter | Level meter |
| Power | ||||
| Input voltage | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V |
| Power consumption | ≤12 W | ≤20 W (12V) | ≤12 W | ≤15 W |
| Compatible batteries | Sony NP-F (F970), Canon LP-E6; V-Lock or Anton Bauer mount (optional) | Sony NP-F (F970) via VESA 75 plate | Sony NP-F (F970), Canon LP-E6 | Sony NP-F series (F970) |
| Input voltage (battery) | 7.2V nominal | — | 7.2V nominal | 7.2V nominal |
| Environmental | ||||
| Operating temperature | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C |
| Storage temperature | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -10°C to 60°C |
| Mechanical | ||||
| Dimensions | 182 x 124 x 22 mm | 186 x 128 x 32.5 mm | 182 x 124 x 22 mm | 225 x 155 x 23 mm |
| Weight | 405 g | 785 g | 405 g | 535 g |
| Mounting | ||||
| Shoe mount | 1/4 inch BSW | 3x 1/4 inch BSW | 3x 1/4 inch BSW | 4x 1/4 inch BSW |
| VESA mount | — | 75 x 75 mm (battery plate included) | — | — |
| Gimbal bracket | — | Included | — | — |
| Operational Features | ||||
| Function buttons | F1 and F2 user-definable (default: Waveform, Scan) | User-definable (default: Peaking) | User-definable (peaking, level meter, centre marker, aspect marker, false colour, exposure, histogram, etc.) | F1 user-definable; INPUT key switches HDMI and SDI |
| Markers | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 2.0X, 2.0X MAG; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.33X, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off |
| Image mirroring | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | — | Vertical flip, Horizontal flip |
| Cross conversion | HDMI 1.4 ↔ 3G-SDI (bidirectional) | — | — | — |
| Selectable colour spaces | Rec.709, EBU, Native, SMPTE-C | — | — | — |
| Colour temperature | 5500K, 5600K, 6500K, 7500K, 9300K, User | — | — | 6500K, 7500K, 9300K, User |
| Gamma | 1.8 to 2.8 | — | — | 1.8 to 2.6 |
| Waveform | Multi, Y, YCbCr, RGB, RGB Full | — | — | — |
| Histogram | Y, RGB, Colour | — | — | — |
| Peaking | Red, Green, Blue, White, Black | — | — | Red, Green, Blue, White, Black |
| Time code | LTC, VITC (SDI only) | — | — | LTC, VITC |
| Freeze | On/Off | — | — | On/Off |
| DSLR presets | 5D2, 5D3 | — | — | 5D2, 5D3 |
| Comparison | Colour space, Gamma | — | — | — |
| Multi Viewer | — | Picture-in-Picture | — | — |
| Tally | — | — | — | Red, Green |
| Display scan | — | — | — | Fullscan, Overscan, Underscan |
| Zoom | — | — | — | 1.5x, 2x, 3x, 4x |
