3G-SDI Wall Mount AV Signal Management
10 results
Applied filters
Clear all
MV0430
Broadcast and Live Events
- 4-channel 3G-SDI multi-viewer: 4x SD/HD/3G-SDI in, 2x 3G-SDI out, 1x HDMI type A out
- 16 preset layouts including quad split, full screen, triple, Picture-in-Picture, and Picture-by-Picture; output scaling and frame rate conversion via DIP
- 11-character UMD, 2-channel audio meter from 16 embedded SDI pairs, input info OSD, and coloured borders
- Control via DIP switches, USB keyboard, or PC software over LAN (UDP, port 7000) with API; 2 custom presets
From €289 / £259
SD1121-12G
Broadcast and Live Events
- 1x2 12G-SDI signal repeater: 1x 12G-SDI BNC in, 2x 12G-SDI BNC out; automatically detects SD, HD, 3G, 6G, and 12G-SDI
- DVB-ASI compatible; automatic cable equalization and signal retiming (long-reach SDI up to 12G 60 m, 3G 120 m per Belden-class coax)
- Passes embedded audio and ancillary data on both outputs
- 5 V USB Type-C power (1 W typical); detachable wall-mount bracket included
From €199 / £179

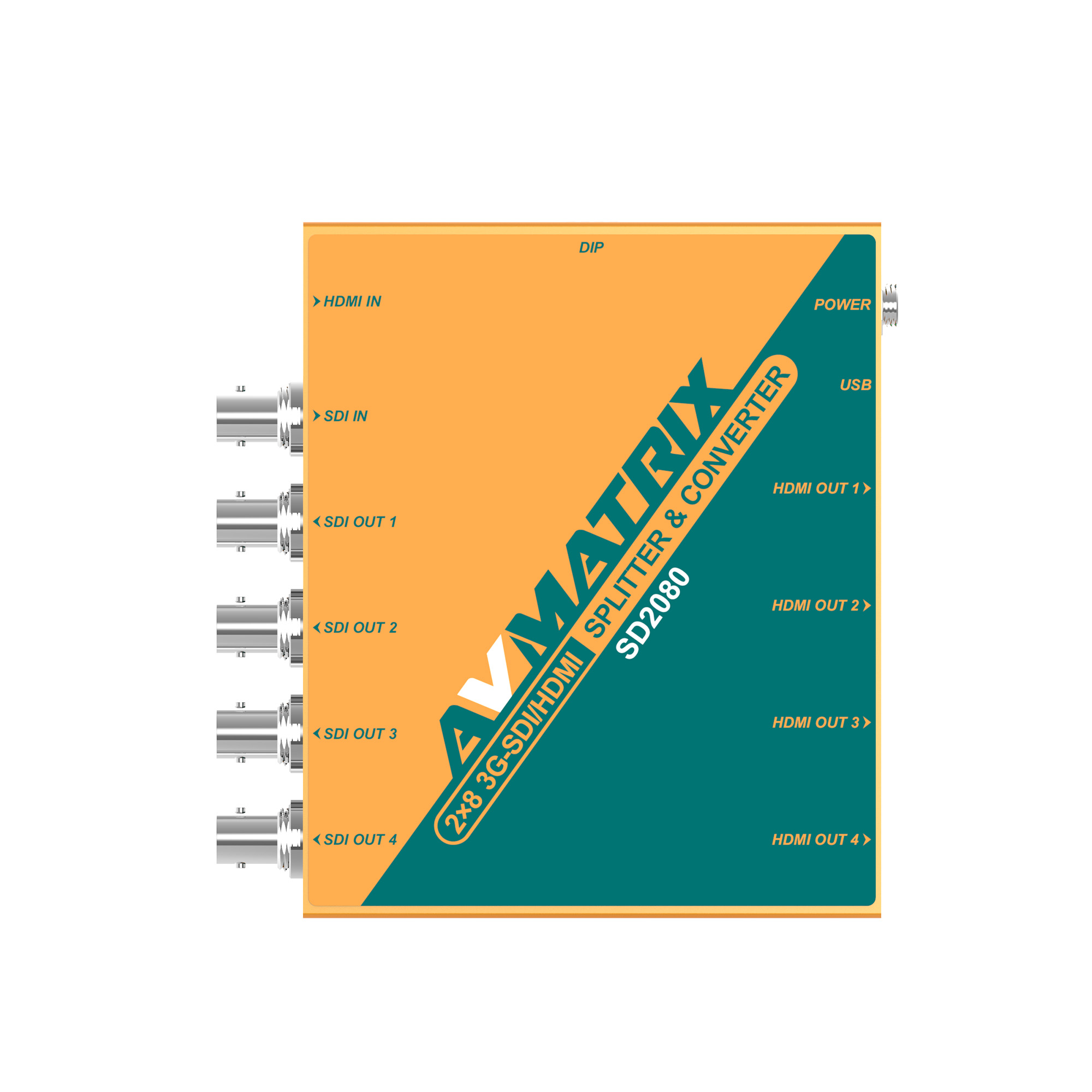

SD2080
Broadcast and Live Events
- 2x8 3G-SDI/HDMI splitter and converter: 1x HDMI type A in, 1x SD/HD/3G-SDI in, 4x HDMI out, 4x SDI out
- Distribute and convert between SDI and HDMI; selected input is sent to all eight outputs simultaneously, up to 1080p60
- Auto-detects HDMI and SD/HD/3G-SDI input; SDI equalization and re-clock; DIP SW1 selects HDMI or SDI input
- USB Type-C 5 V or threaded locking DC 6 to 28 V; 6.6 W (DC) / 7.5 W (USB); 12V 2A power supply included
From €299 / £269
SC1112
Broadcast and Live Events
- 3G-SDI to HDMI mini converter: 1x SD/HD/3G-SDI BNC in, 1x SDI loop out, 1x HDMI type A out
- Pocket-size broadcast converter with full-size SDI and HDMI connectors for convenient field and studio use
- Auto-detects SD, HD, and 3G-SDI Level A/B on input up to 1080p60; YUV 4:2:2 colour space on SDI and HDMI
- SDI formats: 525i/625i, 720p, 1080i, 1080pSF, and 1080p; HDMI output: 480i/576i, 720p, 1080i, and 1080p
From €79 / £69

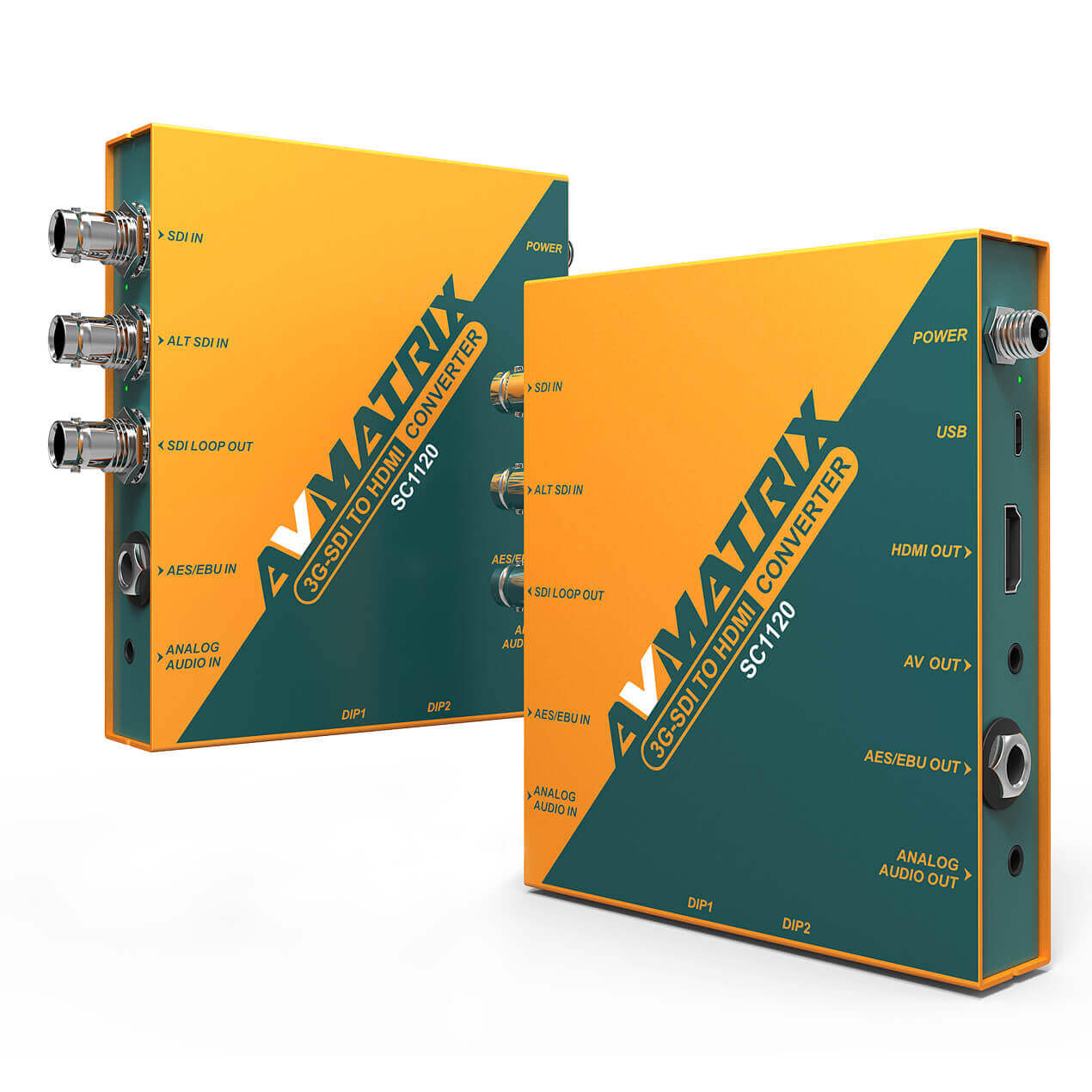

SC1120
Broadcast and Live Events
- 3G-SDI to HDMI scaling converter: 1x SD/HD/3G-SDI BNC in, 1x alt/redundant SDI in, 1x SDI loop out, 1x HDMI type A out, 1x 3.5 mm AV out
- Pass-through or up/down scaling and frame rate conversion on HDMI; de-interlacing and seamless conversion
- AES/EBU and analog audio embedding to HDMI, and de-embedding of any SDI audio pair to AES/EBU and analog out
- Configuration via DIP switches or PC software over Micro USB; HDMI colour space RGB 4:4:4, YUV 4:2:2, YUV 4:4:4
From €199 / £179
SC1221
Broadcast and Live Events
- HDMI to 3G-SDI mini converter: 1x HDMI type A in, 2x SD/HD/3G-SDI BNC out
- Pocket-size broadcast converter with full-size HDMI and SDI connectors for convenient field and studio use
- Converts full HD 1080p60 HDMI to professional SDI; selectable SD/HD/3G-SDI output rate
- HDMI input: YUV 4:2:2/4:4:4 and RGB 4:4:4; SDI output: YUV 4:2:2
From €79 / £69

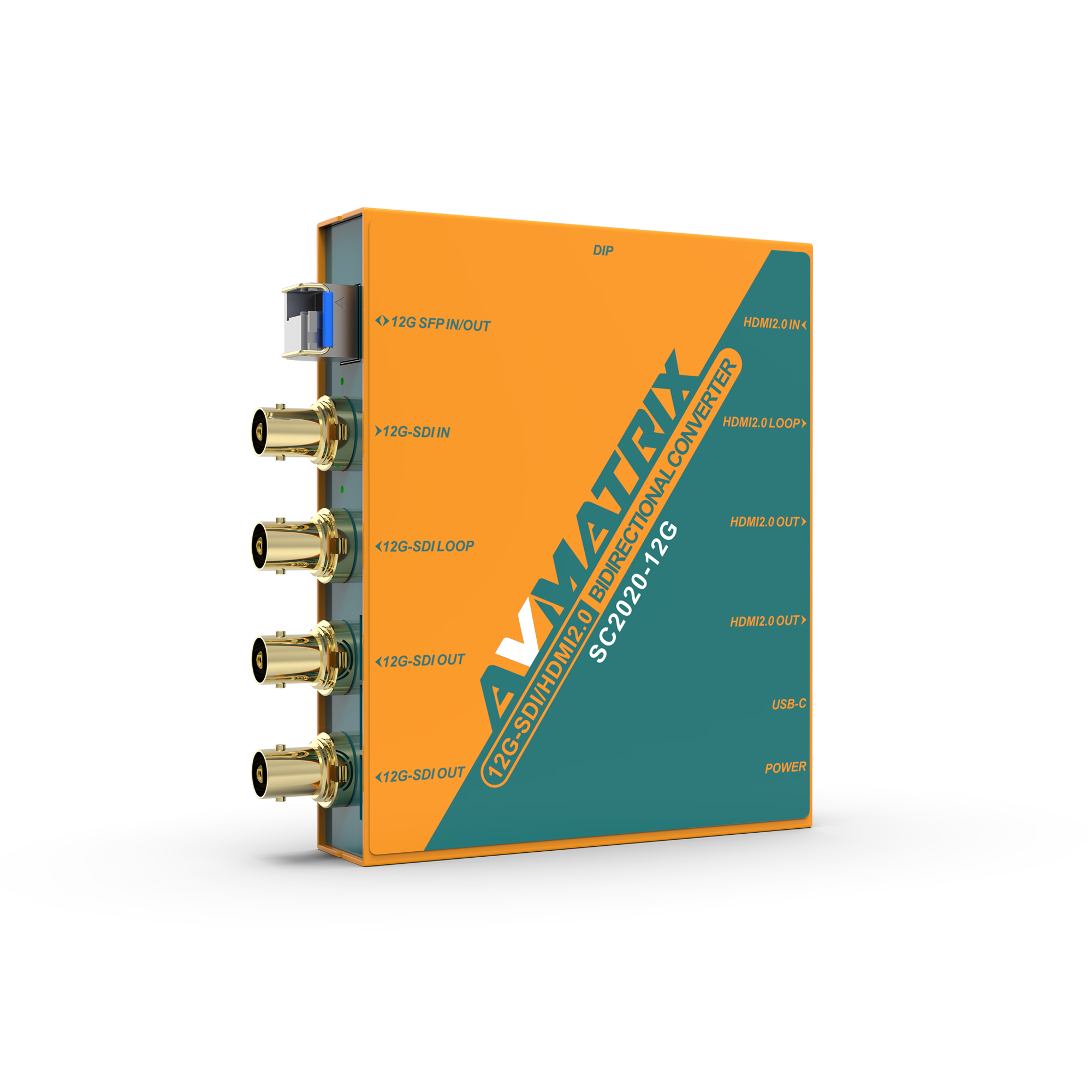

SC2020-12G
Broadcast and Live Events
- 12G-SDI to HDMI 2.0 bidirectional converter: 1x HDMI 2.0 in, 1x 12G-SDI or 12G SFP fiber in (select 1 of 2), HDMI and SDI loop outs, 2x HDMI 2.0 out, 2x 12G-SDI out, 1x 12G fiber out
- Up to 4K60 (2160p, 1080p, 1080i, 720p); 4K60 to 4K30 conversion via DIP; 3G-SDI Level A or Level B output
- Optional SFP module transceiver for fiber transmission up to 10 km; SFP 12G or 6G selectable
- HDMI colour space Full/Limited RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0; Rec.709 and Rec.2020
From €279 / £249
SC2030
Broadcast and Live Events
- SDI/HDMI up/down cross converter: 1x SD/HD/3G-SDI BNC in, 1x HDMI type A in, 2x SDI out, 1x HDMI out
- Up/down scaling and frame rate conversion with selectable SDI/HDMI output formats through 1080p60
- Analog audio embedding from 3.5 mm input, or pass-through from SDI/HDMI embedded audio
- Configuration via DIP switches or PC software over Micro USB
SC2040
Broadcast and Live Events
- 3G-SDI/HDMI bidirectional converter: 1x HDMI in, 1x SD/HD/3G-SDI or SFP fiber in (select 1 of 2), HDMI and SDI loop outs, 2x SDI out, 1x HDMI out, 1x SFP fiber out
- Up/down scaling and frame rate conversion with selectable SDI/HDMI output formats through 1080p60; 24 processing modes across HDMI, SDI, and fiber
- Optional bidirectional 3G video SFP (MSA Type) fiber transmission up to 20 km
- Analog audio embedding and de-embedding via 3.5 mm in/out; built-in test pattern and audio tone generator; horizontal and vertical image flip
SC7030
Broadcast and Live Events
- Multi-signal to HDMI/SDI cross converter: 1x SD/HD/3G-SDI BNC in, 1x HDMI type A in, 1x DVI-I/VGA in, 1x S-Video/CVBS/YPbPr in, 2x SDI out, 1x HDMI out
- Up/down scaling and frame rate conversion with selectable SDI/HDMI output formats through 1080p60; 4:3 or 16:9 aspect conversion
- Analog audio embedding from 3.5 mm input, or pass-through from SDI/HDMI embedded audio
- 1080i hardware deinterlacing; HDMI output Full or Limited RGB; 3G-SDI Level A or Level B output
From €299 / £269
Compare our 3G-SDI Wall Mount AV Signal Management products in more detail.
| Technical Data | MV0430 View product | SD1121-12G View product | SD2080 View product | SC1112 View product | SC1120 View product | SC1221 View product | SC2020-12G View product | SC2030 View product | SC2040 View product | SC7030 View product |
|---|---|---|---|---|---|---|---|---|---|---|
| Connections | ||||||||||
| Video inputs | 4x SD/HD/3G-SDI (75Ω BNC) | 1x SD/HD/3G/6G/12G-SDI (BNC) | 1x HDMI type A, 1x SD/HD/3G-SDI (BNC) | 1x SD/HD/3G-SDI (75Ω BNC) | 1x SD/HD/3G-SDI (75Ω BNC), 1x SD/HD/3G-SDI alt/redundant (75Ω BNC) | 1x HDMI type A | 1x HDMI 2.0 type A, 1x 12G-SDI (75Ω BNC) or 1x 12G SFP fiber (select 1 of 2) | 1x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A | 1x HDMI type A, 1x SD/HD/3G-SDI (75Ω BNC) or 1x SFP fiber (select 1 of 2) | 1x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A, 1x DVI-I/VGA, 1x S-Video/CVBS/YPbPr |
| Video outputs | 2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A | 2x SD/HD/3G/6G/12G-SDI/DVB-ASI (BNC) | 4x HDMI type A, 4x SD/HD/3G-SDI (BNC) | 1x SD/HD/3G-SDI loop out (75Ω BNC), 1x HDMI type A | 1x SD/HD/3G-SDI loop out (75Ω BNC), 1x HDMI type A, 1x 3.5 mm AV out | 2x SD/HD/3G-SDI (75Ω BNC) | 1x HDMI 2.0 loop out, 2x HDMI 2.0 type A, 1x 12G-SDI loop out, 2x 12G-SDI (75Ω BNC), 1x 12G SFP fiber | 2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A | 1x HDMI loop out, 1x HDMI type A, 1x SD/HD/3G-SDI loop out, 2x SD/HD/3G-SDI (75Ω BNC), 1x SFP fiber | 2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A |
| Multiview outputs | 2x 3G-SDI (75Ω BNC), 1x HDMI type A | — | — | — | — | — | — | — | — | — |
| Audio | 3G-SDI embedded; 2-channel audio meter selectable from 16 pairs | SDI embedded audio and ancillary data pass-through | — | — | 1x 6.35 mm AES/EBU digital audio in, 1x 6.35 mm AES/EBU digital audio out, 1x 3.5 mm analog audio in, 1x 3.5 mm analog audio out | — | — | 1x 3.5 mm analog audio in | 1x 3.5 mm analog audio in, 1x 3.5 mm analog audio out | 1x 3.5 mm analog audio in |
| Network | 1x LAN (RJ45; configuration, firmware updates, and PC software) | — | — | — | — | — | — | — | — | — |
| Other interfaces | USB keyboard | — | — | — | 1x Micro USB (updates and configuration) | — | 1x USB Type-C (upgrade and PC software control) | — | — | — |
| Power input | — | 1x USB Type-C (5 V) | 1x DC threaded locking connector (6 to 28 V), 1x USB Type-C (5 V) | 1x USB Type-C (3.3 to 5 V) | 1x DC threaded locking connector | 1x USB Type-C (3.3 to 5 V) | 1x DC threaded locking connector (5 to 24 V) | 2x DC threaded locking connector (6 to 23 V), 1x Micro USB (3.3 to 5 V) | 1x DC threaded locking connector (9 to 24 V), 1x USB Type-C (5 V; upgrade, power and control) | 1x DC threaded locking connector (6 to 24 V), 1x USB Type-C (5 V; firmware update, power and control) |
| Fiber interface | — | — | — | — | — | — | 1x SFP module slot (optional 12G video SFP), Bidirectional fiber I/O; up to 10 km | — | 1x SFP module slot (optional 3G video SFP, MSA Type), Bidirectional fiber I/O; up to 20 km | — |
| Video Standards | ||||||||||
| 3G-SDI input (multiviewer) | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | — | — | — | — | — | — | — | — | — |
| 3G-SDI/HDMI output | 1080p 24/25/30/50/60, 1080i 50/60, 720p 25/30/50/60 | — | — | — | — | — | — | — | — | — |
| 3G-SDI compliance (multiviewer) | SMPTE 292M, SMPTE 259M, SMPTE 424M, SMPTE 352M, SMPTE 296M | — | — | — | — | — | — | — | — | — |
| Colour space (multiviewer) | Input: YUV or RGB; Output: YUV | — | — | — | — | — | — | — | — | — |
| 3G-SDI | — | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 2048 x 1080p 23.98/24/25/29.97/30, 2048 x 1080pSF 23.98/24/25/29.97/30, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 2048 x 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 625i 50, 525i 59.94 | 1080p 50/59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 |
| 12G-SDI | — | 2160p 23.98/24/25/29.97/30, 4096 x 2160 23.98/24/25/29.97/30, 2160p 47.95/48/50/59.94/60, 4096 x 2160 47.95/48/50/59.94/60, 1080p 47.95/48/50/59.94/60, 2048 x 1080p 47.95/48/50/59.94/60 | — | — | — | — | 2160p up to 60, 1080p, 1080i, 720p | — | — | — |
| 3G-SDI compliance | — | SMPTE ST-2081, SMPTE ST-2082, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 274M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, DVB-ASI | SMPTE 292M, SMPTE 259M, SMPTE 424M | SMPTE 259M, SMPTE 292M, SMPTE 424M | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M, SMPTE 424M | SMPTE 259M, SMPTE 292M, SMPTE 424M | 3G Level A and Level B | 3G Level A and Level B; SMPTE 259M, SMPTE 292M, SMPTE 424M | 3G Level A and Level B | 3G Level A and Level B |
| Colour space | — | RGB 4:4:4 10/12-bit; YUV 4:2:2/4:4:4 10/12-bit; XYZ 4:4:4 12-bit | YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI) | YUV 4:2:2 (SDI and HDMI) | YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI) | YUV 4:2:2/4:4:4 and RGB 4:4:4 (HDMI input); YUV 4:2:2 (SDI output) | Full RGB 4:4:4, Limited RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 (HDMI) | YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI input) | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2 (HDMI output) | SDI: YUV 4:2:2 10-bit in/out; HDMI in: RGB 4:4:4 8/10/12-bit, YUV 4:2:2 8/10/12-bit, YUV 4:4:4 8/10/12-bit; HDMI out: RGB 4:4:4 8-bit (Full or Limited) |
| Cable equalization (max cable) | — | SD 400 m, HD 200 m, 3G 120 m, 12G 60 m | — | — | — | — | — | — | — | — |
| Format auto-detection | — | Auto-detects SD, HD, 3G, 6G, and 12G-SDI; DVB-ASI compatible | Auto-detects HDMI and SD/HD/3G-SDI input | Auto-detects SD, HD, and 3G-SDI Level A/B on input | Auto-detects SD, HD, and 3G-SDI on input | — | Auto-detects HD, 3G, 6G, and 12G input (LED: green HD, blue 3G, yellow 6G, purple 12G) | — | — | — |
| HDMI | — | — | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 576i 50, 480i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 576i 50, 480i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94/60 | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 576i 50, 480i 59.94/60 | — | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576p 50, 576i 50, 480i 59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 1280x768p 60, 720p 23.98/24/25/29.97/30/50/59.94/60 |
| HDMI 2.0 | — | — | — | — | — | — | 2160p up to 60, 1080p, 1080i, 720p | — | — | — |
| SDI output rate | — | — | SD/HD/3G-SDI | — | SD/HD/3G-SDI (loop) | SD/HD/3G-SDI selectable | HD/3G/6G/12G-SDI; SFP 12G or 6G selectable | SD/HD/3G-SDI | SD/HD/3G-SDI | SD/HD/3G-SDI |
| S-Video/CVBS | — | — | — | — | NTSC, PAL | — | — | — | — | NTSC, PAL, SECAM |
| Deinterlacing | — | — | — | — | Yes | — | — | — | — | 1080i hardware deinterlacing |
| SFP | — | — | — | — | — | — | 2160p up to 60, 1080p, 1080i, 720p | — | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94 | — |
| Max fiber distance | — | — | — | — | — | — | 10 km (optional SFP) | — | 20 km (optional SFP) | — |
| DVI/VGA | — | — | — | — | — | — | — | — | — | VGA: 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 768, 1280 x 720, 1280 x 600, 1152 x 864, 1024 x 768, 800 x 600, 640 x 480, 720 x 400 (up to 60 Hz); DVI: 1920 x 1080, 1280 x 720 (up to 60 Hz) |
| YPbPr | — | — | — | — | — | — | — | — | — | 1080p, 1080i, 720p, 576p, 480p, 576i, 480i |
| Switching | ||||||||||
| 3G-SDI auto switching | — | — | — | — | Auto-detects SD, HD, and 3G-SDI on input; alt SDI input switches over if main is lost | — | — | — | — | — |
| Seamless switching | — | — | — | — | Seamless conversion to avoid jitter | — | — | — | — | — |
| Operational Features | ||||||||||
| Multi Viewer | Picture-by-Picture, Picture-in-Picture, Three-Way Split, Quad-View | — | — | — | — | — | — | — | — | — |
| DIP switches | Output format and scaling, 16 layouts (quad, Picture-in-Picture, Picture-by-Picture, full screen), audio meter pair and overlay, UMD, status overlay, and custom presets | — | 4x; SW1 selects HDMI or SDI input; SW2–SW4 reserved | — | DIP1 (scaling, audio embed/de-embed, HDMI colour space) and DIP2 (AV NTSC/PAL, status overlay, PC custom settings) | — | 10x for SDI/HDMI source, SDI/SFP in, 4K60 to 4K30, SFP direction, SFP 12G/6G, HDMI colour space, 3G Level A/B, and DIP vs PC control | 4x for output control | — | 12x for output format, input select, analog vs embedded audio, 16:9/4:3 aspect, HDMI Full/Limited RGB, 3G Level A/B, and DIP vs PC control |
| Front panel | DIP switches; USB keyboard | — | — | — | — | — | — | — | — | — |
| Control interfaces | LAN (RJ45), UDP, port 7000, USB keyboard | — | — | — | — | — | — | — | — | — |
| Custom presets | 2 user-defined configurations (Custom1, Custom2) | — | — | — | — | — | — | — | — | — |
| Remote control | PC software via LAN | — | — | — | PC software via Micro USB | — | PC software via USB Type-C | PC software via Micro USB | PC software via USB Type-C | PC software via USB Type-C |
| Scaler | Output scaling and frame rate conversion via DIP (SDI and HDMI) | — | — | — | Up/down scaling with selectable HDMI output formats through 1080p60 | — | 4K60 to 4K30 conversion via DIP | Up/down scaling with selectable SDI/HDMI output formats through 1080p60 | Up/down scaling with selectable SDI/HDMI output formats through 1080p60 | Up/down scaling with selectable SDI/HDMI output formats through 1080p60 |
| Frame rate conversion | Yes — selectable SDI and HDMI output format via DIP | — | — | — | Yes — via DIP switches (pass-through or selectable HDMI output format) | — | 4K60 to 4K30 via DIP | Yes — via selectable output format (up/down scaling and frame rate conversion) | Yes — via selectable output format (up/down scaling and frame rate conversion) | Yes — via selectable output format (up/down scaling and frame rate conversion) |
| Cross conversion | — | — | SDI → HDMI or HDMI → SDI (DIP-selectable input); selected input is distributed to 4x SDI and 4x HDMI simultaneously | — | SDI → HDMI and AV; pass-through or up/down scaling and frame rate conversion; selectable HDMI output through 1080p60 | — | Bidirectional 12G-SDI ↔ HDMI 2.0 ↔ fiber (SDI/SFP select 1 of 2); selectable HDMI and SDI/SFP output sources | SDI → HDMI or HDMI → SDI (selectable input); up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60 | Bidirectional SDI ↔ HDMI ↔ fiber (selectable sources); up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60 | SDI, HDMI, DVI-I/VGA, CVBS, S-Video, or YPbPr → 2x SDI and 1x HDMI; up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60 |
| SDI distribution | — | — | 1 in, 4 out (plus 4x HDMI converted) | — | — | — | 1 in, 3 out (loop + 2x 12G-SDI out) | 1 in, 2 out | 1 in, 3 out (loop + 2x SDI out) | 1 in, 2 out |
| Front panel control | — | — | 4x DIP switches | — | DIP switches; PC software via Micro USB | — | DIP switches; PC software via USB Type-C | 4x DIP switches; PC software via Micro USB | LCD status display with 4 buttons; PC software via USB Type-C | 12x DIP switches; PC software via USB Type-C |
| Audio embedding | — | — | — | — | SDI CH1-8, SDI CH9-16, AES/EBU, or analog audio to HDMI | — | — | 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio | 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio | 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio |
| Audio de-embedding | — | — | — | — | Any pair of SDI 16-channel audio to AES/EBU and analog out | — | — | — | 1x 3.5 mm analog audio out | — |
| OSD | — | — | — | — | Input/output format and audio embed/de-embed status overlay (DIP selectable) | — | — | — | — | — |
| HDMI fibre extender | — | — | — | — | — | — | TX and RX (SFP optional) | — | TX and RX (SFP optional) | — |
| SDI fibre extender | — | — | — | — | — | — | TX and RX (SFP optional) | — | TX and RX (SFP optional) | — |
| Selectable colour spaces | — | — | — | — | — | — | Rec.709, Rec.2020 | — | — | Full RGB, Limited RGB |
| Aspect ratio conversion | — | — | — | — | — | — | — | SD up-conversion aspect via DIP switches | SD/HD aspect conversion (anamorphic, letterbox, pillarbox, zoom) | 4:3 or 16:9 via DIP switches |
| Image mirroring | — | — | — | — | — | — | — | — | Horizontal, vertical, and horizontal+vertical flip on SDI and HDMI outputs | — |
| Audio pair rearrangement | — | — | — | — | — | — | — | — | Yes — HDMI (4 stereo pairs) and SDI (8 stereo pairs) output remapping | — |
| Test pattern generator | — | — | — | — | — | — | — | — | 23 professional test patterns and audio tones | — |
| Frame counter and circle overlay | — | — | — | — | — | — | — | — | Dynamic circle and frame-count overlays on test pattern output | — |
| Menu control | — | — | — | — | — | — | — | — | LCD status display with 4 buttons | — |
| Power | ||||||||||
| Input voltage | DC 6 to 24 V | 5 V USB Type-C | USB 5 V; DC 6 to 28 V | DC 3.3 to 5 V USB Type-C | DC 6 to 24 V | DC 3.3 to 5 V USB Type-C | DC 5 to 24 V | USB 3.3 to 5 V; DC 6 to 23 V | USB-C 5 V; DC 9 to 24 V | USB-C 5 V; DC 6 to 24 V |
| Power consumption | 6 W | 1 W | 6.6 W (DC); 7.5 W (USB) | 1.5 W | 6 W | 2 W | 15 W | 4 W | 7 W | ≤5.5 W |
| Environmental | ||||||||||
| Operating temperature | -20°C to 60°C (HDMI output 0°C to 60°C) | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Storage temperature | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C |
| Relative humidity | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | — | 0% to 90% non-condensing | — | 20% to 90% non-condensing |
| Mechanical | ||||||||||
| Dimensions | 125.5 x 104 x 24.5 mm | 105.5 x 41 x 23 mm | 125.5 x 104 x 24.5 mm | 71 x 41 x 23 mm | 125.5 x 104 x 24.5 mm | 71 x 41 x 23 mm | 104 x 125.5 x 24.5 mm | 125.5 x 104 x 24.5 mm | 104 x 125.5 x 24.5 mm | 104 x 125.5 x 24.5 mm |
| Weight | 512 g | 156 g | 485 g | 168 g | 465 g | 168 g | 590 g | 485 g | 517 g | 496 g |
| Mounting | ||||||||||
| Wall mount | Detachable mounting brackets included | Detachable wall mounting bracket included | Detachable mounting brackets included | Detachable mounting bracket included | Detachable mounting brackets included | Detachable mounting bracket included | Mounting bracket (optional) | Detachable mounting brackets included | Mounting bracket (optional) | Mounting bracket (optional) |
| Other | ||||||||||
| Warranty | 3 years limited | 3 years limited | — | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited |
| Multiviewer | ||||||||||
| Layouts | 16 presets including quad split, full screen, triple windows, Picture-in-Picture, and Picture-by-Picture | — | — | — | — | — | — | — | — | — |
| Full screen | Full screen any input, or quad view, via USB keyboard | — | — | — | — | — | — | — | — | — |
| Overlays | UMD (11 characters), Audio meter, Input information (OSD), Border | — | — | — | — | — | — | — | — | — |
