7 inch Interactive Displays

4 results

Applied filters Clear all

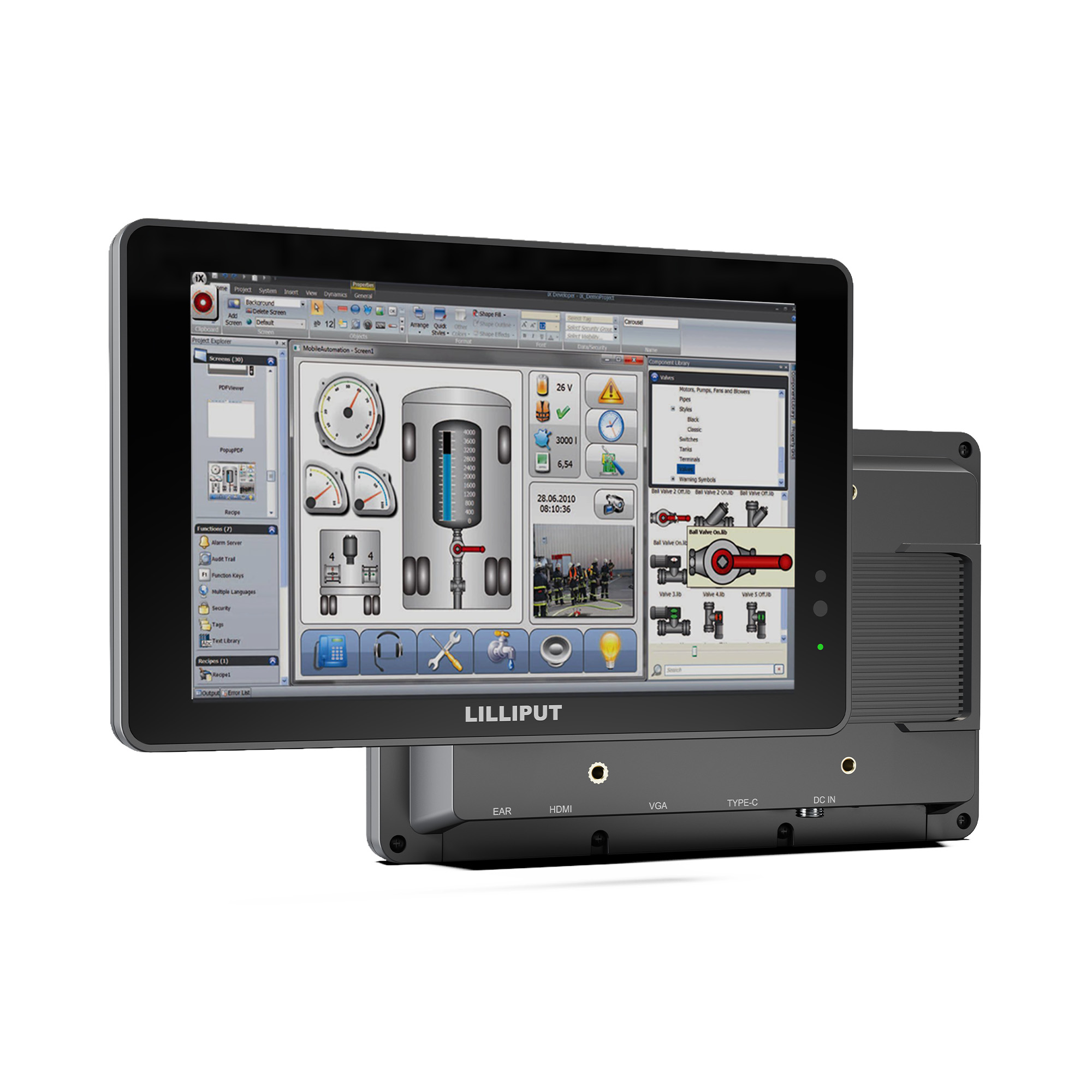

719

719

7 inch 1280 x 800 LCD, 1000 cd/m², 800:1 contrast, 16:10

  • 7 inch
  • 16:10
  • 1280 x 800
  • 1000 cd/m²
  • 800:1
  • PCAP
  • IP65
  • HDMI
  • VGA

From €239 / £209
TK701

TK701

7 inch open frame touch screen monitor

  • 7 inch
  • 16:10
  • 800 x 480
  • 1000 cd/m²
  • 500:1
  • PCAP
  • IP64
  • HDMI 1.4
  • VGA
  • Composite

From €209 / £179

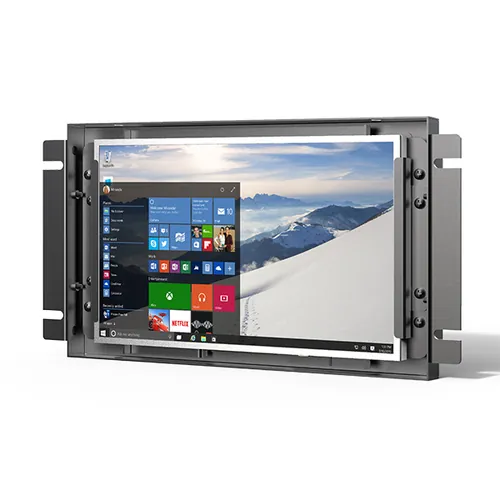

TK700

TK700

7 inch open frame touch screen monitor

  • 7 inch
  • 16:9
  • 800 x 480
  • 1000 cd/m²
  • 1000:1
  • Resistive
  • HDMI
  • VGA
  • Composite
UM70

UM70

7 inch 800 x 480 LCD, 250 cd/m², 500:1 contrast, 16:9

  • 7 inch
  • 16:9
  • 800 x 480
  • 250 cd/m²
  • 500:1
  • Resistive

Compare our 7 inch Interactive Displays products in more detail.

Technical Data 719 View product TK701 View product TK700 View product UM70 View product
Display
Screen size 7 inch 7 inch 7 inch 7 inch
Aspect ratio 16:10 16:10 16:9 16:9
Native resolution 1280 x 800 800 x 480 800 x 480 800 x 480
Panel type LCD LCD LCD LCD
Brightness 1000 cd/m² 1000 cd/m² 1000 cd/m² 250 cd/m²
Contrast 800:1 500:1 1000:1 500:1
Viewing angle 170°/170° (H/V) 140°/120° (H/V) 140°/120° (H/V) 140°/120° (H/V)
LED lifetime 50,000 h — — —
Touch screen 10-point PCAP (optional) 10-point PCAP (optional) 4-wire resistive (optional) 4-wire resistive (optional)
Connections
Video inputs 1x HDMI, 1x VGA 1x HDMI 1.4b, 1x VGA, 2x Video (RCA) 1x HDMI, 1x VGA, 2x Composite (RCA) 1x USB Type-A
Audio 1x Built-in speaker, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit) 1x Built-in speaker, HDMI 2ch, 3.5 mm ear jack (2ch 48kHz 24-bit), 3.5 mm audio input 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit) —
Additional connections 1x USB-C (touch, video, power) (optional) 1x Mini USB (touch), 1x Micro USB (upgrade) (optional) — 1x USB (for touch) (optional)
Video Standards
HDMI 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 — 2160p 24/25/30, 1080p 50/60, 1080i 50/60, 720p 50/60 —
HDMI 1.4b — 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 — —
VGA 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 — —
Operational Features
Sensors Ambient light auto-dimming — — —
Power
Input voltage DC 9 to 36V DC 12 to 24V DC 12V DC 5V (USB)
Power consumption ≤8.5 W (12V) ≤8.5 W (12V) ≤4.5 W ≤4.5 W
Environmental
IP rating IP65 (with optional IP65 frame) IP64 front panel (IEC60529) — —
Operating temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C
Storage temperature -30°C to 80°C -30°C to 70°C -30°C to 70°C -30°C to 70°C
Mechanical
Dimensions 184.5 x 118.8 x 32 mm 210 x 131 x 34.2 mm 226.8 x 124 x 34.7 mm 188 x 123 x 25.8 mm
Weight 410 g (560 g with IP65 frame, optional) 710 g 970 g 385 g
Open frame — — 279.6 x 195.5 x 36.1 mm, 950 g (optional) —
Mounting
VESA mount 75 x 75 mm — — —
Mounting Screws — 4x Wall Mount Screws — —
View 719 View TK701 View TK700 View UM70
