HD Interactive Displays

15 results

Applied filters Clear all

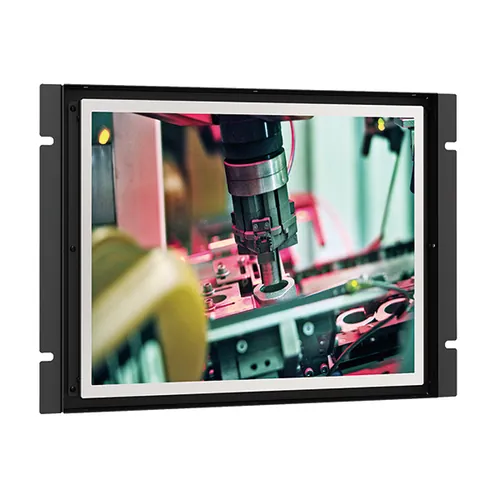

TK1500

TK1500

15 inch open frame touch screen monitor

  • 15 inch
  • 4:3
  • 1024 x 768
  • 1000 cd/m²
  • 1500:1
  • Resistive
  • HDMI
  • VGA
  • Composite
719

719

7 inch 1280 x 800 LCD, 1000 cd/m², 800:1 contrast, 16:10

  • 7 inch
  • 16:10
  • 1280 x 800
  • 1000 cd/m²
  • 800:1
  • PCAP
  • IP65
  • HDMI
  • VGA

From €239 / £209

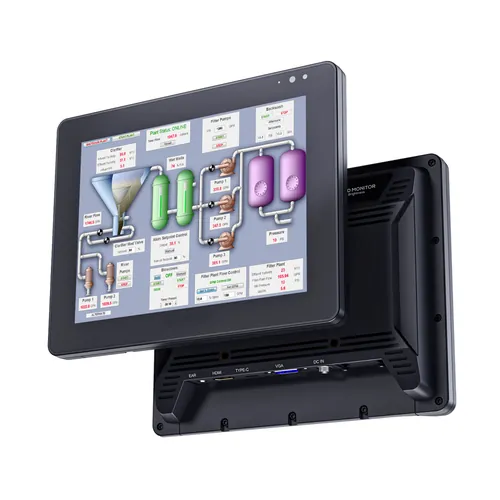

819

819

8 inch 1280 x 768 LCD, 1000 cd/m², 800:1 contrast, 4:3

  • 8 inch
  • 4:3
  • 1280 x 768
  • 1000 cd/m²
  • 800:1
  • PCAP
  • IP65
  • Anti-glare
  • Anti-fingerprint
  • HDMI
  • VGA

From €249 / £219
TK701

TK701

7 inch open frame touch screen monitor

  • 7 inch
  • 16:10
  • 800 x 480
  • 1000 cd/m²
  • 500:1
  • PCAP
  • IP64
  • HDMI 1.4
  • VGA
  • Composite

From €209 / £179
TK700

TK700

7 inch open frame touch screen monitor

  • 7 inch
  • 16:9
  • 800 x 480
  • 1000 cd/m²
  • 1000:1
  • Resistive
  • HDMI
  • VGA
  • Composite

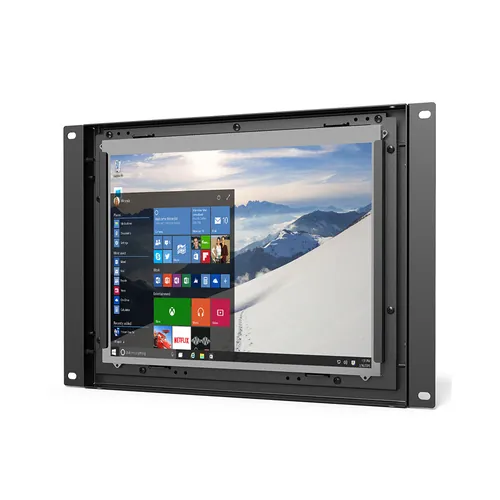

TK970

TK970

9.7 inch open frame touch screen monitor

  • 9.7 inch
  • 4:3
  • 1024 x 768
  • 350 cd/m²
  • 900:1
  • Resistive
  • HDMI
  • VGA
  • Composite

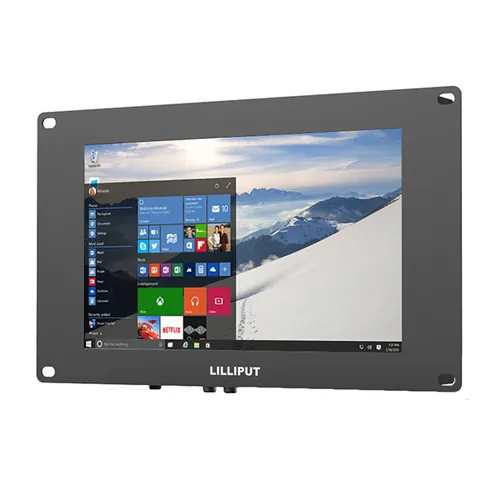

TK1010

TK1010

10.1 inch open frame touch screen monitor

  • 10.1 inch
  • 16:9
  • 1024 x 600
  • 250 cd/m²
  • 500:1
  • Resistive
  • HDMI
  • VGA
  • Composite

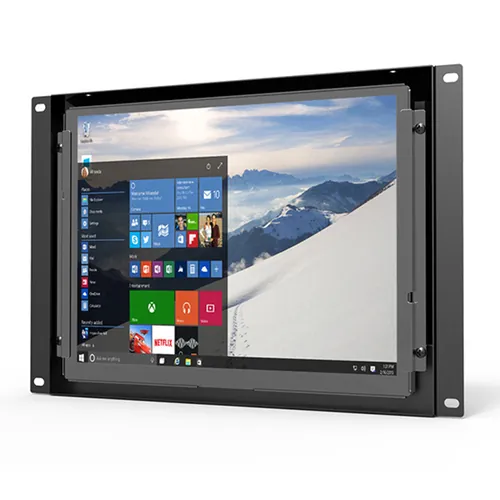

TK1040

TK1040

10.4 inch open frame touch screen monitor

  • 10.4 inch
  • 4:3
  • 800 x 600
  • 250 cd/m²
  • 400:1
  • Resistive
  • HDMI
  • VGA
  • Composite
FA1014

FA1014

10.1 inch 1280 x 800 LCD, 350 cd/m², 800:1 contrast, 16:10

  • 10.1 inch
  • 16:10
  • 1280 x 800
  • 350 cd/m²
  • 800:1
  • PCAP
  • HDMI
  • VGA
  • Composite

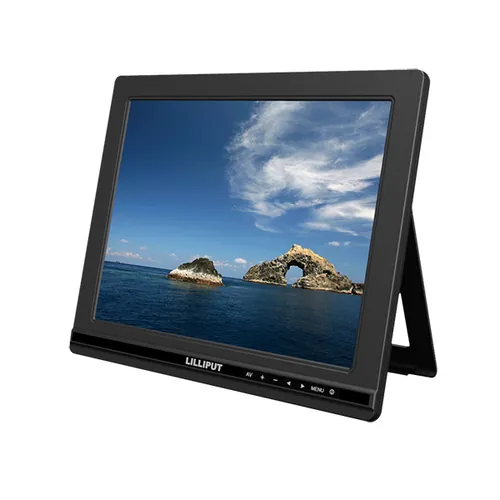

FA1000

FA1000

9.7 inch 1024 x 768 LCD, 420 cd/m², 900:1 contrast, 4:3

  • 9.7 inch
  • 4:3
  • 1024 x 768
  • 420 cd/m²
  • 900:1
  • Resistive
  • HDMI
  • VGA
  • Composite
UM70

UM70

7 inch 800 x 480 LCD, 250 cd/m², 500:1 contrast, 16:9

  • 7 inch
  • 16:9
  • 800 x 480
  • 250 cd/m²
  • 500:1
  • Resistive

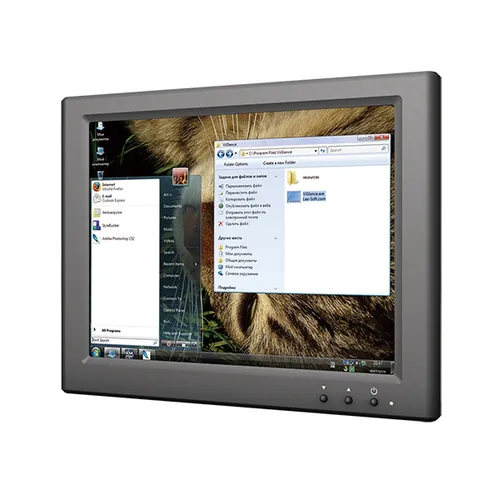

UM80

UM80

8 inch 800 x 480 LCD, 250 cd/m², 500:1 contrast, 4:3

  • 8 inch
  • 4:3
  • 800 x 480
  • 250 cd/m²
  • 500:1
  • Resistive

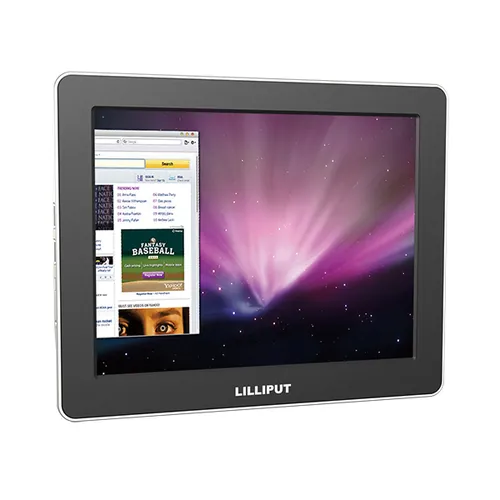

UM900

UM900

9.7 inch 1024 x 768 LCD, 300 cd/m², 600:1 contrast, 4:3

  • 9.7 inch
  • 4:3
  • 1024 x 768
  • 300 cd/m²
  • 600:1
  • Resistive
  • HDMI 1.4
UM1010

UM1010

10.1 inch 1024 x 600 LCD, 250 cd/m², 500:1 contrast, 16:10

  • 10.1 inch
  • 16:10
  • 1024 x 600
  • 250 cd/m²
  • 500:1
  • Resistive

From €189 / £169
FA1210

FA1210

12.1 inch 1024 x 768 LCD, 900 cd/m², 900:1 contrast, 4:3

  • 12.1 inch
  • 4:3
  • 1024 x 768
  • 900 cd/m²
  • 900:1
  • PCAP
  • HDMI 1.4
  • VGA
  • Composite

Compare our HD Interactive Displays products in more detail.

Technical Data TK1500 View product 719 View product 819 View product TK701 View product TK700 View product TK970 View product TK1010 View product TK1040 View product FA1014 View product FA1000 View product UM70 View product UM80 View product
Display
Screen size 15 inch 7 inch 8 inch 7 inch 7 inch 9.7 inch 10.1 inch 10.4 inch 10.1 inch 9.7 inch 7 inch 8 inch
Aspect ratio 4:3 16:10 4:3 16:10 16:9 4:3 16:9 4:3 16:10 4:3 16:9 4:3
Native resolution 1024 x 768 1280 x 800 1280 x 768 800 x 480 800 x 480 1024 x 768 1024 x 600 800 x 600 1280 x 800 1024 x 768 800 x 480 800 x 480
Panel type LCD LCD LCD LCD LCD LCD LCD LCD LCD LCD LCD LCD
Brightness 1000 cd/m² 1000 cd/m² 1000 cd/m² 1000 cd/m² 1000 cd/m² 350 cd/m² 250 cd/m² 250 cd/m² 350 cd/m² 420 cd/m² 250 cd/m² 250 cd/m²
Contrast 1500:1 800:1 800:1 500:1 1000:1 900:1 500:1 400:1 800:1 900:1 500:1 500:1
Viewing angle 45°/45° (L/R), 10°/90° (U/D) 170°/170° (H/V) 170°/170° (H/V) 140°/120° (H/V) 140°/120° (H/V) 174°/174° (H/V) 140°/110° (H/V) 130°/110° (H/V) 170°/170° (H/V) 160°/174° (H/V) 140°/120° (H/V) 140°/120° (H/V)
Touch screen 5-wire resistive (optional) 10-point PCAP (optional) 10-point PCAP (optional) 10-point PCAP (optional) 4-wire resistive (optional) 5-wire resistive (optional) 4-wire resistive (optional) 5-wire resistive (optional) 10-point PCAP (optional) 5-wire resistive (optional) 4-wire resistive (optional) 4-wire resistive (optional)
LED lifetime — 50,000 h 50,000 h — — — — — — — — —
Optional coating — — Anti-glare, anti-fingerprint — — — — — — — — —
Connections
Video inputs 1x HDMI, 1x DVI, 1x VGA, 1x Composite (RCA) 1x HDMI, 1x VGA 1x HDMI, 1x VGA, 1x USB Type-C (not available with IP65 frame, optional) 1x HDMI 1.4b, 1x VGA, 2x Video (RCA) 1x HDMI, 1x VGA, 2x Composite (RCA) 1x HDMI, 1x DVI, 1x VGA, 1x Composite (RCA) 1x HDMI, 1x DVI, 1x VGA, 1x Composite (RCA) 1x HDMI, 1x DVI, 1x VGA, 1x YPbPr, 2x Composite (RCA) 1x HDMI, 1x VGA, 1x Composite 1x HDMI, 1x VGA, 2x Composite 1x USB Type-A 1x USB Type-A
Audio 1x Built-in speaker 1x Built-in speaker, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit) 1x Built-in speaker, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit) 1x Built-in speaker, HDMI 2ch, 3.5 mm ear jack (2ch 48kHz 24-bit), 3.5 mm audio input 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit) 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit) 2x Built-in speakers, 3.5 mm ear jack (2ch 48kHz 24-bit) 2x Built-in speakers, 3.5 mm ear jack (2ch 48kHz 24-bit) 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit) 1x Built-in speaker, 3.5 mm ear jack — —
Additional connections — 1x USB-C (touch, video, power) (optional) 1x USB-A (for touch) (optional) 1x Mini USB (touch), 1x Micro USB (upgrade) (optional) — — — — — 1x Mini USB (for touch) (optional) 1x USB (for touch) (optional) 1x USB (for touch) (optional)
Video Standards
HDMI 1080p 50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 — 2160p 24/25/30, 1080p 50/60, 1080i 50/60, 720p 50/60 1080p 50/60, 1080i 50/60, 720p 50/60 1080p 50/60, 1080i 50/60, 720p 50/60 1080p 50/60, 1080i 50/60, 720p 50/60 1080p 50/60, 1080i 50/60, 720p 50/60 1080p 50/60, 1080i 50/60, 720p 50/60 — —
HDMI 1.4b — — — 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 — — — — — — — —
VGA — 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 — — — — 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 — —
USB Type-C — — 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 — — — — — — — — —
Composite — — — — — — — — 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 — —
Operational Features
Sensors — Ambient light auto-dimming Ambient light auto-dimming — — — — — — — — —
Markers — — — — — — — — Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off — — —
Power
Input voltage DC 12V DC 9 to 36V DC 9 to 36V DC 12 to 24V DC 12V DC 7 to 24V DC 7 to 24V DC 12V DC 7 to 24V DC 7 to 24V DC 5V (USB) DC 5V (USB)
Power consumption ≤15 W ≤8.5 W (12V) ≤11 W (12V) ≤8.5 W (12V) ≤4.5 W ≤10 W ≤5.5 W ≤8 W ≤10 W ≤10 W ≤4.5 W ≤4.5 W
Environmental
Operating temperature -20°C to 60°C -20°C to 60°C -25°C to 75°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C 0°C to 50°C -20°C to 60°C -20°C to 60°C -20°C to 60°C
Storage temperature -30°C to 70°C -30°C to 80°C -35°C to 85°C -30°C to 70°C -30°C to 70°C -30°C to 70°C -30°C to 70°C -30°C to 70°C -20°C to 60°C -30°C to 70°C -30°C to 70°C -30°C to 70°C
IP rating — IP65 (with optional IP65 frame) IP65 (with optional IP65 frame) IP64 front panel (IEC60529) — — — — — — — —
Mechanical
Dimensions 402 x 289 x 45.5 mm (panel) 184.5 x 118.8 x 32 mm 205 x 164.5 x 33 mm 210 x 131 x 34.2 mm 226.8 x 124 x 34.7 mm 279.6 x 203.5 x 37.6 mm 295 x 175 x 33.5 mm 286.8 x 202.8 x 38.8 mm 250 x 170 x 32.3 mm 234.4 x 192.5 x 29 mm 188 x 123 x 25.8 mm 200 x 156 x 25 mm
Weight 3.2 kg 410 g (560 g with IP65 frame, optional) 750 g (780 g with IP65 frame, optional) 710 g 970 g 1.6 kg 1.4 kg 1.7 kg 560 g 625 g 385 g 536 g
Open frame 400 x 279 x 43.5 mm (optional) — — — 279.6 x 195.5 x 36.1 mm, 950 g (optional) 279.6 x 195.5 x 36.1 mm, 1.3 kg (optional) — — — — — —
Mounting
VESA mount — 75 x 75 mm 75 x 75 mm — — — — — — 75 x 75 mm — 75 x 75 mm
Mounting Screws — — — 4x Wall Mount Screws — — — — — — — —
Control
I/O — — — — — — — — 1 — — —
View TK1500 View 719 View 819 View TK701 View TK700 View TK970 View TK1010 View TK1040 View FA1014 View FA1000 View UM70 View UM80
